倍福新品资讯

处理器内核加速模式为计算性能带来极大的飞跃 — TwinCAT Core Boost 助力提高实时计算能力

新型 TwinCAT Runtime 基于倍福的 Linux^® 发行版

CX5300 嵌入式控制器搭载了性能更强的 Intel Atom^® x6 系列处理器，相比 CX5200 系列，性能得到了显著提升。

C6043 是一款高性能设备，内置了用于插入高性能显卡的插槽，它的推出进一步完善了超紧凑型工业 PC 的产品范围。通过搭载新一代 Intel^® Core™ 处理器与 NVIDIA^® 并行计算显卡芯片，PC 成为适合用于超复杂应用的中央控制单元。这些应用包括对 3D 图形或深度集成的机器视觉和 AI 程序块有较高要求且周期时间极短的应用。倍福 TwinCAT 3 控制软件能够将其映射为一个全集成的解决方案，无需任何额外的软件或接口。通过增加可自由分配的 PCIe 紧凑型模块插槽，C6043 可以通过添加功能的方式灵活扩展。

The C6670-0020 industrial server is equipped with two Intel^® Xeon^® scalable processors from the 5th generation with up to 32 cores per CPU and a memory of 128 to 1,024 GB DDR5 RAM. This makes it ideal for machine controls, for example with the XPlanar planar motor system. The C6670-0020 can be ordered with M.2 NVMe SSDs up to 640 GB and up to two hard disks with 1, 2, or 4 TB. It also features five free PCIe slots for EtherCAT or Ethernet fieldbus cards or similar.

The built-in panel PC is equipped with Intel Atom^® x6 series processors.

面板型 PC 搭载 Intel Atom^® x6 系列处理器。

平板电脑配有 100 x 100 安装臂，配备英特尔 Atom^® x6 系列处理器。

EL3008-0003 专用于测量最大 1000 V CAT II 的叠加电压，如蓄电池和燃料电池中的电压。一个电池的负极也是下一个电池的正极。这些端子模块与 E-bus 端子模块之间存在高度电气隔离，可用于记录大型电池堆，且接线最少。这样就能在正常运行时监控电池的行为，并在出现故障时快速做出反应。

EL3072、EL3074 和 EL3078 模拟量输入端子用于记录 10 V / 20 mA 标准信号，分辨率为 16 位，每秒最多可测量 2000 个值。每个通道都可通过控制器/TwinCAT 单独进行参数设置；可以使用每个通道测量 -10...+10 V、0...+10 V、-20...+20 mA、0...+20 mA 和 4...+20 mA 范围内的信号。在电气方面，电压和电流信号应连接到不同的端子模块接点。电压和电流输入是单端，这意味着每个通道的一个连接点都连接到端子模块的 +24 V 或 GND，且不再需要单独接线。该端子模块支持 ±107 % 扩展量程 ，也支持在量程内根据 NAMUR NE43 标准处理传感器信号。

针对支持 HART 的现场设备的模拟量输入端子模块 EL3184 用于给现场测量传感器供电，并在电气隔离的情况下将模拟测量信号传输给自动化设备。端子模块技术上的量程是额定量程的 107%，还支持在极限量程内调试传感器值，并支持根据 NAMUR NE43 进行评估。

模拟量输入端子模块 EL3314-0092 可以直接连接 4 个二线制热电偶。通道相互之间以及与 E-bus 之间都电气隔离，因此可有效防止交叉电流造成的干扰和损坏。它支持不同类型的热电偶，并在端子模块内进行电压/温度转换。该端子模块也可也可用于测量毫伏级电压。断线状态由故障 LED 以及过程数据指示。冷端补偿可通过精确测量所连接端子模块的内部温度实现，也支持外部冷端补偿方式。

模拟量输入端子模块 EL3361 可直接连接 1 个四线制或六线制电阻桥（应变计）或称重传感器。它可以测定电桥电压 UD 和供电电压 UREF 之间的比值，并根据端子模块中的设置将负载值作为过程值进行计算。从而能够以每秒 10,000 次的采样速率高精度测量重量、扭矩和振动等数据。

模拟量输入端子模块 EL3361-0100 可直接连接 1 个四线制或六线制电阻桥（应变计）或称重传感器。它可以测定电桥电压 UD 和供电电压 UREF 之间的比值，并根据端子模块中的设置将负载值作为过程值进行计算。从而能够以每秒 10,000 次的采样速率高精度测量重量、扭矩和振动等数据。端子模块从电源触点取电为电桥直接供电。

模拟量输入端子模块 EL3362 可直接连接四线制或六线制电阻桥（应变计）或称重传感器。它可以测定电桥电压 UD 和供电电压 UREF 之间的比值，并根据端子模块中的设置将负载值作为过程值进行计算。从而能够以每秒 10,000 次的采样速率高精度测量重量、扭矩和振动等数据。

模拟量输入端子模块 EL3362-0100 可直接连接四线制或六线制电阻桥（应变计）或称重传感器。它可以测定电桥电压 UD 和供电电压 UREF 之间的比值，并根据端子模块中的设置将负载值作为过程值进行计算。从而能够以每秒 10,000 次的采样速率高精度测量重量、扭矩和振动等数据。端子模块从电源触点取电为电桥直接供电。

EL4072、EL4074 和 EL4078 模拟量输出端子模块可输出 10 V/20 mA 标准信号，分辨率为 16 位，每秒最多可输出 2000 个数值。每个通道都可以通过控制器/TwinCAT 单独进行参数设置。每个通道可输出 ±10 V 和 ±20 mA 范围内的所有大家所熟悉的标准信号，例如 4...20 mA。电流输出支持高阻值负载，具有过载、断线或电压输出短路故障诊断功能。电压和电流输入是单端，这意味着每个通道的一个连接点都连接到端子模块的 +24 V 或 GND，且不再需要单独接线。EL4072 和 EL4074 具有 24 V/0 V 触点，用于为执行器供电。这些通道支持 ±107 % 扩展量程，甚至可以传输非常规设定点，例如用于故障报告目的。

EL4072、EL4074 和 EL4078 模拟量输出端子模块可输出 10 V/20 mA 标准信号，分辨率为 16 位，每秒最多可输出 2000 个数值。每个通道都可以通过控制器/TwinCAT 单独进行参数设置。每个通道可输出 ±10 V 和 ±20 mA 范围内的所有大家所熟悉的标准信号，例如 4...20 mA。电流输出支持高阻值负载，具有过载、断线或电压输出短路故障诊断功能。电压和电流输入是单端，这意味着每个通道的一个连接点都连接到端子模块的 +24 V 或 GND，且不再需要单独接线。EL4072 和 EL4074 具有 24 V/0 V 触点，用于为执行器供电。这些通道支持 ±107 % 扩展量程，甚至可以传输非常规设定点，例如用于故障报告目的。

EL4072、EL4074 和 EL4078 模拟量输出端子模块可输出 10 V/20 mA 标准信号，分辨率为 16 位，每秒最多可输出 2000 个数值。每个通道都可以通过控制器/TwinCAT 单独进行参数设置。每个通道可输出 ±10 V 和 ±20 mA 范围内的所有大家所熟悉的标准信号，例如 4...20 mA。电流输出支持高阻值负载，具有过载、断线或电压输出短路故障诊断功能。电压和电流输入是单端，这意味着每个通道的一个连接点都连接到端子模块的 +24 V 或 GND，且不再需要单独接线。EL4072 和 EL4074 具有 24 V/0 V 触点，用于为执行器供电。这些通道支持 ±107 % 扩展量程，甚至可以传输非常规设定点，例如用于故障报告目的。

EL4374 模拟量输入端子模块由两个模拟量输入和两个模拟量输出组成，它们可通过 TwinCAT（通过 CoE）对电流或电压模式单独进行参数设置。视具体的设置而定，通道以 2 ksps 的速度处理 -10/0 到 +10 V 之间或 -20/0/+4 到 +20 mA 之间的信号。

EL5031-0011 用于直接连接带 EnDat 2.2 接口的编码器。双向接口可自动读取位置值、诊断数据、内部和外部温度值以及编码器的电子铭牌。EL5031-0011 的特点是能够基于超采样原理处理分辨率更高的位置值。 它还提供了 5 V（或可选 9 V）编码器供电。丰富的功能还能够经济高效、快捷地实现调试。

EL6184 提供 4 个接口，用于集成支持 HART 的现场设备。EtherCAT 端子模块可作为二级主站，并可无缝集成到现有的互联互通系统中。例如，可以从现场设备中检索维护和诊断数据，如NAMUR 开放式架构 (NOA) 就是这种情况。

EL9501 电源端子模块通过 24 V DC 输入电压产生可调输出电压。因此，它适合为需要低于通常 24 V 电压的传感器或设备供电。它也可以像模拟量输出端子模块一样用于仿真缓慢变化的信号，但输出功率远大于 20 mA 通道。运行状态通过 LED 和过程数据输出。诊断功能包括输出电流和输出电压，因此可以将端子模块集成到外部控制回路中——例如，减少负载效应。

EL9561 电源端子模块通过 24 V DC 输入电压产生可调输出电压。因此，它适合为需要低于通常 24 V 电压的传感器或设备供电。它也可以像模拟量输出端子模块一样用于仿真缓慢变化的信号，但输出功率远大于 20 mA 通道。运行状态通过 LED 和过程数据输出。诊断功能包括输出电流和输出电压，因此可以将端子模块集成到外部控制回路中——例如，减少负载效应。

EL9562 电源端子模块从 24 V DC 输入电压产生两个电气隔离输出电压。输出电压可在端子模块上以 0.2 A 的电流分接；它们彼此电气隔离，也与输入电压电气隔离。电源触点连成回路。电源 LED 指示端子模块的工作状态。将两个电压连接就能产生对称的 DC 电压。

EL9562-0015 电源端子模块可从 24 V DC 输入电压产生两个电气隔离的 15 V DC 输出电压。输出电压可在端子模块上以 0.3 A 的电流分接；它们彼此电气隔离，也与输入电压电气隔离。电源触点互相连接。电源 LED 指示端子模块的工作状态。将两个电压连接就能产生对称的 DC 电压。

基本系列的 EtherCAT 端子模块 ELM3102-0120 是 ELM3702-0101 的精简版本，具有电压和电流测量功能。它可测量 +60 V 至 -20 mV 和 ±20 mA 范围内的信号，每个通道的采样速率高达 20 kSps。由于通道之间电气隔离，它可以在复杂环境中高精度地测量不同或者波动电势的信号。

The EJ5101-0090 EtherCAT plug-in module is an interface for the direct connection of incremental encoders with differential signals (RS422) or TTL single ended signals via the signal distribution board. Two additional 24 V digital inputs are available for storing, blocking and setting the counter status. The error message output of an encoder can be connected and evaluated via the status input of the module. The encoder can be supplied with 5 V DC directly from the EtherCAT plug-in module.

The EP1258-0002 EtherCAT Box with digital inputs acquires binary control signals from the process level and transmits them to the controller under electrical isolation. Compared to the EP1258-0002, the EP1258-0502 offers higher performance thanks to the XFC multi-timestamping function. Timestamp technology allows signals to be precisely retraced over time. Whereas the EP1258-0002 can accept one edge change with timestamp per bus cycle, the EP1258-0502 offers the possibility to register up to 32 events with timestamps. The EP1258-0502 is synchronized with other EtherCAT devices through the distributed clocks system, so that events in the whole system can be measured with a uniform timebase. The signal connection is established via screw-type M12 connectors. Two channels are available per M12 socket.

The EP2534-0002 EtherCAT Box regulates the output current by pulse width control of the peripheral voltage on four channels. The current values ranging from 0 to a maximum output current of 2 A are specified by the automation device through a 16-bit value. The sum current of all outputs is limited to 4 A. The output stages are protected against overload and short circuit. The signal state of the channels is indicated by LEDs. The signal connection is established via screw-type M12 connectors. One channel is available per M12 socket.

The EP3744-2041 EtherCAT Box, with six digital inputs, two digital outputs, and four pressure inputs, acquires these signals and transmits them to the controller under electrical isolation. The signal status is indicated by LEDs, while the signal interface for the digital signals utilizes 4-pin M8 screw type connectors.

The EP3744-3041 EtherCAT Box, with six digital inputs, two digital outputs, and four pressure inputs, acquires these signals and transmits them to the controller under electrical isolation. The signal status is indicated by LEDs, while the signal interface for the digital signals utilizes 4-pin M8 screw type connectors.

The EP3751-0160 EtherCAT Box module features an internal ultra-low-noise 3-axis accelerometer with 20-bit resolution and a selectable measuring range of ±2 g, ±4 g, and ±8 g. The sampling frequency is 4 kHz. The built-in sensor is suitable for applications where low frequencies need to be monitored with the lowest possible noise. Potential applications include building monitoring, bridge monitoring, robotics, and condition monitoring.

The EP3754-0002 EtherCAT Box has four analog multifunctional inputs, which can be extensively parameterized on an individual basis:

The EP9214-0024 enables connection of four EtherCAT Box power supply branches. In each 24 V branch the current consumption for the control voltage US and the peripheral voltage UP is monitored, limited, and, if necessary, switched off.

The EP9224-0024 enables connection of four EtherCAT Box power supply branches. In each 24 V branch the current consumption for the control voltage US and the peripheral voltage UP is monitored, limited, and, if necessary, switched off.

The EP9320-0022 EtherCAT Box is the successor of the EP9300-0022. It connects PROFINET RT networks to the EtherCAT Box modules (EPxxxx, ERxxxx and EQxxxx) and converts the telegrams from PROFINET RT to EtherCAT. One station consists of an EP9320-0022 and any number of EtherCAT Box modules. The box is connected to PROFINET RT via a D-coded M12 socket (in/out). With EtherCAT, the PROFINET RT box can use the powerful and ultra-fast I/O system with its large selection of EtherCAT Box modules. The EP9320-0022 supports the PROFINET RT profile and seamlessly fits into PROFINET RT networks.

The EP6224-0522 IO-Link module enables the connection of up to four IO-Link devices. These can be actuators, sensors, or a combination of both. On the M12 sockets with the Class A ports, a digital input with timestamp is additionally available, which indicates the time of the last edge change with a resolution of 1 ns.

The PS9711-2410-0000 DC/DC converter is a voltage converter that operates with input voltages between 18 V DC and 35 V DC. It generates an output voltage of 24 V DC.

The PS9731-2410-0000 DC/DC converter is a voltage converter that operates with input voltages between 36 V DC and 60 V DC. It generates an output voltage of 24 V DC with 10 A.

The PS9771-2440-0000 DC/DC converter is a voltage converter that operates with input voltages between 475 V DC and 750 V DC. It generates an output voltage of 24 V DC with 40 A.

用于混合型连接器的新型千兆数据核心，速率高达 10 Gbit/s 和 500 MHz。

The AX8820 universal regenerative unit is used to feed regenerative energy back into the supply mains.

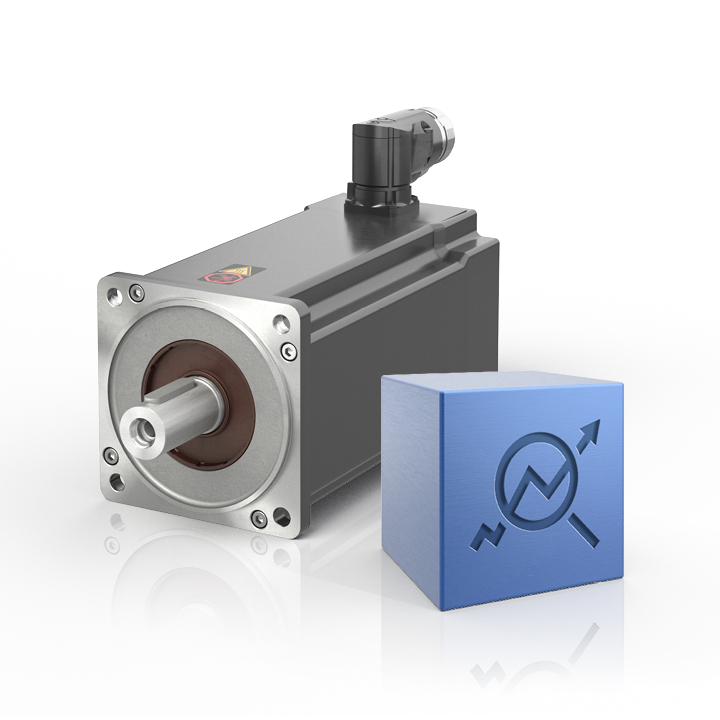

AM8300 系列水冷式同步伺服电机适用于对动态、速度和性能要求严苛的应用。

集成步进电机输出级的驱控一体步进电机适用于低电压无控制柜设备方案。

Integrated OCT feedback system makes using linear motors exceptionally easy

An axis module contains the DC link and the inverter for supplying the motor. Depending on the required number of axes, the axis modules are attached to the power supply module to form the multi-axis servo system. Axis modules with different ratings can be combined in order to enable an optimized design of the individual axes.

The AM8121 low-voltage servomotor is suitable for highly dynamic drive solutions in compact design in the voltage range of < 50 V DC. The standstill torque of the motor depends on the winding and is in the range of < 1.5 Nm. It is available with the OCT feedback system (absolute encoder). The low-voltage servomotor with flange code F2 (58 mm) and motor length 1 has a shaft diameter b = 9 k6 and a free shaft end of d = 20 mm.

The AM8123 low-voltage servomotor is suitable for highly dynamic drive solutions in compact design in the voltage range of < 50 V DC. The standstill torque of the motor depends on the winding and is in the range of < 1.5 Nm. It is available with the OCT feedback system (absolute encoder). The low-voltage servomotor with flange code F2 (58 mm) and motor length 3 has a shaft diameter b = 9 k6 and a free shaft end of d = 20 mm.

The integrated AMI8121 servo drive combines servomotor, output stage and fieldbus connection in a space-saving design in the voltage range of < 48 V DC. It is suitable for all motion requirements in the power range up to 400 W. The standstill torque of the motor is 0.5 Nm. The integrated servo drive with flange code F2 (58 mm) and motor length 1 has a shaft diameter b = 9 k6 and a free shaft end of d = 20 mm.

The AMP8620 module is directly connected to the mains supply, which minimizes the footprint and the cabling effort for the entire machine. It contains all required circuitry components, such as mains filters, rectifiers and charging circuits for the integrated DC link capacitors. Further distribution modules or decentralized AMP8000 Servo Drives can optionally be connected to the power supply module. It has two EtherCAT P outputs, through which either EtherCAT P modules can be supplied or else additional power supply modules can be connected that may be required for system expansion. The safe 24 V power supply unit integrated in the power supply module ensures that the logic power supply does not exceed the permissible level. The DC link capacitors integrated in the power supply module store the regenerative energy of the entire system and then make it available again for acceleration processes. This ensures the best-possible utilization of the energy supplied.

The AMP8620 module is directly connected to the mains supply, which minimizes the footprint and the cabling effort for the entire machine. It contains all required circuitry components, such as mains filters, rectifiers and charging circuits for the integrated DC link capacitors. Further distribution modules or decentralized AMP8000 Servo Drives can optionally be connected to the power supply module. It has two EtherCAT P outputs, through which either EtherCAT P modules can be supplied or else additional power supply modules can be connected that may be required for system expansion. The safe 24 V power supply unit integrated in the power supply module ensures that the logic power supply does not exceed the permissible level. The DC link capacitors integrated in the power supply module store the regenerative energy of the entire system and then make it available again for acceleration processes. This ensures the best-possible utilization of the energy supplied.

The AMP8620 module is directly connected to the mains supply, which minimizes the footprint and the cabling effort for the entire machine. It contains all required circuitry components, such as mains filters, rectifiers and charging circuits for the integrated DC link capacitors. Further distribution modules or decentralized AMP8000 Servo Drives can optionally be connected to the power supply module. It has two EtherCAT P outputs, through which either EtherCAT P modules can be supplied or else additional power supply modules can be connected that may be required for system expansion. The safe 24 V power supply unit integrated in the power supply module ensures that the logic power supply does not exceed the permissible level. The DC link capacitors integrated in the power supply module store the regenerative energy of the entire system and then make it available again for acceleration processes. This ensures the best-possible utilization of the energy supplied.

Via the AMP8805 distribution module, the AMP8000 system can be cascaded using just one short cable in such a way that even complex machines and lines can be implemented in simple topologies. Up to five outputs are available to connect further distributed Servo Drives or distribution modules. Because of their high protection rating, the AMP8805 distribution modules can be directly integrated into the machine layout. This reduces the overall cable lengths and wiring effort considerably, because only a single cable needs to be routed from the control cabinet to the machine. To store energy efficiently, the coupling modules are equipped with capacitors. Additional EtherCAT P Box modules can be installed easily and quickly via the integrated EtherCAT P output in order to integrate further I/Os or data acquisition applications.

ATRO 系统是一款独特的、采用模块化设计并且可自由拼接组合的工业机器人系统，并可完全集成到倍福自动化系统中。

The APS4244 XPlanar tile measures 320 mm x 320 mm, making it ideal for the two-way operation of APM43x0 movers (measuring 155 mm wide). The APS4244 can be combined with APS4224 or APS4242 as required. A minimum space requirement for corresponding XPlanar systems is guaranteed.

The APS4224 XPlanar tile measures 160 mm x 320 mm, making it ideal for the one-way operation of APM43x0 movers (measuring 155 mm wide). The long side of the tile is installed parallel to the Y axis of the system. A minimum space requirement for corresponding XPlanar systems is guaranteed.

The APS4242 XPlanar tile measures 320 mm x 160 mm, making it ideal for the one-way operation of APM43x0 movers (measuring 155 mm wide). The long side of the tile is installed parallel to the X axis of the system. A minimum space requirement for corresponding XPlanar systems is guaranteed.

AS2000 步进电机系列新增了配备 5 V 电源和 TTL/RS422 接口的增量编码器接口的型号。

The AX2090-PB13-0200 bellow kit protects the spindle of the AA3033 and AA3133 electric cylinder series from external environmental influences and raises the protection rating of the respective cylinder to up to IP65.

模块化设计和扩展组件助力提升自动化系统开发的灵活性

倍福近日为 TwinCAT XAE 开发环境开发出了一款 TwinCAT Chat 客户端。

TwinCAT MC3 是倍福最新一代运动控制软件解决方案。

新型 TwinCAT Runtime 基于倍福的 Linux^® 发行版

The TwinCAT 3 Analytics functions have been enhanced.

The TE1402 TwinCAT 3 Target for Embedded Coder^® is an extension of the TE1400 TwinCAT 3 Target for Simulink^®. Building on the existing capabilities of the TwinCAT 3 Target for Simulink^®, which uses the Simulink^® Coder (GRT target) from MathWorks for automatic code generation, the TE1402 also makes it possible to use the Embedded Coder^® (ERT target) from MathWorks. The TE1402 essentially leverages the functions of the TE1400 while also harnessing the properties of the Embedded Coder^® to achieve target platform specialization. For example, CPU-specific command extensions can be used to make models created on the Beckhoff Industrial PC run faster.

The TwinCAT 3 Simulation Runtime for FMI provides an interface for simulation tools that support the Functional Mockup Interface (FMI). The interface is based on the TwinCAT 3 UserMode Runtime, which can be accessed in sync from the simulation tool. This is exported to an FMU together with an interface description configured in TwinCAT, and can be imported into any simulation tool that supports the FMI interface as a co-simulation. Support is offered for both FMI 2.0 and 3.0. The TwinCAT project that is being executed in the FMU can also be part of the FMU; however, it is also possible to connect to this UM runtime with a TwinCAT engineering system and monitor or modify the code executed in the FMU in TwinCAT.

The TwinCAT 3 Machine Learning Creator automatically creates AI models based on data sets. These AI models can be optimized in terms of their accuracy and latency to ensure they run efficiently on Beckhoff Industrial PCs with TwinCAT products. The generated models can also still be used as standardized ONNX models beyond the Beckhoff product range. For use with TwinCAT products, a PLCopen XML with IEC 61131-3 code is created in addition to the ONNX file, which describes the complete AI pipeline and can be imported seamlessly into TwinCAT.

The TF2400 TwinCAT 3 HMI Audit Trail extension enables changes to the HMI operator and system events that have occurred to be securely recorded so that they can be traced chronologically. The entries are stored in a database and can be generated as a PDF report or exported in different formats (JSON, HTML, CSV). Electronic signatures allow a user to be reauthenticated with higher privileges. This product enables applications to be developed according to the provisions of FDA 21 CFR part 11, GAMP and GMP.

The TF2400 TwinCAT 3 HMI Audit Trail extension contains 250 audit trail symbols as standard. If more symbols need to be monitored, optional packages are available with TF24x0 to increase this number. The number at the end of the package name is the number of symbols that are included (e.g. the TF2430 TwinCAT 3 HMI Audit Trail Symbols Pack 1000 has 1000 additional symbols). The total number of audit trail symbols is calculated from the sum of the individual packages.

The TwinCAT 3 Machine Learning Server includes a connection to a local client as standard (local TwinCAT runtime). If (possibly further) TwinCAT runtimes need remote access to a TwinCAT 3 Machine Learning Server, these runtimes must each be equipped with a license for the TF3830 TwinCAT 3 Machine Learning Client.

Using the TwinCAT 3 CNC Axes Pack unlimited, extension is possible up to a total of 128 axes/controlled spindles, of which a maximum of 32 can be path axes and a maximum of 12 can be controlled spindles.

The TwinCAT 3 CNC Milling Base provides a comprehensive package of different cycles for triple-axis milling and drilling. It facilitates programming for these machines by encapsulating the required processes in parameterizable and reusable modules.

The TwinCAT 3 Vision Beckhoff Camera Connector offers the option of integrating Beckhoff cameras directly into the TwinCAT architecture. The cameras are configured in the same development environment as fieldbus components or axes. Triggered from real time, image acquisition and PLC or motion can be run with a high degree of synchronicity.

TwinCAT 3 Vision Code Quality complements the basic package with functions for quality evaluation of various 1D and 2D codes. Evaluation is carried out in accordance with the ISO/IEC 15415 and ISO/IEC 15416 standards.

TwinCAT 3 Vision OCR contains functions for optical character recognition (OCR). The functions identify characters in an image and return the recognized character string.

TwinCAT 3 Vision Neural Network provides an integrated machine learning (ML) solution for vision-specific use cases. The implementation of the machine learning models takes place in real time. With the help of these models, complex data analyses can be learned automatically. This means that complex, manually created program constructs can be replaced.

The MB3112-0000-0000 baseplate has 12 combined data and power slots. The first slot is intended for the EtherCAT connection. This slot can only be used by an IPC or coupler module. The further slots can be occupied with any 1-, 2- or 3-row modules. The baseplate has 6 connection points for the potential equalization.

The DC link power supply unit generates the DC link voltage for supplying the axis modules and the option modules from the mains voltage. It contains all of the circuit components required for this, such as line filters, rectifiers and charging circuits for the integrated DC link capacitors.

The axis module contains the DC link and the inverter for supplying the motor. Depending on the required number of axes, the axis modules are mounted on the baseplate behind the DC link power supply unit thus forming a multi-axis servo system. Axis modules of different ratings can be combined to enable an optimized design of the individual axes.

The MS1163-2201-3449 module is a 3-phase power supply module with input fuses and red main switch for up to 63 A. A power supply unit with an output current of 18 A DC is already integrated to supply the 24 V DC control voltage. Furthermore, typical energy data such as current, voltage, active power, cos φ and frequency are recorded with this module.

The MS6040-2100-2340 is a 48 V DC power supply with an output current of 40 A. In terms of the input, the module features a wide-range input, active power factor correction (PFC), and inrush current limitation. The output behavior and output power are individually adjustable. In addition, the power supply can feed energy back into the primary side supply.

The VUI20x0 is a complete unit with IP65/IP67 protection comprising a camera, illumination, and focusable optics complete with liquid lens technology. It generates high-quality monochrome images for industrial image processing applications. Power is supplied via EtherCAT P. As a full-featured device, the unit can be synchronized with all EtherCAT-based machine processes. The image data is transmitted to the higher-level controller with a bandwidth of 2.5 Gbit/s. The light color and pulse intensity of the integrated multicolor LED ring illumination can be adjusted to the product via the control. The focus is adjusted during runtime via the liquid lens control.

The VUI20x1 is a complete unit with IP65/IP67 protection comprising a camera, illumination, and focusable optics complete with liquid lens technology. It generates high-quality color images for industrial image processing applications. Power is supplied via EtherCAT P. As a full-featured device, the unit can be synchronized with all EtherCAT-based machine processes. The image data is transmitted to the higher-level controller with a bandwidth of 2.5 Gbit/s. The light color and pulse intensity of the integrated multicolor LED ring illumination can be adjusted to the product via the control. The focus is adjusted during runtime via the liquid lens control.

The VUI20x0 is a complete unit with IP65/IP67 protection comprising a camera, illumination, and focusable optics complete with liquid lens technology. It generates high-quality monochrome images for industrial image processing applications. Power is supplied via EtherCAT P. As a full-featured device, the unit can be synchronized with all EtherCAT-based machine processes. The image data is transmitted to the higher-level controller with a bandwidth of 2.5 Gbit/s. The light color and pulse intensity of the integrated multicolor LED ring illumination can be adjusted to the product via the control. The focus is adjusted during runtime via the liquid lens control.

The VUI20x1 is a complete unit with IP65/IP67 protection comprising a camera, illumination, and focusable optics complete with liquid lens technology. It generates high-quality color images for industrial image processing applications. Power is supplied via EtherCAT P. As a full-featured device, the unit can be synchronized with all EtherCAT-based machine processes. The image data is transmitted to the higher-level controller with a bandwidth of 2.5 Gbit/s. The light color and pulse intensity of the integrated multicolor LED ring illumination can be adjusted to the product via the control. The focus is adjusted during runtime via the liquid lens control.

The TwinCAT 3 Vision Beckhoff Camera Connector offers the option of integrating Beckhoff cameras directly into the TwinCAT architecture. The cameras are configured in the same development environment as fieldbus components or axes. Triggered from real time, image acquisition and PLC or motion can be run with a high degree of synchronicity.

TwinCAT 3 Vision Code Quality complements the basic package with functions for quality evaluation of various 1D and 2D codes. Evaluation is carried out in accordance with the ISO/IEC 15415 and ISO/IEC 15416 standards.

TwinCAT 3 Vision OCR contains functions for optical character recognition (OCR). The functions identify characters in an image and return the recognized character string.

TwinCAT 3 Vision Neural Network provides an integrated machine learning (ML) solution for vision-specific use cases. The implementation of the machine learning models takes place in real time. With the help of these models, complex data analyses can be learned automatically. This means that complex, manually created program constructs can be replaced.
