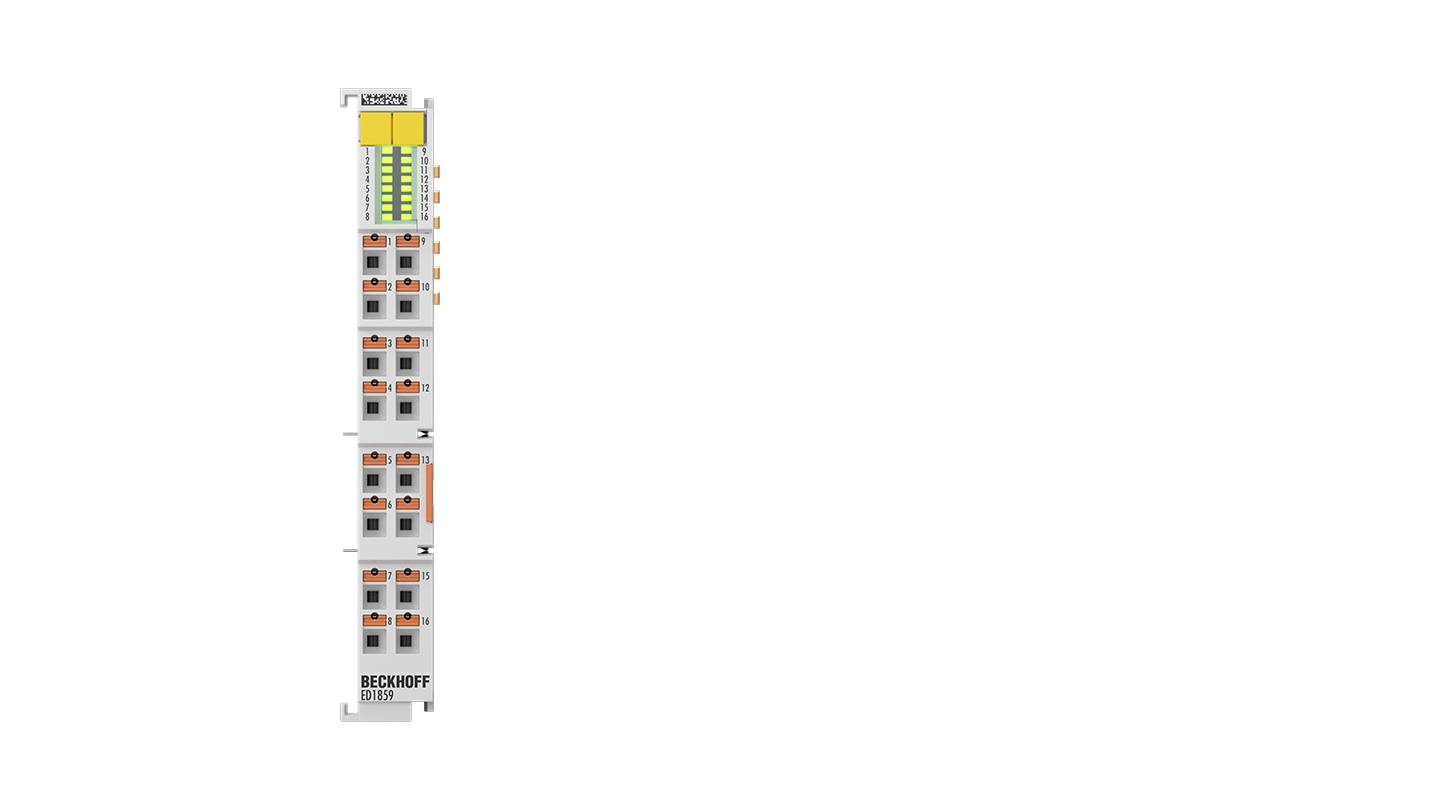

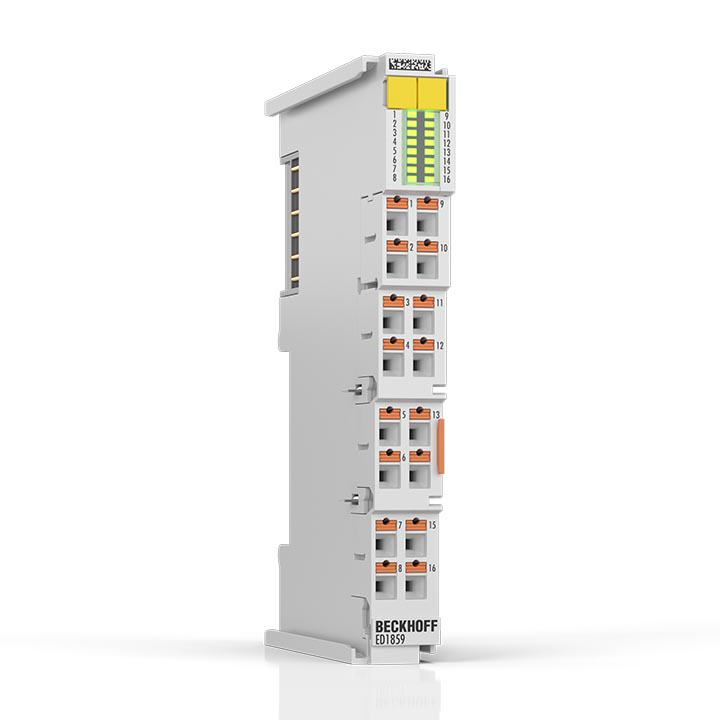

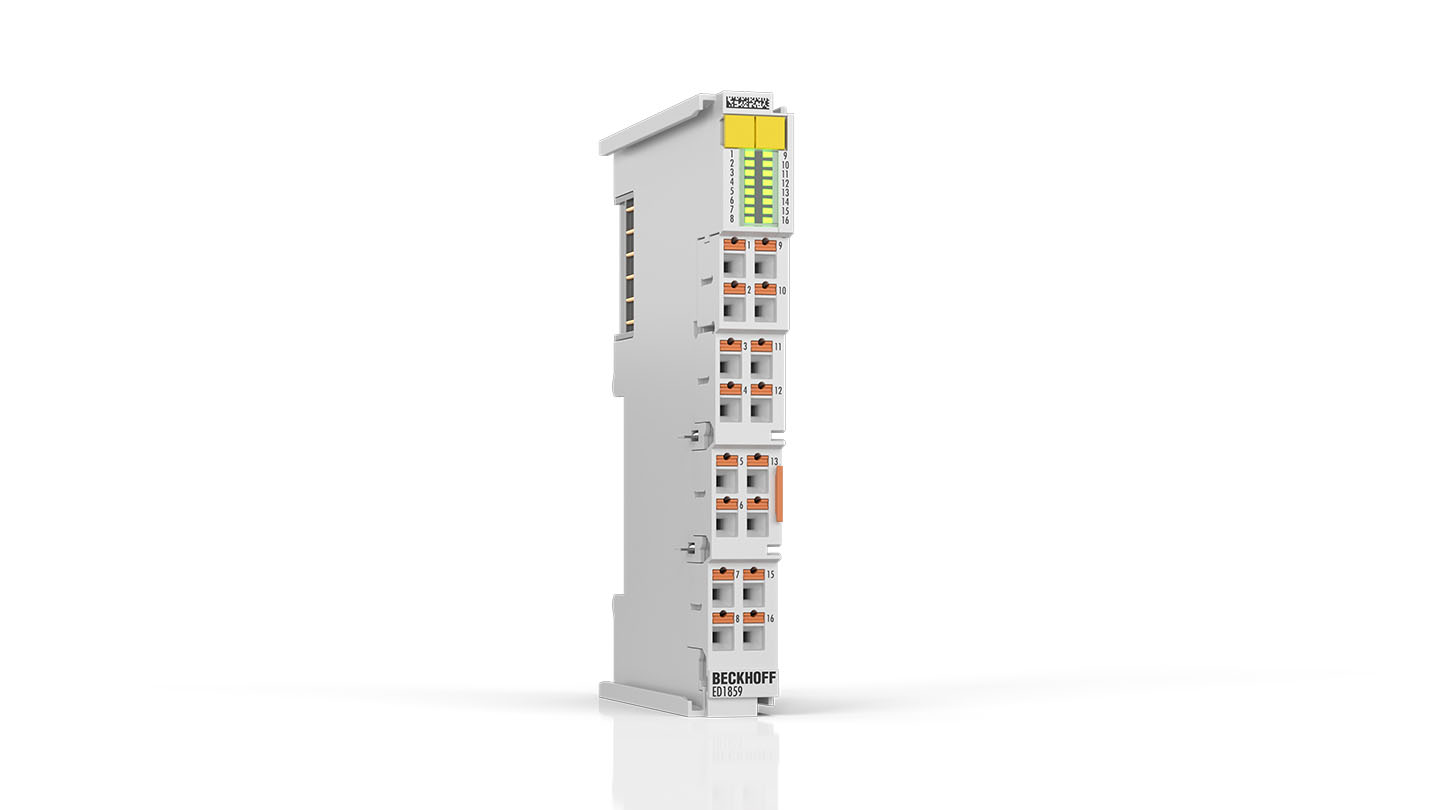

ED1859 | EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, push-in
ED1859 | EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, push-in
Ch. 2 DI
Ch. 3 DI
Ch. 4 DI
Ch. 5 DI
Ch. 6 DI
Ch. 7 DI
Ch. 8 DI
Ch. 2 DO
Ch. 3 DO
Ch. 4 DO
Ch. 5 DO
Ch. 6 DO
Ch. 7 DO
Ch. 8 DO
+24 V DC
0 V
ED1859 | EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, push-in
ED1859 | EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, push-in
The digital ED1859 EtherCAT Terminal combines eight digital inputs and eight digital outputs on a single device. The signal state of the channels is indicated by LEDs. The reference ground for all inputs is the 0 V power contact; the outputs are fed via the 24 V DC power contact.
Special features:
- compact design by combining inputs and outputs in one terminal
- no bouncing due to mechanical switches thanks to 3 ms input filter
- short-circuit proof and protected against polarity reversal with output current up to 0.5 A
The ED-series EtherCAT Terminals have push-in connection technology which makes wiring easy and tool-free.
Product status:
product announcement | estimated market release 4th quarter 2025
Product information
| General | ED1859 |
|---|---|
| Number of channels | Total | 16 |
| Internal communication protocol | EtherCAT |
| Digital input | ED1859 |
|---|---|
| Standard digital | Positive switching | |
| Number of channels | 8 |
| Connection technology | 1-wire |
| Signal range | Nominal | 24 V DC |
| Signal range | Technical | 20.4…28.8 V DC |
| Specification | EN 61131-2, type 1/3 |
| “0” signal voltage | -3…+5 V DC |
| “1” signal voltage | 11…30 V DC |
| Input filter | typ. 3 ms |
| Input current | typ. 3 mA |
| Digital output | ED1859 |
|---|---|
| Standard digital | Positive switching | |
| Number of channels | 8 |
| Load type | ohmic, inductive, capacitive |
| Connection technology | 1-wire |
| Signal range | Nominal | 24 V DC |
| Signal range | Technical | 20.4…28.8 V DC |
| Output current | max. 0.5 A per channel |
| Short-circuit proof | yes |
| Short circuit current limit | typ. < 2 A |
| Output stage | push |
| Switching times | TON | typ. 140 µs |
| Switching times | TOFF | typ. 300 µs |
| Reverse voltage protection | ja |
| Breaking energy | Inductive | < 150 mJ per channel |
| XFC | ED1859 |
|---|---|
| Distributed clocks | no |
| Timestamp | no |
| Oversampling | no |
| Supply and electrical isolation | ED1859 |
|---|---|
| Electronics | Supply voltage | via E-bus, via power contacts |
| E-bus | Current consumption | typ. 85 mA |
| Power contacts | Input voltage | 24 V DC (-15 %/+20 %) |
| Power contacts | Current carrying capacity | max. 10 A |
| Power contacts | Current consumption | typ. 20 mA + load |
| Power contacts | Output voltage | corresponds to Power contacts | input voltage |
| Electrical isolation | Channel/channel | no |
| Electrical isolation | Channel/bus | functional, 707 V DC type test |
| Environmental conditions | ED1859 |
|---|---|
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Installation position | variable |
| Standards and approvals | ED1859 |
|---|---|
| Vibration resistance | conforms to EN 60068-2-6 |
| Shock resistance | conforms to EN 60068-2-27 |
| EMC immunity | conforms to EN 61000-6-2 |
| EMC emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | cULus (in preparation) |
| Housing data | ED-12-16pin |
|---|---|
| Weight | 60 g |
| Protection rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (single) | 15 mm |
| Dimensions | Width (lined up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/back wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/terminal | double slot and key connection |
| Plug-in wiring level | no |
| Connection technology | push-in |
| Connection cross-section | Solid wire | 0.08…1.5 mm² |
| Connection cross-section | Stranded wire | 0.25…1.5 mm² |
| Connection cross-section | With ferrule | 0.14…0.75 mm² |
| Connection cross-section AWG | Solid wire | AWG28…16 |
| Connection cross-section AWG | Stranded wire | AWG22…16 |
| Connection cross-section AWG | With ferrule | AWG26…19 |
| Stripping length | 8…9 mm |
| Power contact | "+" (left) | yes |
| Power contact | "+" (rechts) | yes |
| Power contact | "-" (left) | yes |
| Power contact | "-" (right) | yes |
| Power contact | "⏚" (left) | no |
| Power contact | "⏚" (right) | no |
| Insertion lock for power contact “⏚” | yes |
