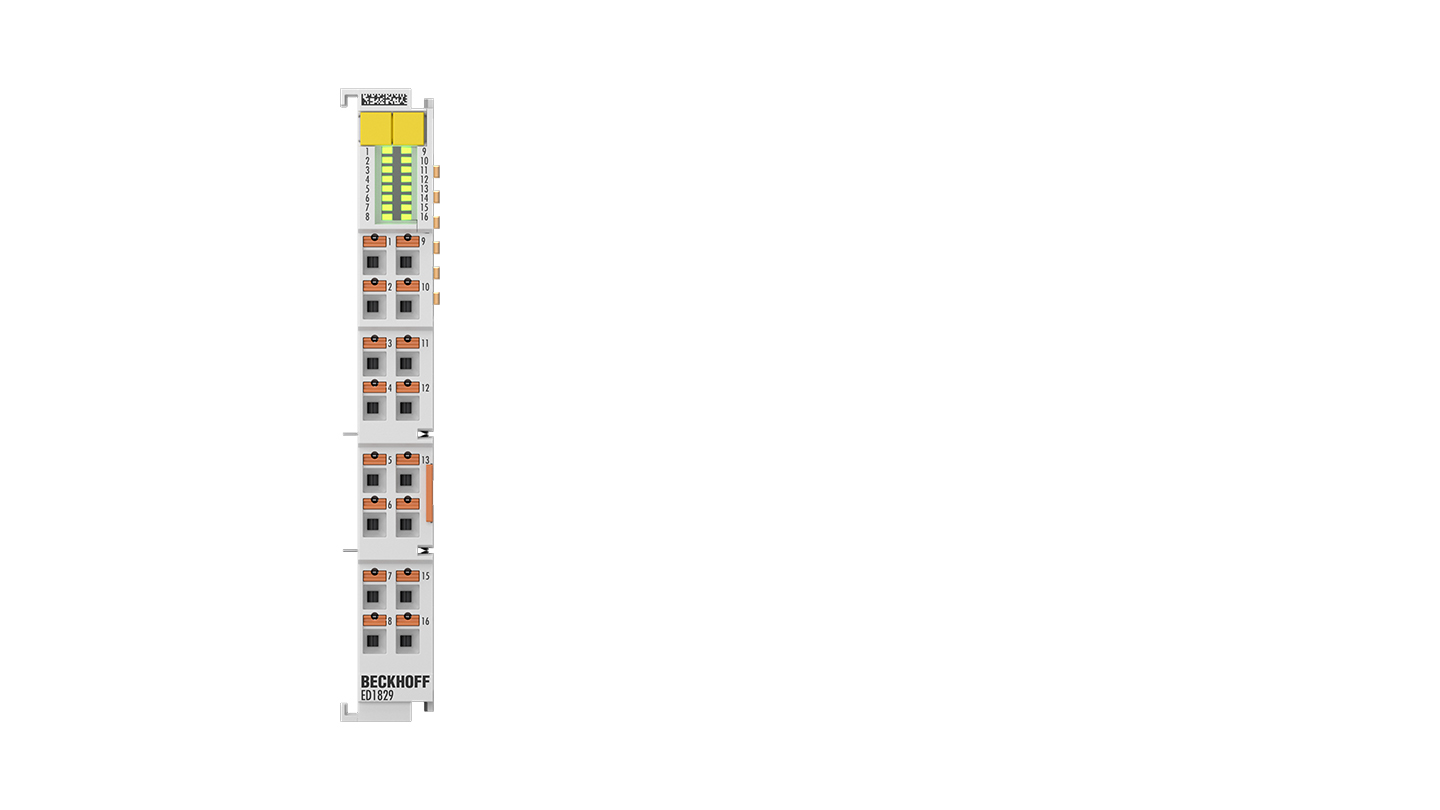

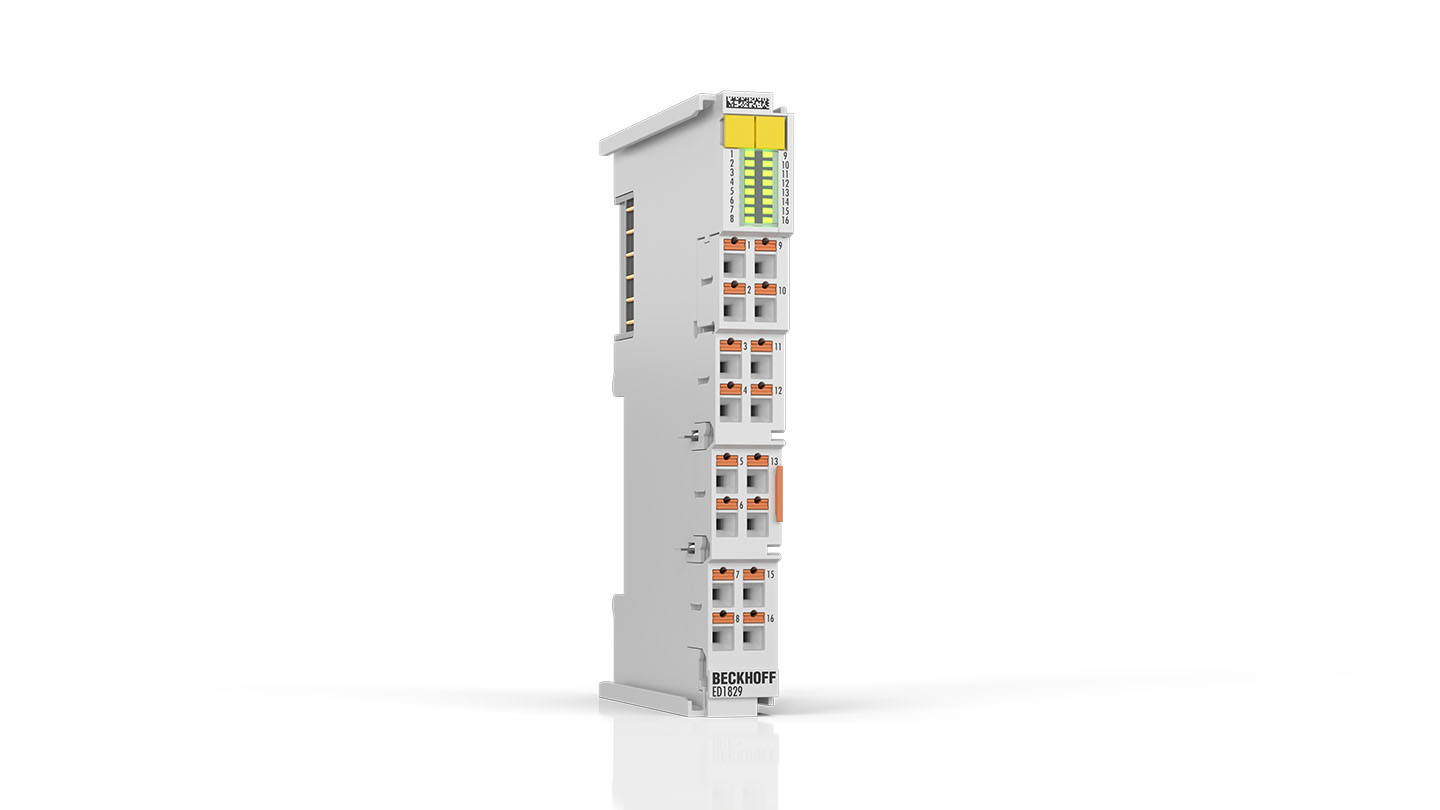

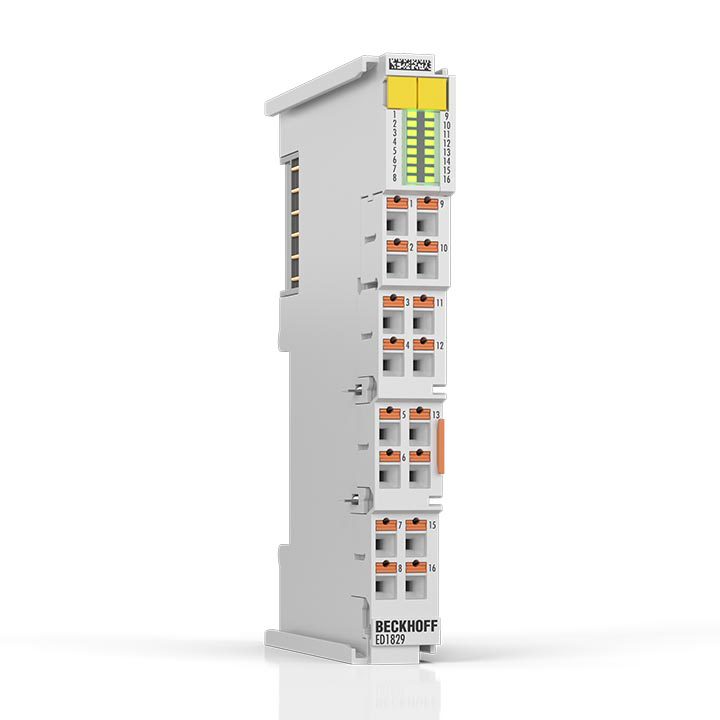

ED1829 | EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, positive/ground switching, push-in
ED1829 | EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, positive/ground switching, push-in
Ch. 2 DI
Ch. 3 DI
Ch. 4 DI
Ch. 5 DI
Ch. 6 DI
Ch. 7 DI
Ch. 8 DI
Ch. 10 DI
Ch. 11 DI
Ch. 12 DI
Ch. 13 DI
Ch. 14 DI
Ch. 15 DI
Ch. 16 DI
+24 V DC
0 V
ED1829 | EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, positive/ground switching, push-in
ED1829 | EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, positive/ground switching, push-in
The ED1829 digital input terminal acquires the binary 24 V DC control signals from the process level and transmits them, in electrically isolated form, to the higher-level automation device. The EtherCAT Terminal contains 16 channels whose signal state is indicated by LEDs. Due to the flexible switching logic, each channel can be used for positive or ground switching. The switching mode is determined automatically by the connected reference potential without configuration. This creates two defined voltage ranges in which the signal is reliably recognized as logical “1.”
Special features:
- intelligent switching logic per channel: positive or ground switching without configuration
- no bouncing due to mechanical switches thanks to 3 ms input filter
- space-saving use in the control cabinet
- direct connection of multi-channel sensors using single-ended connection technique in the smallest space
The ED-series EtherCAT Terminals have push-in connection technology which makes wiring easy and tool-free.
Product status:
product announcement | estimated market release 1st quarter 2026
Product information
| General | ED1829 |
|---|---|
| Number of channels | Total | 16 |
| Internal communication protocol | EtherCAT |
| Digital input | ED1829 |
|---|---|
| Standard digital | Positive switching | |
| Number of channels | max. 16 |
| Connection technology | 1-wire |
| Signal range | Nominal | 24 V DC |
| Signal range | Technical | 20.4…28.8 V DC |
| “0” signal voltage | 9…15 V DC at 24 V DC |
| “1” signal voltage | 19…24 V DC at 24 V DC |
| Input filter | typ. 3 ms |
| Input current | typ. 2.5 mA at 24 V DC |
| Standard digital | Ground switching | |
| Number of channels | max. 16 |
| Connection technology | 1-wire |
| Signal range | Nominal | 24 V DC |
| Signal range | Technical | 20.4…28.8 V DC |
| “0” signal voltage | 9…15 V DC at 24 V DC |
| “1” signal voltage | 0…5 V DC at 24 V DC |
| Input filter | typ. 3 ms |
| Input current | typ. 2.5 mA at 24 V DC |
| XFC | ED1829 |
|---|---|
| Distributed clocks | no |
| Timestamp | no |
| Oversampling | no |
| Supply and electrical isolation | ED1829 |
|---|---|
| Electronics | Supply voltage | via E-bus, via power contacts |
| E-bus | Current consumption | typ. 95 mA |
| Power contacts | Input voltage | 24 V DC (-15 %/+20 %) |
| Power contacts | Current carrying capacity | max. 10 A |
| Power contacts | Current consumption | typ. 5 mA + load |
| Power contacts | Output voltage | corresponds to Power contacts | input voltage |
| Electrical isolation | Channel/channel | no |
| Electrical isolation | Channel/bus | functional, 707 V DC type test |
| Environmental conditions | ED1829 |
|---|---|
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Installation position | variable |
| Standards and approvals | ED1829 |
|---|---|
| Vibration resistance | conforms to EN 60068-2-6 |
| Shock resistance | conforms to EN 60068-2-27 |
| EMC immunity | conforms to EN 61000-6-2 |
| EMC emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | cULus (in preparation) |
| Housing data | ED-12-16pin |
|---|---|
| Weight | 60 g |
| Protection rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (single) | 15 mm |
| Dimensions | Width (lined up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/back wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/terminal | double slot and key connection |
| Plug-in wiring level | no |
| Connection technology | push-in |
| Connection cross-section | Solid wire | 0.08…1.5 mm² |
| Connection cross-section | Stranded wire | 0.25…1.5 mm² |
| Connection cross-section | With ferrule | 0.14…0.75 mm² |
| Connection cross-section AWG | Solid wire | AWG28…16 |
| Connection cross-section AWG | Stranded wire | AWG22…16 |
| Connection cross-section AWG | With ferrule | AWG26…19 |
| Stripping length | 8…9 mm |
| Power contact | "+" (left) | yes |
| Power contact | "+" (rechts) | yes |
| Power contact | "-" (left) | yes |
| Power contact | "-" (right) | yes |
| Power contact | "⏚" (left) | no |
| Power contact | "⏚" (right) | no |
| Insertion lock for power contact “⏚” | yes |
