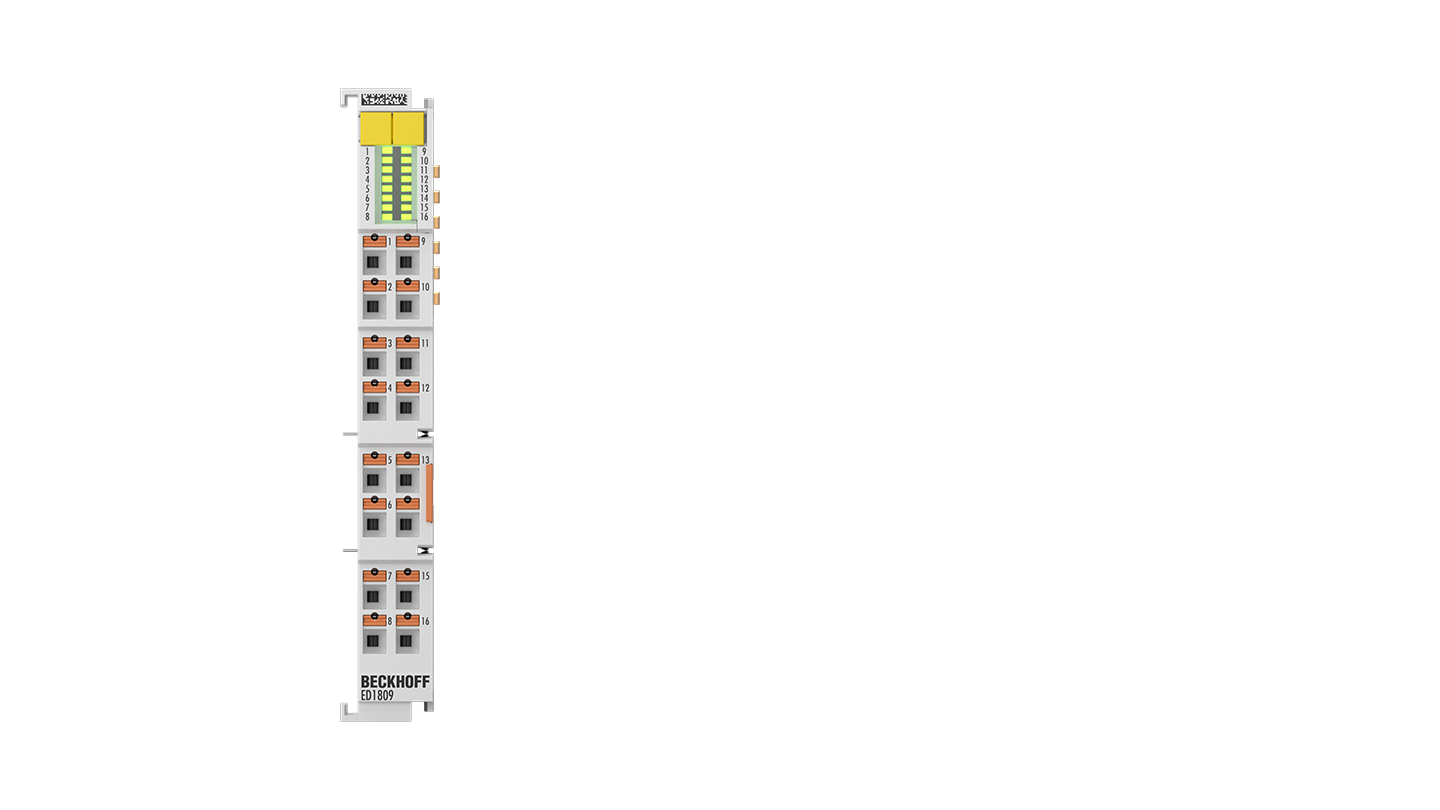

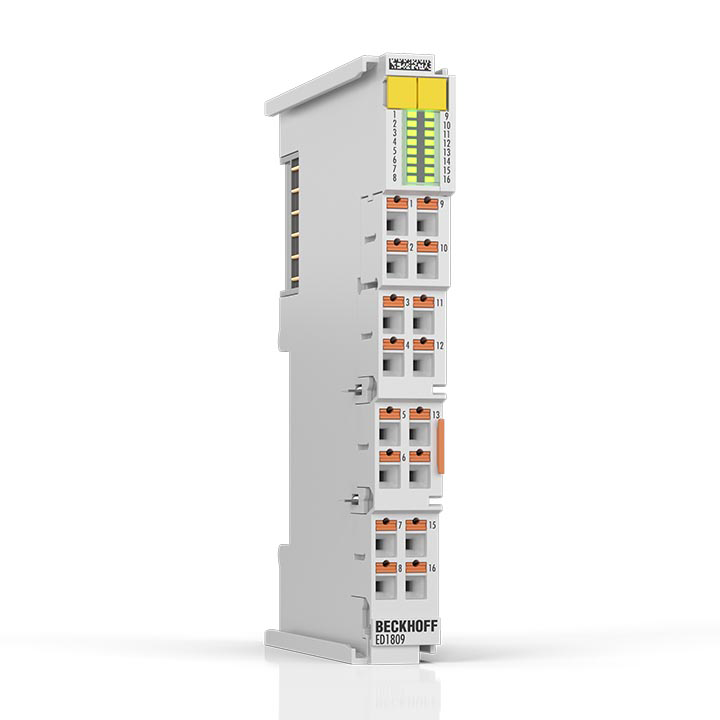

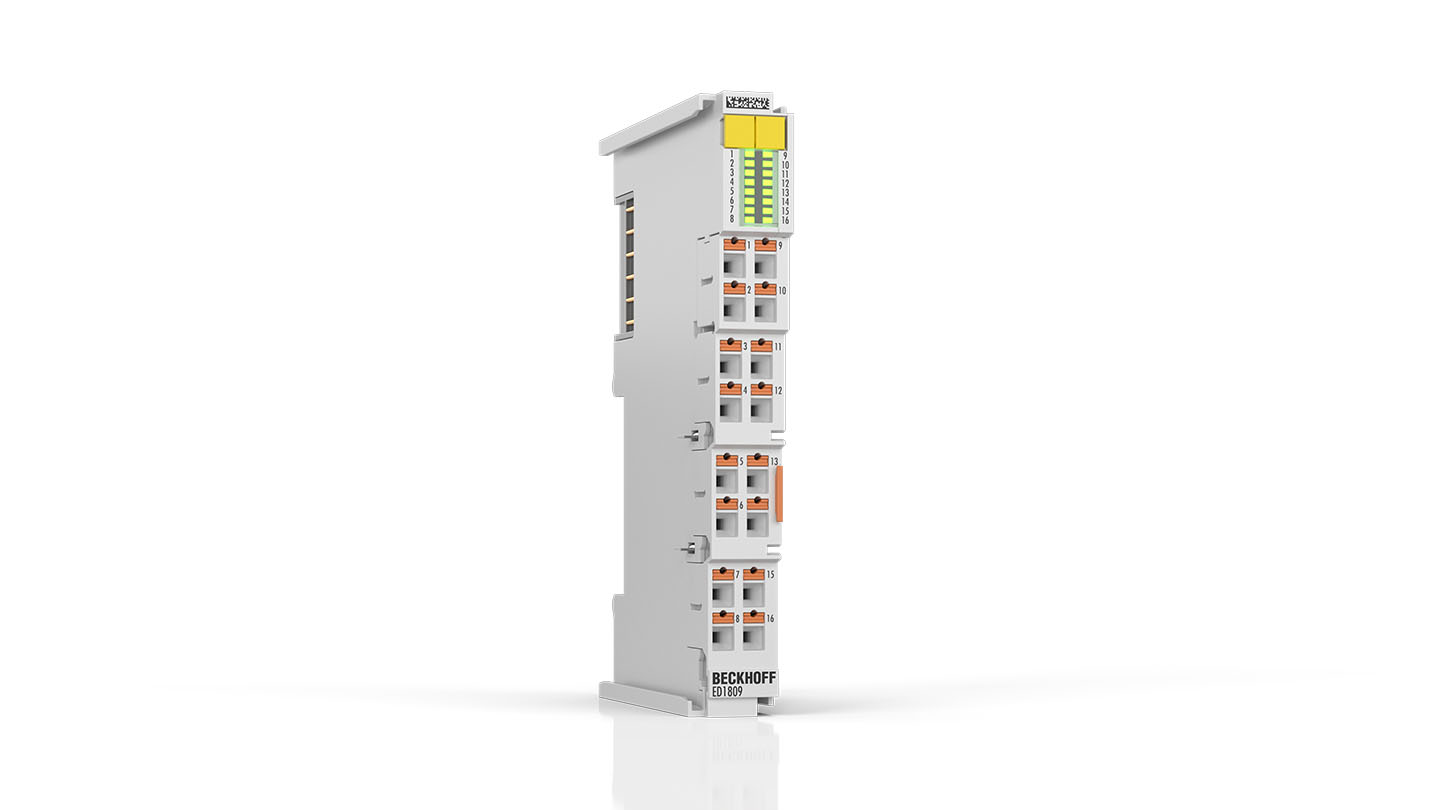

ED1809 | EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, push-in
ED1809 | EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, push-in
Ch. 2 DI
Ch. 3 DI
Ch. 4 DI
Ch. 5 DI
Ch. 6 DI
Ch. 7 DI
Ch. 8 DI
Ch. 10 DI
Ch. 11 DI
Ch. 12 DI
Ch. 13 DI
Ch. 14 DI
Ch. 15 DI
Ch. 16 DI
+24 V DC
0 V
ED1809 | EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, push-in
ED1809 | EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, push-in
The ED1809 digital input terminal acquires the binary 24 V DC control signals from the process level and transmits them, in electrically isolated form, to the higher-level automation device. The EtherCAT Terminal contains 16 channels whose signal state is indicated by LEDs. The power contacts are looped through. With the ED1809, the reference ground for all inputs is the 0 V DC power contact.
Special features:
- positive switching
- input specification type 1/3
- no bouncing due to mechanical switches thanks to 3 ms input filter
- space-saving use in the control cabinet
- direct connection of multi-channel sensors using single-ended connection technique in the smallest space
The ED-series EtherCAT Terminals have push-in connection technology which makes wiring easy and tool-free.
Product status:
regular delivery
Product information
| General | ED1809 |
|---|---|
| Number of channels | Total | 16 |
| Internal communication protocol | EtherCAT |
| Digital input | ED1809 |
|---|---|
| Standard digital | Positive switching | |
| Number of channels | 16 |
| Connection technology | 1-wire |
| Signal range | Nominal | 24 V DC |
| Signal range | Technical | 20.4…28.8 V DC |
| Specification | EN 61131-2, type 1/3 |
| “0” signal voltage | -3…+5 V DC |
| “1” signal voltage | 11…30 V DC |
| Input filter | typ. 3 ms |
| Input current | typ. 3 mA |
| XFC | ED1809 |
|---|---|
| Distributed clocks | no |
| Timestamp | no |
| Oversampling | no |
| Supply and electrical isolation | ED1809 |
|---|---|
| Electronics | Supply voltage | via E-bus, via power contacts |
| E-bus | Current consumption | typ. 65 mA |
| Power contacts | Input voltage | 24 V DC (-15 %/+20 %) |
| Power contacts | Current carrying capacity | max. 10 A |
| Power contacts | Current consumption | typ. 10 mA + load |
| Power contacts | Output voltage | corresponds to Power contacts | input voltage |
| Electrical isolation | Channel/channel | no |
| Electrical isolation | Channel/bus | functional, 707 V DC type test |
| Environmental conditions | ED1809 |
|---|---|
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Installation position | variable |
| Standards and approvals | ED1809 |
|---|---|
| Vibration resistance | conforms to EN 60068-2-6 |
| Shock resistance | conforms to EN 60068-2-27 |
| EMC immunity | conforms to EN 61000-6-2 |
| EMC emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | cULus (in preparation) |
| Housing data | ED-12-16pin |
|---|---|
| Weight | 60 g |
| Protection rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (single) | 15 mm |
| Dimensions | Width (lined up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/back wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/terminal | double slot and key connection |
| Plug-in wiring level | no |
| Connection technology | push-in |
| Connection cross-section | Solid wire | 0.08…1.5 mm² |
| Connection cross-section | Stranded wire | 0.25…1.5 mm² |
| Connection cross-section | With ferrule | 0.14…0.75 mm² |
| Connection cross-section AWG | Solid wire | AWG28…16 |
| Connection cross-section AWG | Stranded wire | AWG22…16 |
| Connection cross-section AWG | With ferrule | AWG26…19 |
| Stripping length | 8…9 mm |
| Power contact | "+" (left) | yes |
| Power contact | "+" (rechts) | yes |
| Power contact | "-" (left) | yes |
| Power contact | "-" (right) | yes |
| Power contact | "⏚" (left) | no |
| Power contact | "⏚" (right) | no |
| Insertion lock for power contact “⏚” | yes |
