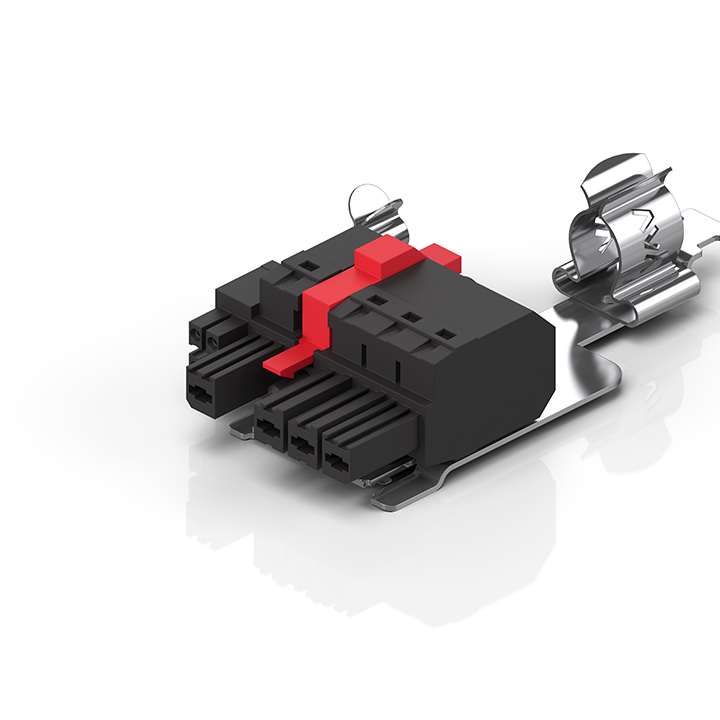

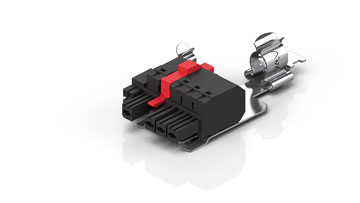

ZS48B0-2013 | Connector for AX8000: motor connector plug
ZS48B0-2013 | Connector for AX8000: motor connector plug
Product information
| Technical data | ZS48B0-2013 |
|---|---|
| Installation size | Pitch dimension 7.62 mm |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | 4-pin |
| Mating cycles | 25 |
| Wire termination | Push-in |
| Max. wire cross-section | AWG24…AWG8 (0.5 mm²…10 mm²) |
For further technical details, please refer to the data sheet.
| A1 | 60.00 mm |
| A2 | 47.00 mm |
| Ordering information | ZS48B0-2013 | Connectors |
|---|---|
| ZS48B0-2013 | connector for AX8000: X13/X23 motor connector plug with 0° angled cable outlet, socket, 8-pin, max. 6.0 mm² (power), max. 1.5 mm² (OCT/thermo+brake) |
