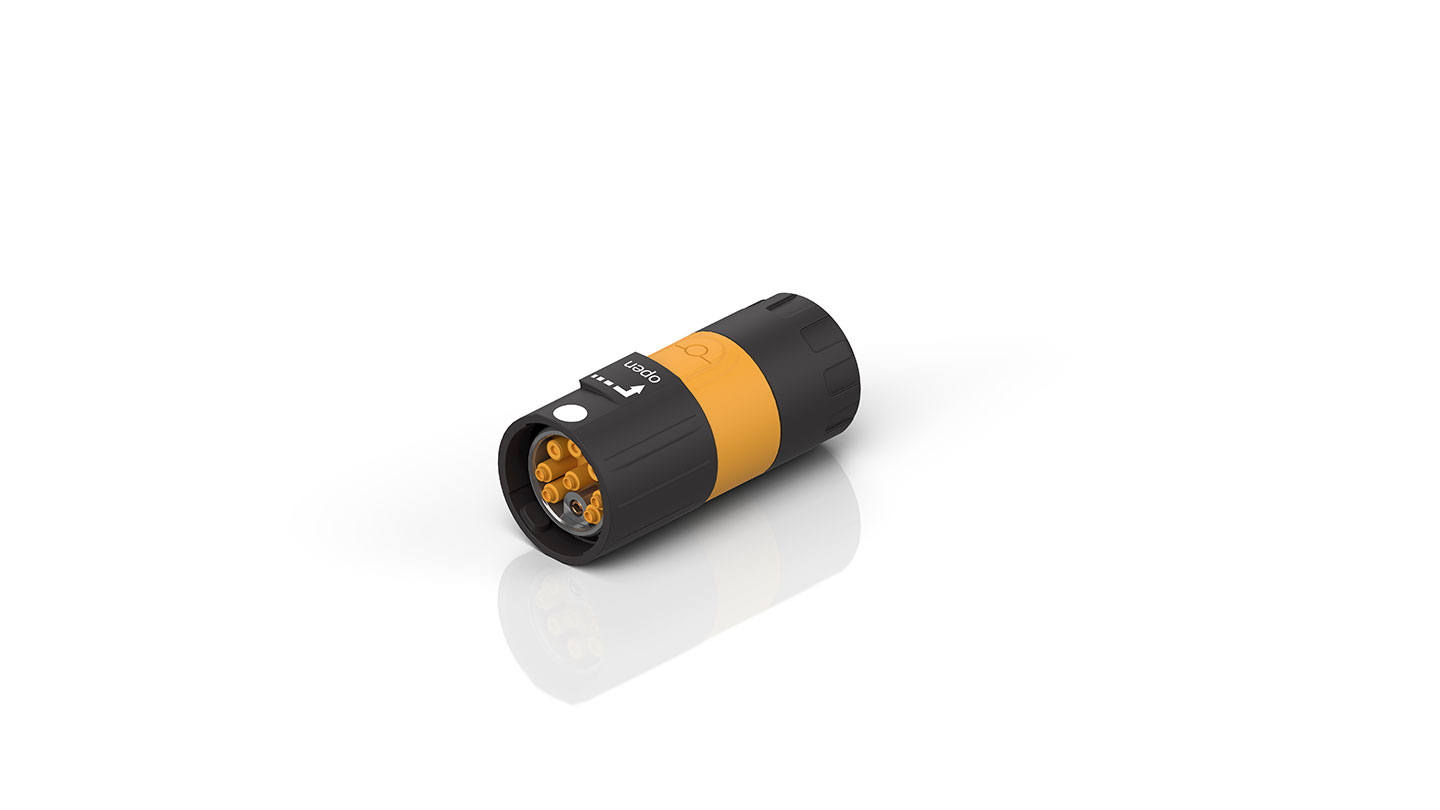

ZS4000-2107 | EMC power connector, 9 contacts contained
ZS4000-2107 | EMC power connector, 9 contacts contained
Product information
| Technical data | ZS4000-2107 |
|---|---|
| Installation size | itec® (Series 915) |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | Power: 3+PE, Signal: 5 |
| Mating cycles | 500 |
| Wire termination | crimp connection |
For further technical details, please refer to the data sheet.

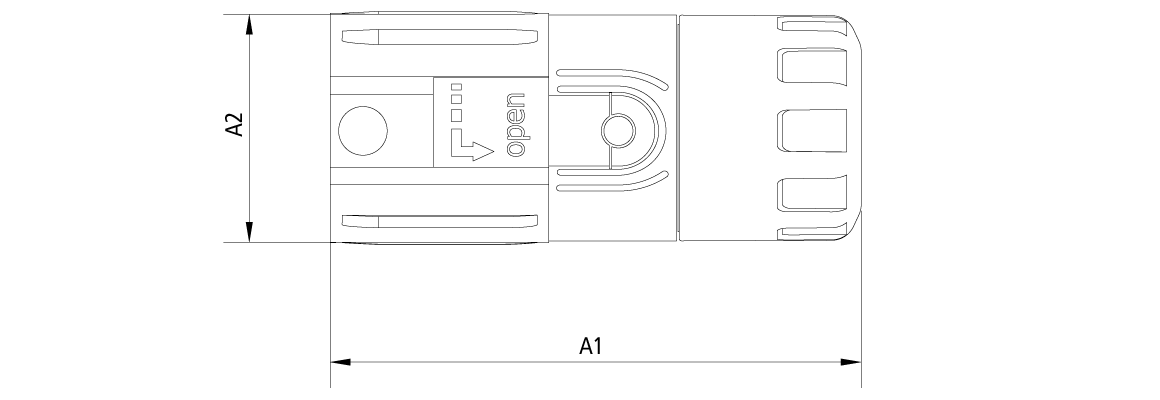

| A1 | 44.00 mm |
| A2 | 19.00 mm |
| Ordering information | ZS4000-20xx | Connectors |
|---|---|
| ZS4000-2107 | EMC power connector (female), Series 915, 9-pin, for motor cable ZK450x-8022-xxxx and ZK4704-0421-xxxx with OCT feedback (counterpart to motor socket AM8x1x, AM8x2x, AM803x, AM853x and AM813x/AL800/AL8100) |
