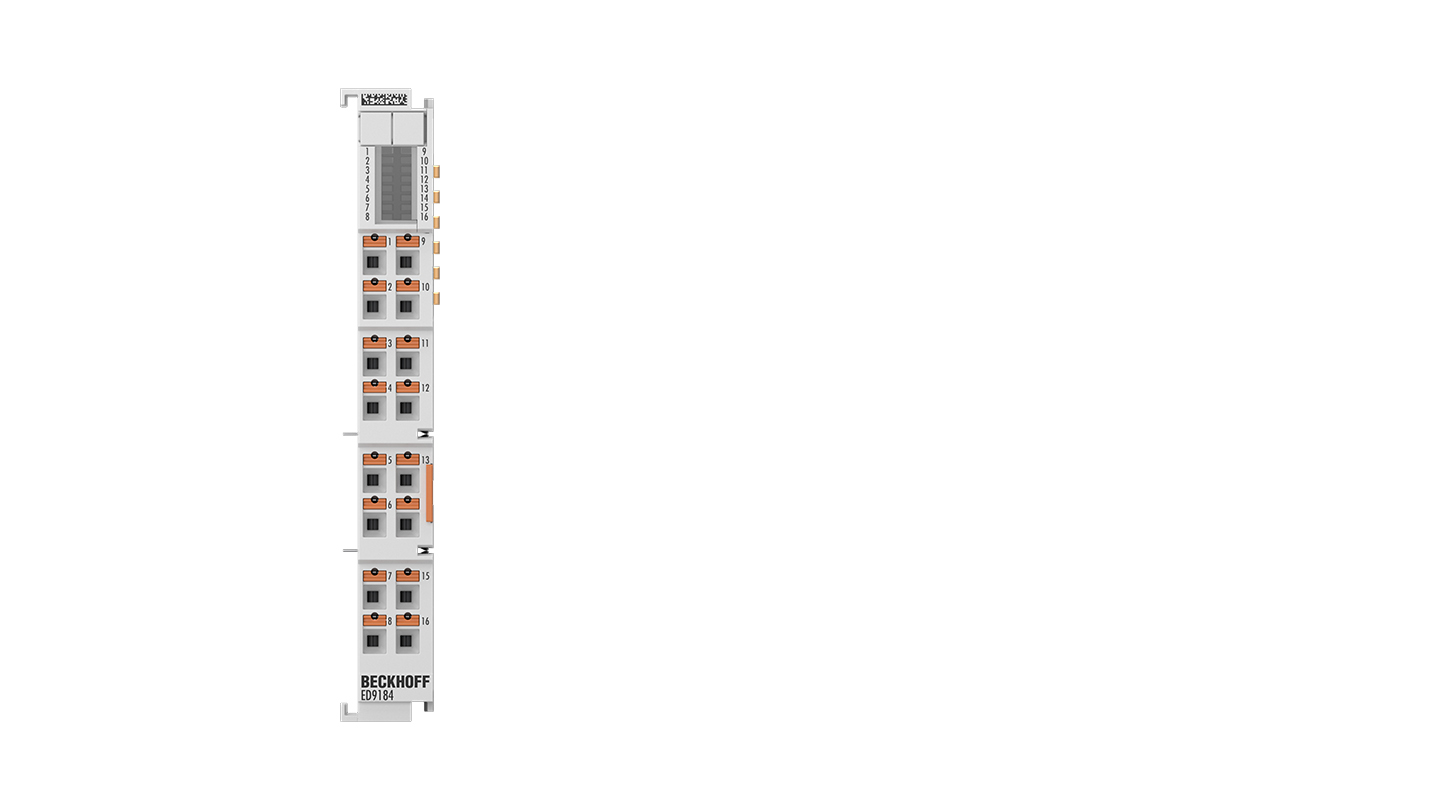

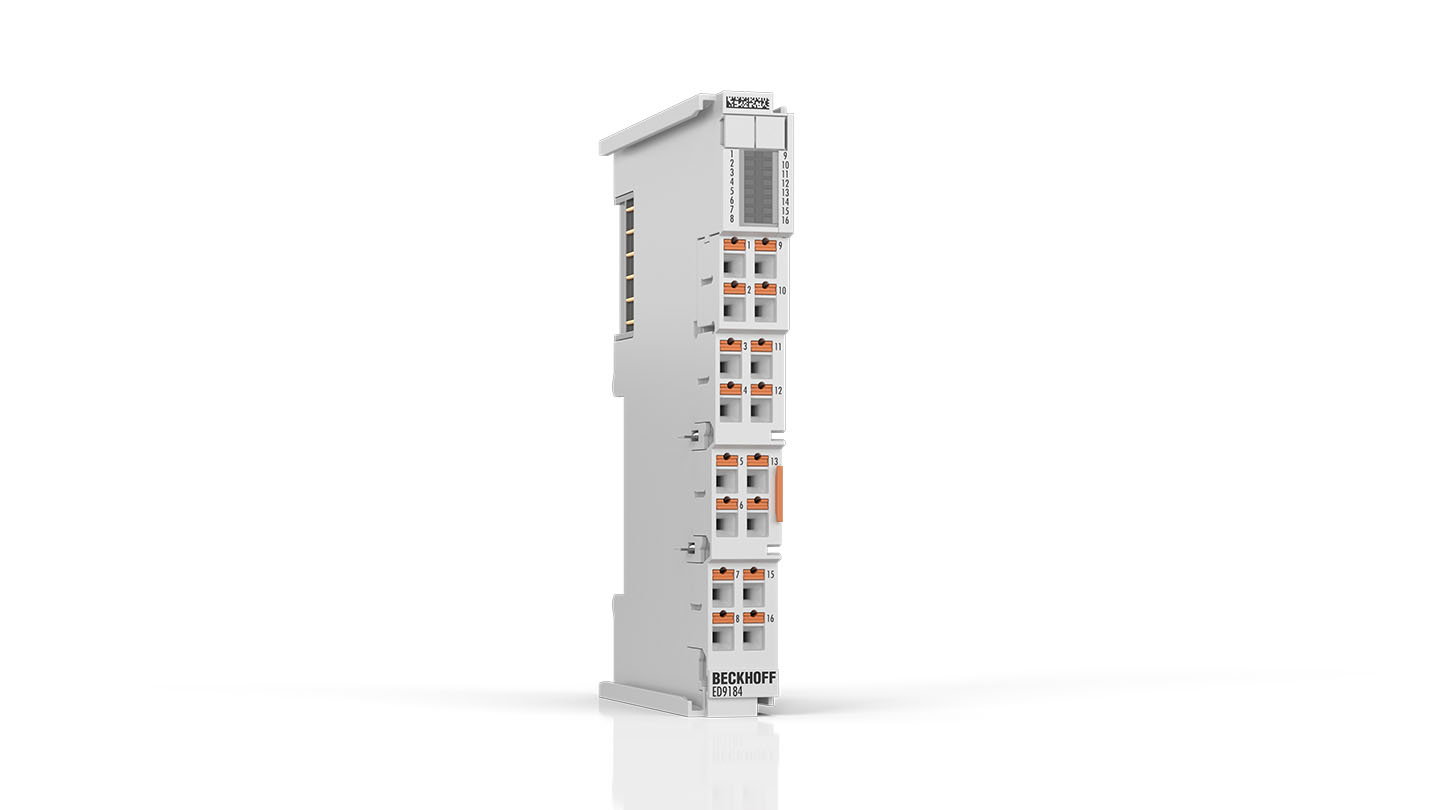

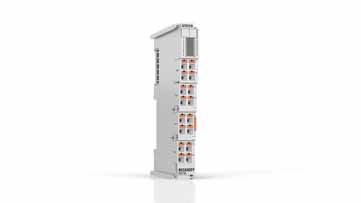

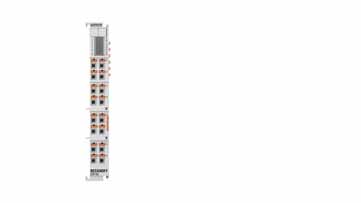

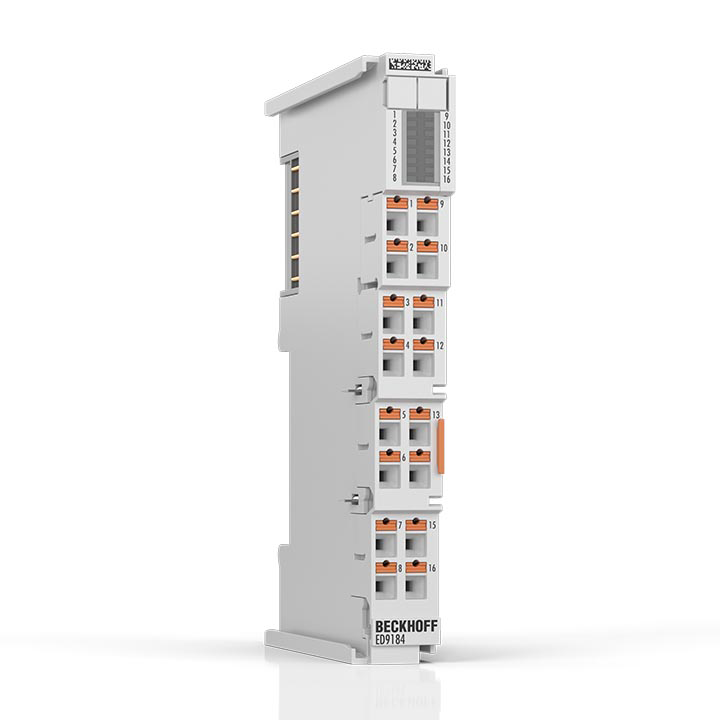

ED9184 | EtherCAT Terminal, potential distribution, 8 x 24 V DC, 8 x 0 V DC, push-in
ED9184 | EtherCAT Terminal, potential distribution, 8 x 24 V DC, 8 x 0 V DC, push-in
+24 V DC
0 V
ED9184 | EtherCAT Terminal, potential distribution, 8 x 24 V DC, 8 x 0 V DC, push-in
ED9184 | EtherCAT Terminal, potential distribution, 8 x 24 V DC, 8 x 0 V DC, push-in
The ED9184 potential distribution terminal provides the supply voltage via the front-side terminal contacts. 24 V DC and 0 V DC can each be tapped 8x from the front. The power contacts are connected to the front-side terminal contacts and are looped through to the adjacent terminal. By using the ED9184, the need for additional terminal blocks on the terminal strip can be reduced.
The ED-series EtherCAT Terminals have push-in connection technology which makes wiring easy and tool-free.
Product status:
regular delivery
Product information
| General | ED9184 |
|---|---|
| Internal communication protocol | no (passive) |
| System | ED9184 |
|---|---|
| Function | potenial distribution, 8 x 2 potentials from the power contacts |
| Output voltage | from the power contacts |
| Diagnostics | no |
| XFC | ED9184 |
|---|---|
| Distributed clocks | no |
| Timestamp | no |
| Oversampling | no |
| Supply and electrical isolation | ED9184 |
|---|---|
| Power contacts | Input voltage | max. 60 V |
| Power contacts | Current carrying capacity | max. 10 A |
| Power contacts | Current consumption | load-dependent |
| Power contacts | Output voltage | corresponds to Power contacts | input voltage |
| Environmental conditions | ED9184 |
|---|---|
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Installation position | variable |
| Standards and approvals | ED9184 |
|---|---|
| Vibration resistance | conforms to EN 60068-2-6 |
| Shock resistance | conforms to EN 60068-2-27 |
| EMC immunity | conforms to EN 61000-6-2 |
| EMC emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | cULus (in preparation) |
| Housing data | ED-12-16pin |
|---|---|
| Weight | 60 g |
| Protection rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (single) | 15 mm |
| Dimensions | Width (lined up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/back wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/terminal | double slot and key connection |
| Plug-in wiring level | no |
| Connection technology | push-in |
| Connection cross-section | Solid wire | 0.08…1.5 mm² |
| Connection cross-section | Stranded wire | 0.25…1.5 mm² |
| Connection cross-section | With ferrule | 0.14…0.75 mm² |
| Connection cross-section AWG | Solid wire | AWG28…16 |
| Connection cross-section AWG | Stranded wire | AWG22…16 |
| Connection cross-section AWG | With ferrule | AWG26…19 |
| Stripping length | 8…9 mm |
| Power contact | "+" (left) | yes |
| Power contact | "+" (rechts) | yes |
| Power contact | "-" (left) | yes |
| Power contact | "-" (right) | yes |
| Power contact | "⏚" (left) | no |
| Power contact | "⏚" (right) | no |
| Insertion lock for power contact “⏚” | yes |
