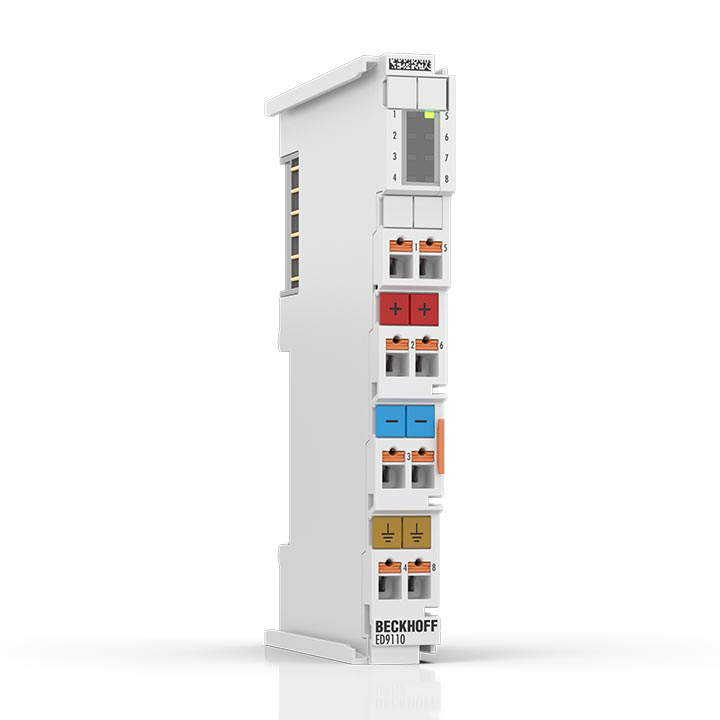

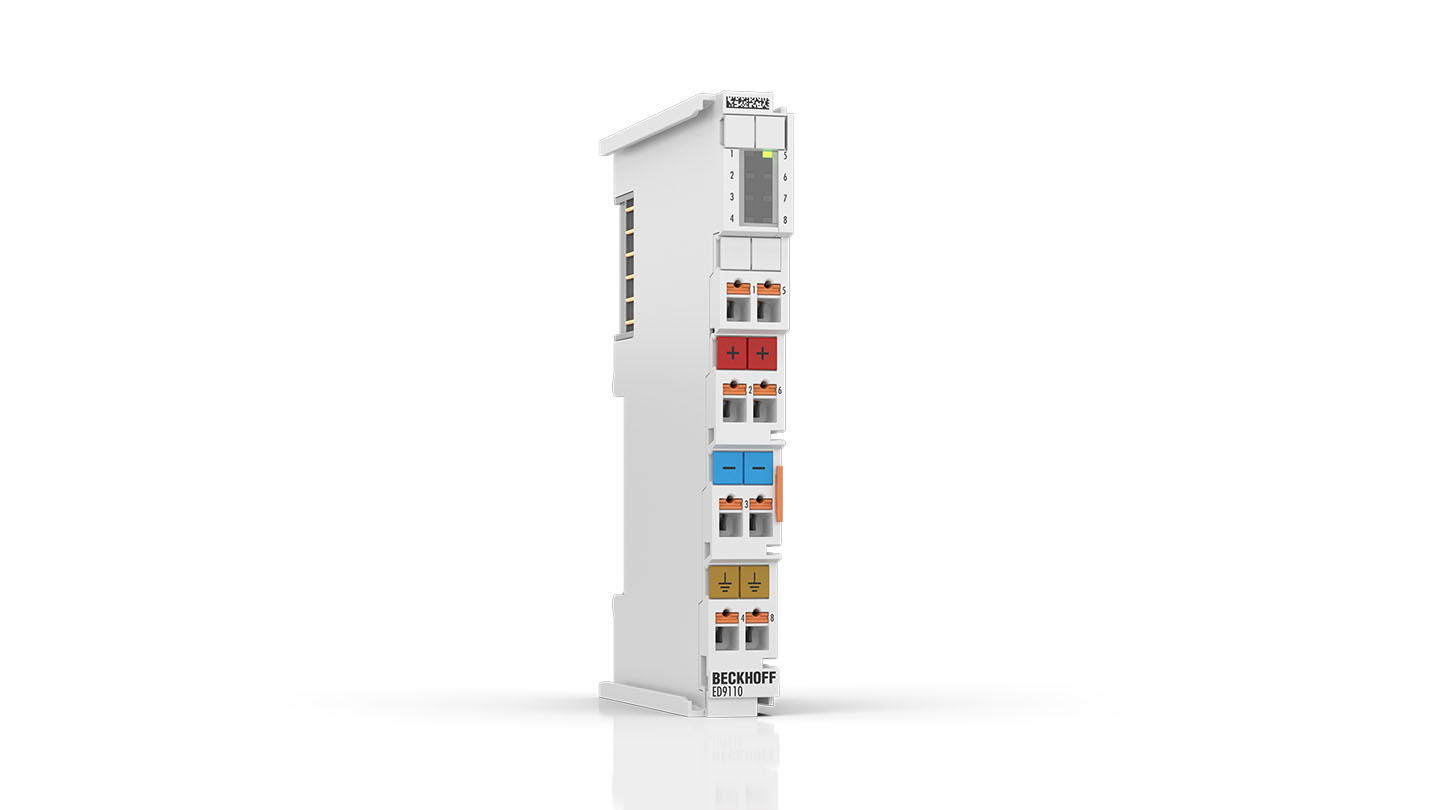

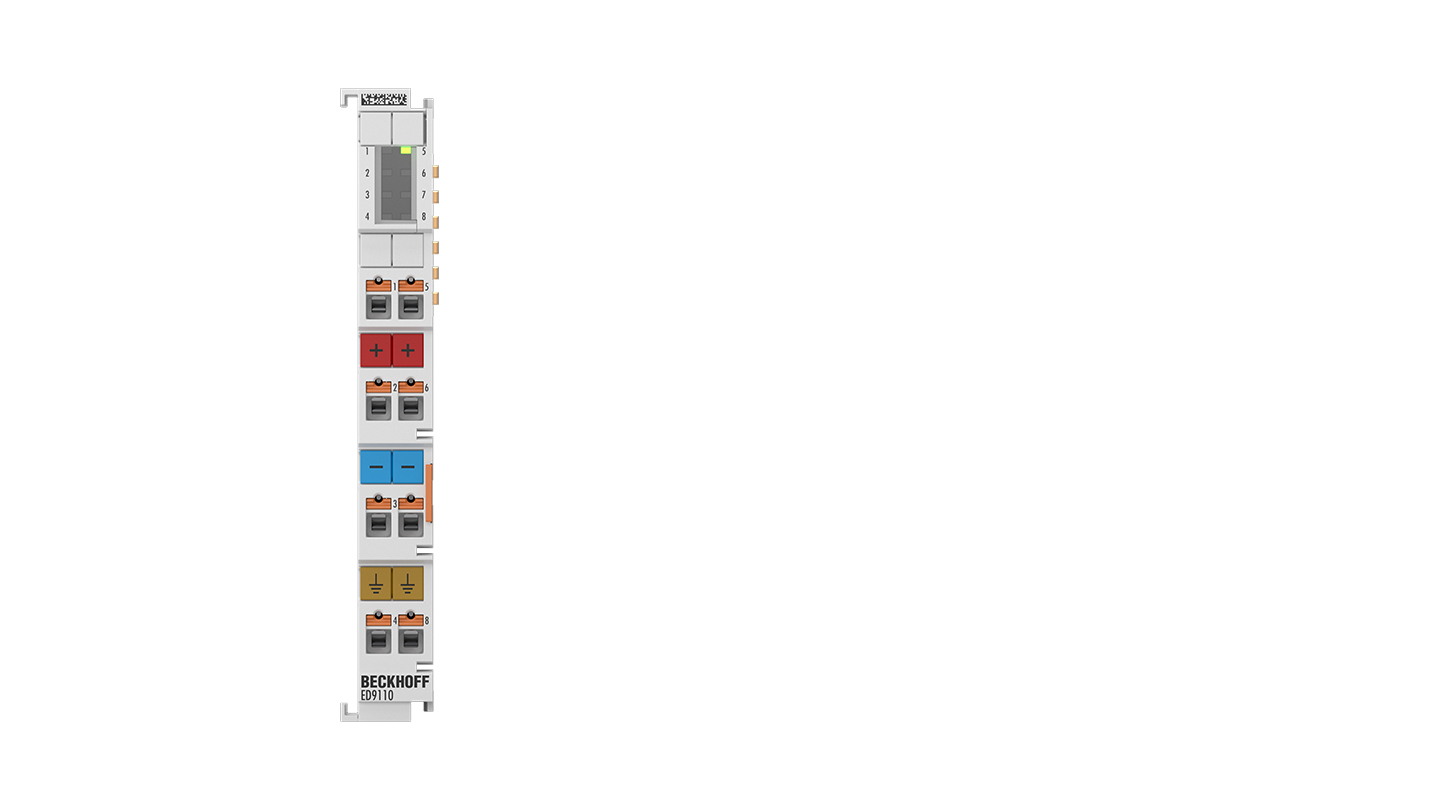

ED9110 | EtherCAT Terminal, potential supply, 24 V DC, 10 A, push-in, with diagnostics
ED9110 | EtherCAT Terminal, potential supply, 24 V DC, 10 A, push-in, with diagnostics
ED9110 | EtherCAT Terminal, potential supply, 24 V DC, 10 A, push-in, with diagnostics
ED9110 | EtherCAT Terminal, potential supply, 24 V DC, 10 A, push-in, with diagnostics
The ED9110 potential supply terminal with diagnostics enables the setup of different potential groups with the standard voltage 24 V DC. The supply voltage is fed via the front terminal contacts and passed through to the adjacent terminals via the internal power contacts. To monitor the supply voltage, the ED9110 reports the status of the power supply terminal to the EtherCAT Coupler. A power LED indicates the operating state.
The ED-series EtherCAT Terminals have push-in connection technology which makes wiring easy and tool-free.
Product status:
product announcement | estimated market release 1st quarter 2026
Product information
| General | ED9110 |
|---|---|
| Internal communication protocol | EtherCAT |
| System | ED9110 |
|---|---|
| Function | potential supply |
| Diagnostics | yes |
| XFC | ED9110 |
|---|---|
| Distributed clocks | no |
| Timestamp | no |
| Oversampling | no |
| Supply and electrical isolation | ED9110 |
|---|---|
| Electronics | Supply voltage | via E-bus |
| E-bus | Current consumption | typ. 90 mA |
| Power contacts | Input voltage | 24 V DC (-15 %/+20 %) |
| Power contacts | Current carrying capacity | max. 10 A |
| Power contacts | Current consumption | – |
| Power contacts | Output voltage | corresponds to Power contacts | input voltage |
| Power contacts | Output current | max. 10 A |
| Environmental conditions | ED9110 |
|---|---|
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Installation position | variable |
| Standards and approvals | ED9110 |
|---|---|
| Vibration resistance | conforms to EN 60068-2-6 |
| Shock resistance | conforms to EN 60068-2-27 |
| EMC immunity | conforms to EN 61000-6-2 |
| EMC emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | cULus (in preparation) |
| Housing data | ED-12-8pin | EF-12-8pin |
|---|---|---|
| Weight | 55 g | 60 g |
| Protection rating | IP20 | |
| Material | polycarbonate | |
| Dimesnions | Width (single) | 15 mm | |
| Dimensions | Width (lined up) | 12 mm | |
| Dimensions | Height | 100 mm | |
| Dimensions | Depth | 65 mm | |
| Installation | Terminal/back wall | DIN rail, 35 mm (EN 60715) | |
| Installation | Terminal/terminal | double slot and key connection | |
| Plug-in wiring level | no | yes |
| Connection technology | push-in | |
| Connection cross-section | Solid wire | 0.08…2.5 mm² | 0.08…1.5 mm² |
| Connection cross-section | Stranded wire | 0.08…2.5 mm² | 0.08…1.5 mm² |
| Connection cross-section | With ferrule | 0.14…1,5 mm² | |
| Connection cross-section AWG | Solid wire | AWG28…14 | AWG28…16 |
| Connection cross-section AWG | Stranded wire | AWG28…14 | AWG28…16 |
| Connection cross-section AWG | With ferrule | AWG26…16 | |
| Stripping length | 8…9 mm | 9…10 mm |
| Power contact | "+" (left) | no | |
| Power contact | "+" (rechts) | yes | |
| Power contact | "-" (left) | no | |
| Power contact | "-" (right) | yes | |
| Power contact | "⏚" (left) | no | |
| Power contact | "⏚" (right) | yes | |
| Insertion lock for power contact “⏚” | no | |
| Ordering information | |
|---|---|
| ED9110 | EtherCAT Terminal, potential supply, 24 V DC, 10 A, push-in, with diagnostics |
| EF9110 | EtherCAT Terminal, potential supply, 24 V DC, 10 A, push-in, with diagnostics, pluggable wiring level |
