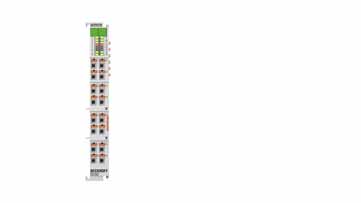

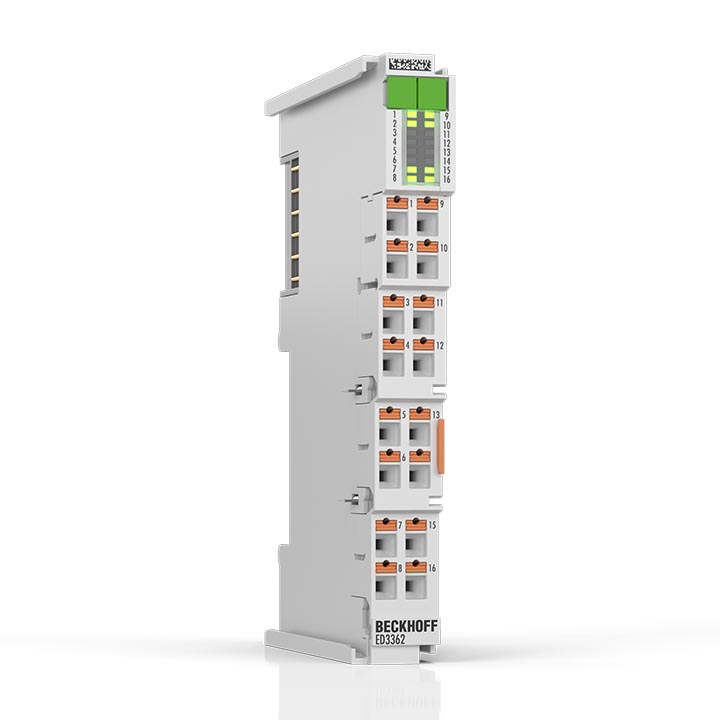

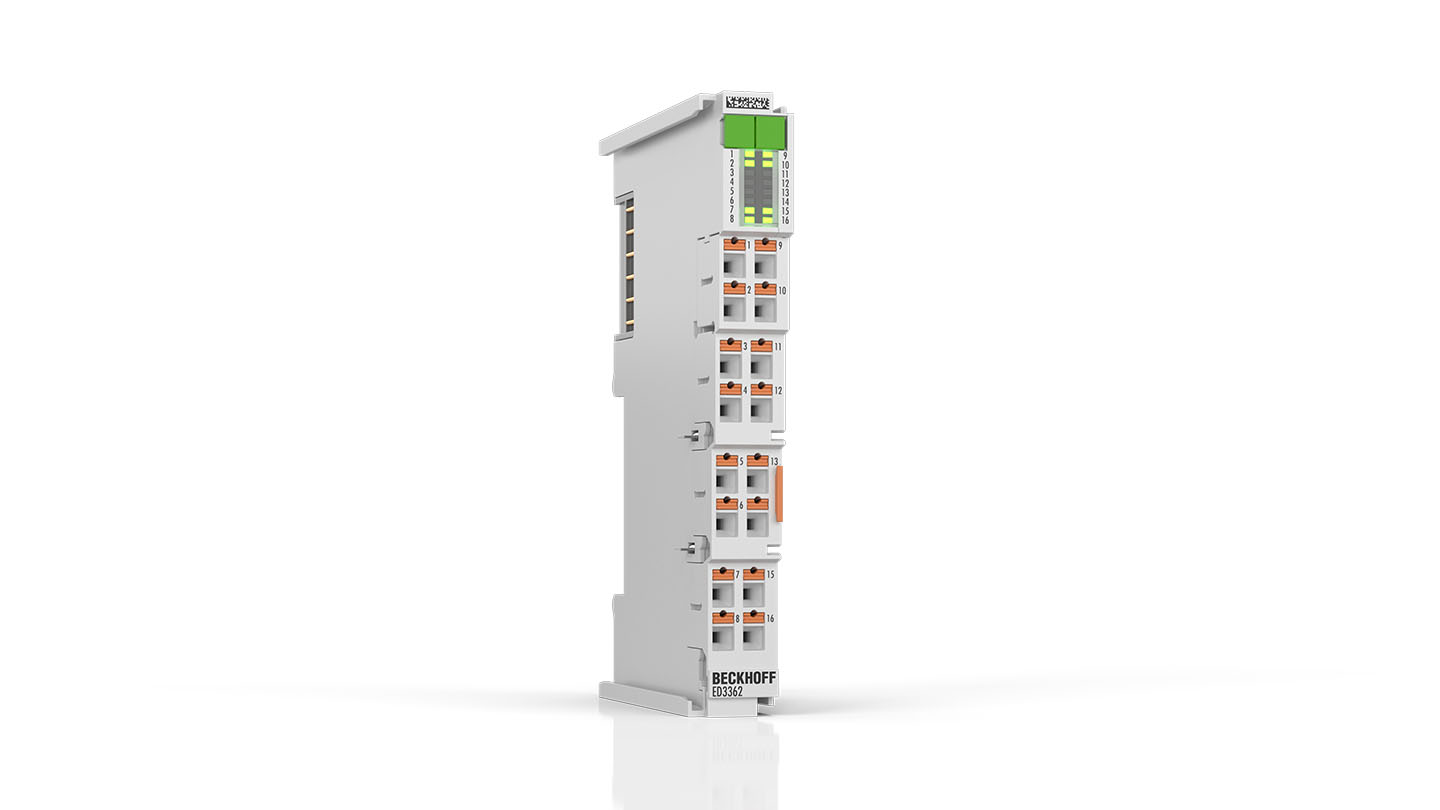

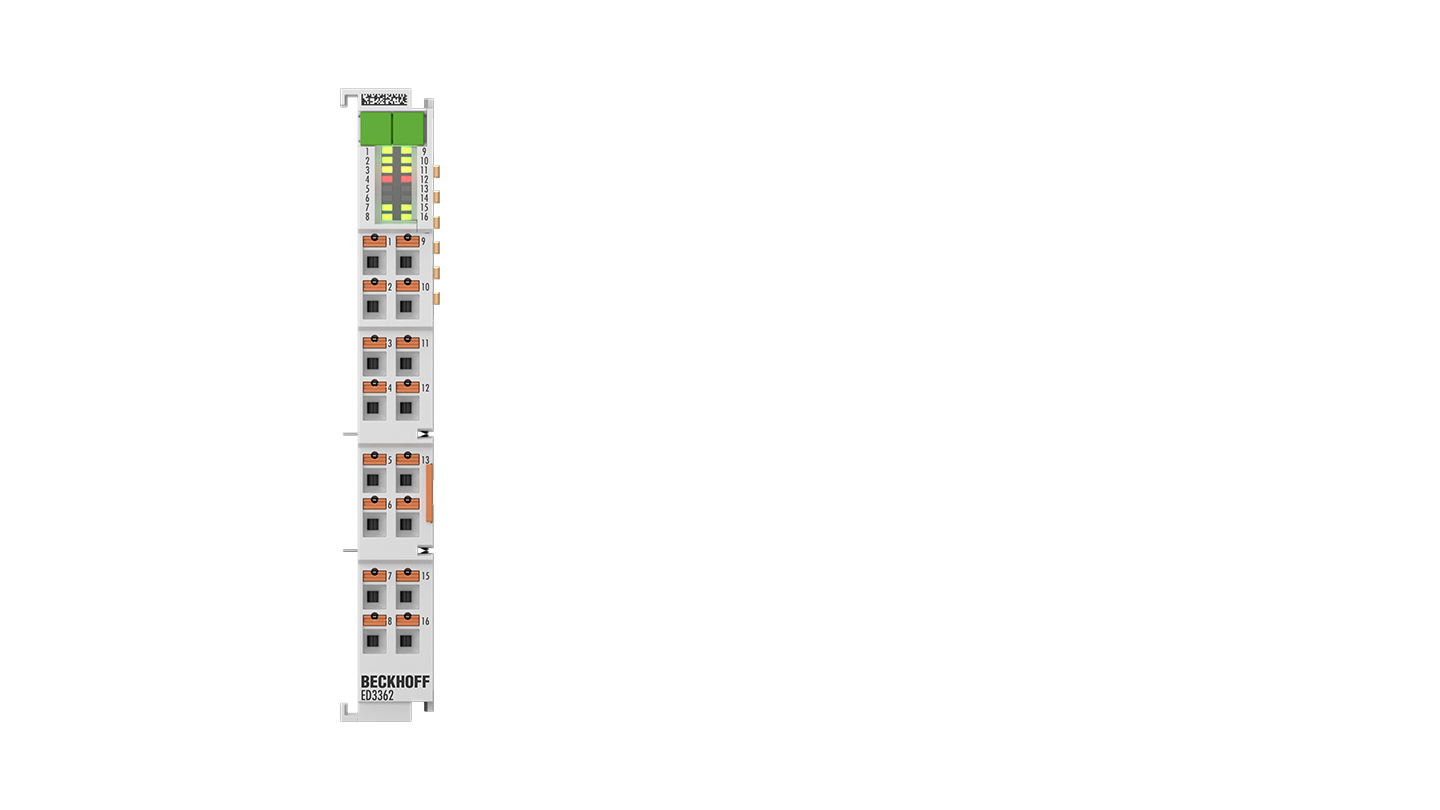

ED3362 | EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 5/10 V DC, with 2 x digital combi
ED3362 | EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 5/10 V DC, with 2 x digital combi
Ch. 1 steady
Ch. 1 warning
Ch. 1 error
–
–
DI 1
DO 1
Ch. 2 steady
Ch. 2 warning
Ch. 2 error
–
–
DI 2
DO 2
+24 V DC
0 V
ED3362 | EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 5/10 V DC, with 2 x digital combi
ED3362 | EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 5/10 V DC, with 2 x digital combi
The ED3362 analog input terminal enables the direct connection of two independent resistance bridges (strain gauges – SG) or load cells using the 4-wire or 6-wire connection technique. It records the ratio of the bridge voltages UBridge to the measured supply voltage USense and outputs the calculated load values as process values based on the terminal settings. This enables precise recording of weights, torques, and vibrations.
In addition, the terminal has two digital inputs/outputs. For example, an input can be used to trigger a tare function, while an output can be switched based on local evaluations in the terminal, e.g., depending on the measured value of the resistance bridge.
Special features:
- integrated, switchable 5 V/10 V bridge supply UExc, generated from the power contacts
- parallel connection of bridges possible due to powerful bridge supply
- sampling rate of 10 ksps
- two additional digital inputs/outputs for local trigger conditions
The ED-series EtherCAT Terminals have push-in connection technology which makes wiring easy and tool-free.
Product status:
product announcement | estimated market release 1st quarter 2026
Product information
| General | ED3362 |
|---|---|
| Number of channels | Total | 2 |
| Internal communication protocol | EtherCAT |
| Analog input | ED3362 |
|---|---|
| Strain gauge | |
| Number of channels | 2 |
| Sensor types | Strain gauge, load cells |
| Connection technology | 4-wire, 6-wire |
| Resolution | Technical | 24 bit |
| Resolution | Process data | 18.34... nV/V |
| Display | Process data | REAL32, INT16, INT32 |
| ADC conversion method | delta-sigma |
| Conversion type | simultaneous |
| Conversion time | min. 100 µs |
| Conversion rate | max. 10 ksps |
| Signal range | UBridge | ± 4 V DC |
| Signal range | UBridge, final value (FSV) | 4 V DC |
| Signal range | USense | ± 13 V DC |
| Signal range | USense, final value (FSV) | 13 V DC |
| Internal resistance/impedance | UBridge | min. 5 MΩ |
| Internal resistance/impedance | USense | min. 5 MΩ |
| Ground reference | differential |
| Measuring procedure | ratiometric |
| Input filter limit frequency | 10 kHz |
| Dielectric strength | max. 30 V |
| Accuracy/uncertainty | Of the FSV | < ±0,05 % |
| Sensor supply | Output voltage | 5 V DC/10 V DC |
| Sensor supply | Output current | max. 100 mA |
| Open-circuit recognition | yes |
| Digital input | ED3362 |
|---|---|
| Standard digital | Positive switching | |
| Number of channels | max. 2 |
| Function | trigger input |
| Connection technology | 2-wire |
| Signal range | Technical | 3.3…28.8 V DC |
| Specification | potential-free |
| “0” signal voltage | 0…1.5 V DC |
| “1” signal voltage | 2.5…30 V DC |
| Input filter | 2.5 µs |
| Input current | 3 mA |
| Digital output | ED3362 |
|---|---|
| Standard digital | Positive switching | |
| Function | trigger output |
| Load type | ohmic |
| Connection technology | 2-wire |
| Signal range | Nominal | 48 V DC |
| Output current | 600 mA |
| Switching times | TON | 400 µs |
| Switching times | TOFF | 80 µs |
| Diagnostics | yes |
| Open-circuit recognition | yes |
| Short-circuit detection | > 6.5 mA |
| Standard digital | |
| Number of channels | max. 2 |
| Function | trigger output |
| Load type | ohmic |
| Connection technology | 2-wire |
| Specification | potential-free |
| Signal range | Nominal | max. 24 V DC |
| Signal range | Technical | max. 28.8 V DC |
| Output current | max. 150 mA |
| Switching times | TON | typ. 1.4 ms |
| Switching times | TOFF | typ. 0.2 ms |
| Breaking energy | Inductive | < 100 mJ |
| Position interface | ED3362 |
|---|---|
| Microincrements | no |
| XFC | ED3362 |
|---|---|
| Distributed clocks | no |
| Timestamp | no |
| Oversampling | no |
| Supply and electrical isolation | ED3362 |
|---|---|
| Electronics | Supply voltage | via E-bus |
| E-bus | Current consumption | typ. 100 mA |
| Power contacts | Input voltage | 24 V DC (-15 %/+20 %) |
| Power contacts | Current carrying capacity | max. 10 A DC |
| Power contacts | Current consumption | load-dependent |
| Power contacts | Output voltage | corresponds to Power contacts | input voltage |
| Electrical isolation | Channel/channel | no |
| Electrical isolation | Channel/bus | functional, 707 V DC type test |
| Environmental conditions | ED3362 |
|---|---|
| Operating temperature | -25…+55°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Installation position | variable |
| Standards and approvals | ED3362 |
|---|---|
| Vibration resistance | conforms to EN 60068-2-6 |
| Shock resistance | conforms to EN 60068-2-27 |
| EMC immunity | conforms to EN 61000-6-2 |
| EMC emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | cULus (in preparation) |
| Housing data | ED-12-16pin |
|---|---|
| Weight | 60 g |
| Protection rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (single) | 15 mm |
| Dimensions | Width (lined up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/back wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/terminal | double slot and key connection |
| Plug-in wiring level | no |
| Connection technology | push-in |
| Connection cross-section | Solid wire | 0.08…1.5 mm² |
| Connection cross-section | Stranded wire | 0.25…1.5 mm² |
| Connection cross-section | With ferrule | 0.14…0.75 mm² |
| Connection cross-section AWG | Solid wire | AWG28…16 |
| Connection cross-section AWG | Stranded wire | AWG22…16 |
| Connection cross-section AWG | With ferrule | AWG26…19 |
| Stripping length | 8…9 mm |
| Power contact | "+" (left) | yes |
| Power contact | "+" (rechts) | yes |
| Power contact | "-" (left) | yes |
| Power contact | "-" (right) | yes |
| Power contact | "⏚" (left) | no |
| Power contact | "⏚" (right) | no |
| Insertion lock for power contact “⏚” | yes |
