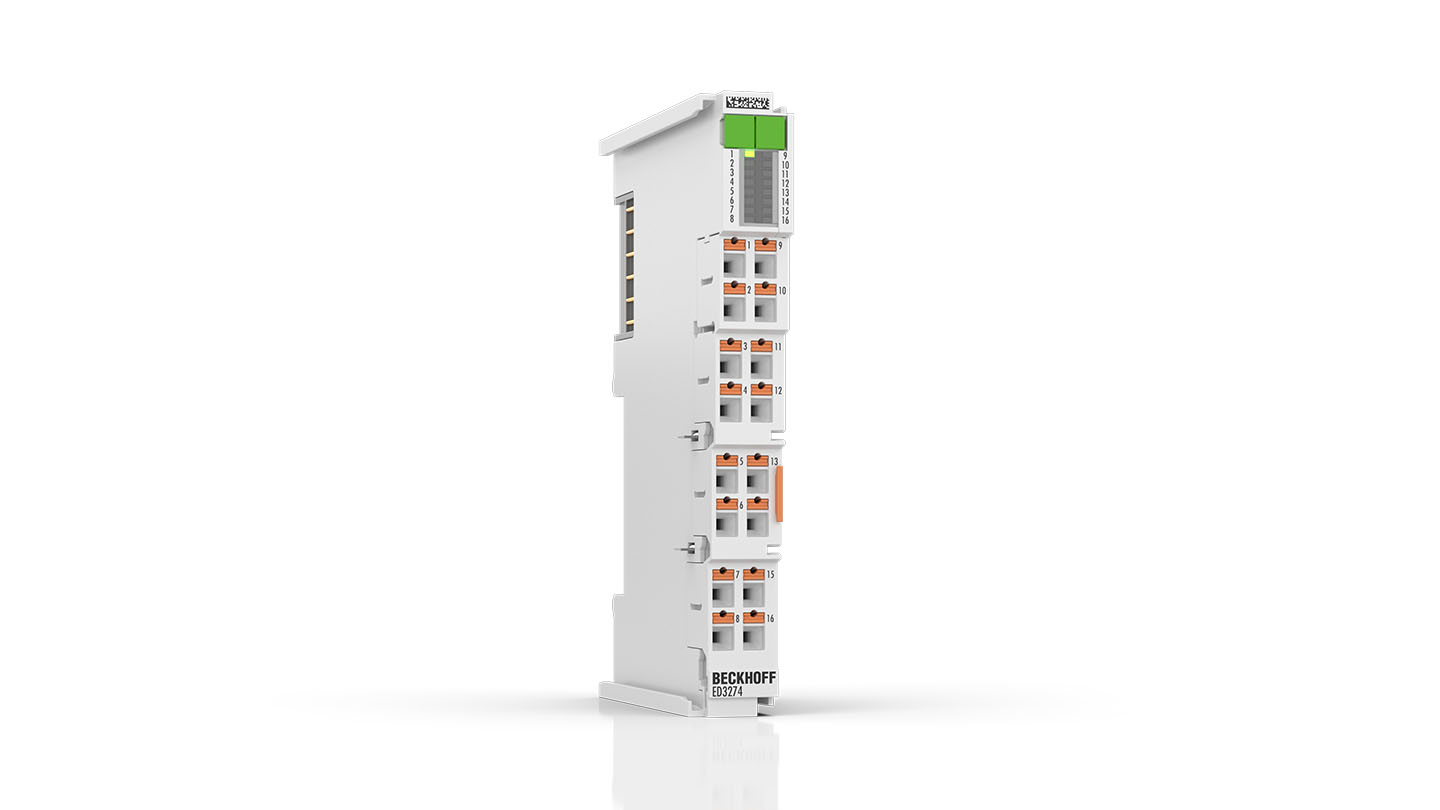

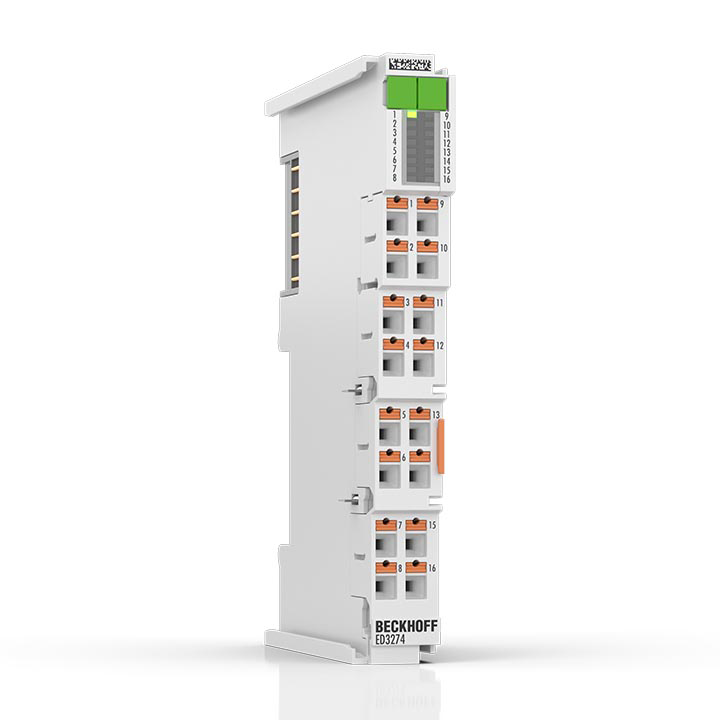

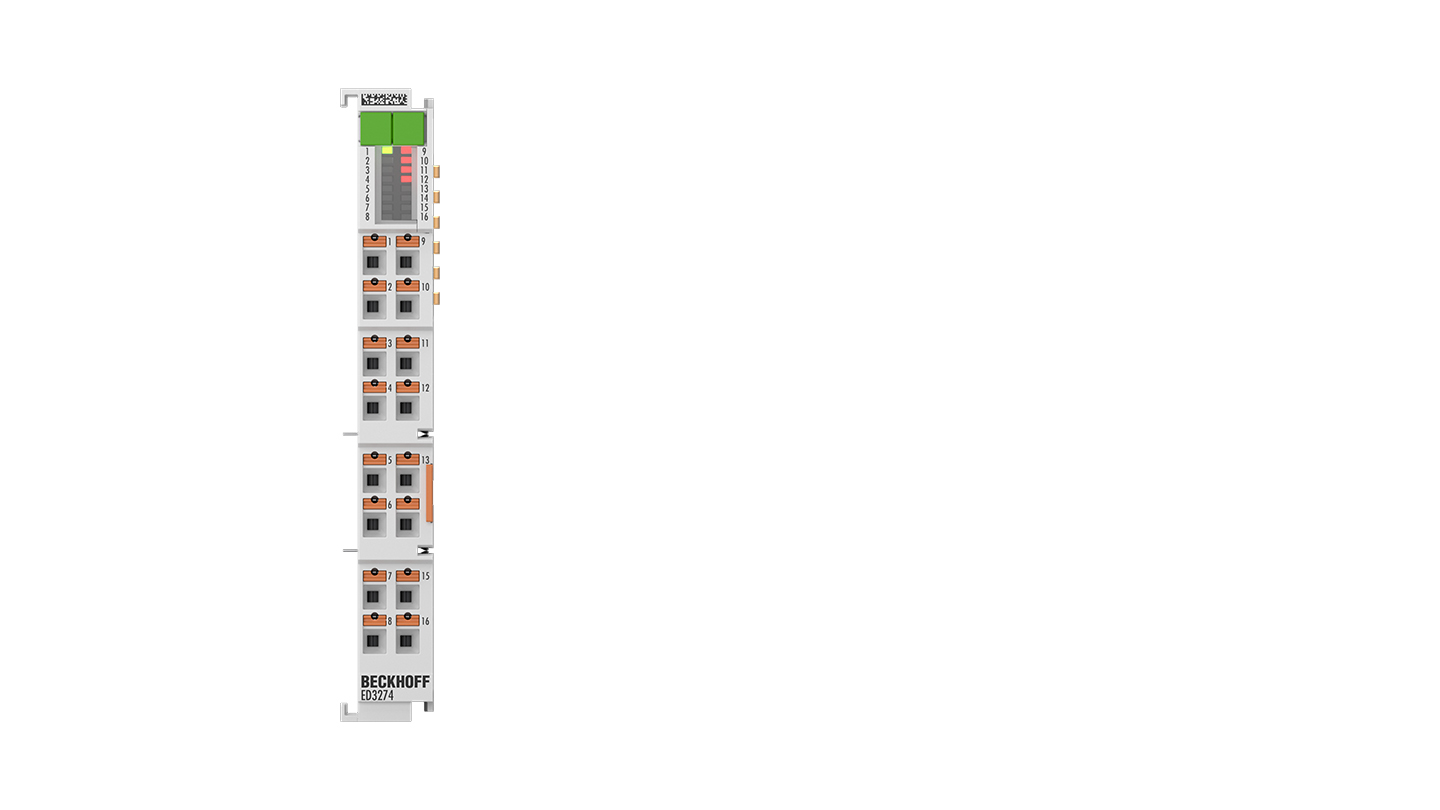

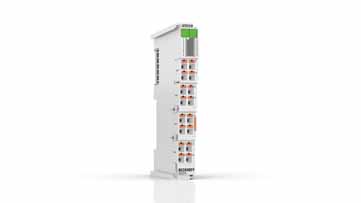

ED3274 | EtherCAT Terminal, 4-channel analog input, temperature, RTD, TC, push-in
ED3274 | EtherCAT Terminal, 4-channel analog input, temperature, RTD, TC, push-in
–
–
–
–
–
–
–
Ch. 2 error
Ch. 3 error
Ch. 4 error
–
–
–
–
+24 V DC
0 V
ED3274 | EtherCAT Terminal, 4-channel analog input, temperature, RTD, TC, push-in
ED3274 | EtherCAT Terminal, 4-channel analog input, temperature, RTD, TC, push-in
The ED3274 analog input terminal enables the measurement of temperatures with resistance thermometers (RTD) or thermocouples (TC) on four channels. Each channel can be configured individually, allowing for mixed operation of RTD and TC. The measured values can be output as resistance or voltage values or converted directly into a temperature. All common sensor types are supported.
For temperature measurement with resistance thermometers, sensors in a 2, 3, or 4-wire system can be connected. A cold junction compensation is integrated in the terminal for temperature measurement with thermocouples. This internal measurement can be switched off so that an external cold junction can be used.
The ED-series EtherCAT Terminals have push-in connection technology which makes wiring easy and tool-free.
Product status:
product announcement | estimated market release 2nd quarter 2026
Product information
| General | ED3274 |
|---|---|
| Number of channels | Total | 4 |
| Internal communication protocol | EtherCAT |
| Analog input | ED3274 |
|---|---|
| Resistance thermometer (RTD) | |
| Number of channels | max. 4 |
| Sensor types | Pt100, Pt500, Pt1000, Ni100, Ni120, Ni1000, KTY sensors (types see documentation) |
| Connection technology | 2-wire, 3-wire, 4-wire |
| Resolution | Technical | 20 bit |
| Resolution | Process data | 0.01°C |
| Display | Process data | REAL32, INT16 |
| ADC conversion method | delta-sigma |
| Conversion type | simultaneous |
| Conversion time | 10 ms |
| Conversion rate | 100 sps |
| Ground reference | differential |
| Thermocouple | |
| Number of channels | max. 4 |
| Sensor types | type B, C, E, J, K, L, N, R, S, T, U |
| Connection technology | 2-wire |
| Resolution | Technical | 16 bit |
| Resolution | Process data | 0.01°C |
| Display | Process data | REAL32, INT16 |
| ADC conversion method | delta-sigma |
| Conversion type | simultaneous |
| Conversion time | 10 ms |
| Conversion rate | 100 sps |
| Signal range | Technical | -100….+100 mV |
| Ground reference | differential |
| XFC | ED3274 |
|---|---|
| Distributed clocks | no |
| Timestamp | no |
| Oversampling | no |
| Supply and electrical isolation | ED3274 |
|---|---|
| Electronics | Supply voltage | via E-bus, via power contacts |
| Power contacts | Input voltage | 24 V DC (-15 %/+20 %) |
| Power contacts | Current carrying capacity | max. 10 A DC |
| Power contacts | Current consumption | typ. 40 mA |
| Power contacts | Output voltage | corresponds to Power contacts | input voltage |
| Electrical isolation | Channel/channel | no |
| Electrical isolation | Channel/bus | functional, 707 V DC type test |
| Environmental conditions | ED3274 |
|---|---|
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Installation position | variable |
| Standards and approvals | ED3274 |
|---|---|
| Vibration resistance | conforms to EN 60068-2-6 |
| Shock resistance | conforms to EN 60068-2-27 |
| EMC immunity | conforms to EN 61000-6-2 |
| EMC emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | cULus (in preparation) |
| Housing data | ED-12-16pin |
|---|---|
| Weight | 60 g |
| Protection rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (single) | 15 mm |
| Dimensions | Width (lined up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/back wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/terminal | double slot and key connection |
| Plug-in wiring level | no |
| Connection technology | push-in |
| Connection cross-section | Solid wire | 0.08…1.5 mm² |
| Connection cross-section | Stranded wire | 0.25…1.5 mm² |
| Connection cross-section | With ferrule | 0.14…0.75 mm² |
| Connection cross-section AWG | Solid wire | AWG28…16 |
| Connection cross-section AWG | Stranded wire | AWG22…16 |
| Connection cross-section AWG | With ferrule | AWG26…19 |
| Stripping length | 8…9 mm |
| Power contact | "+" (left) | yes |
| Power contact | "+" (rechts) | yes |
| Power contact | "-" (left) | yes |
| Power contact | "-" (right) | yes |
| Power contact | "⏚" (left) | no |
| Power contact | "⏚" (right) | no |
| Insertion lock for power contact “⏚” | yes |
