即插即用访问亚马逊网络服务

IOT 插件与 AWS 连接

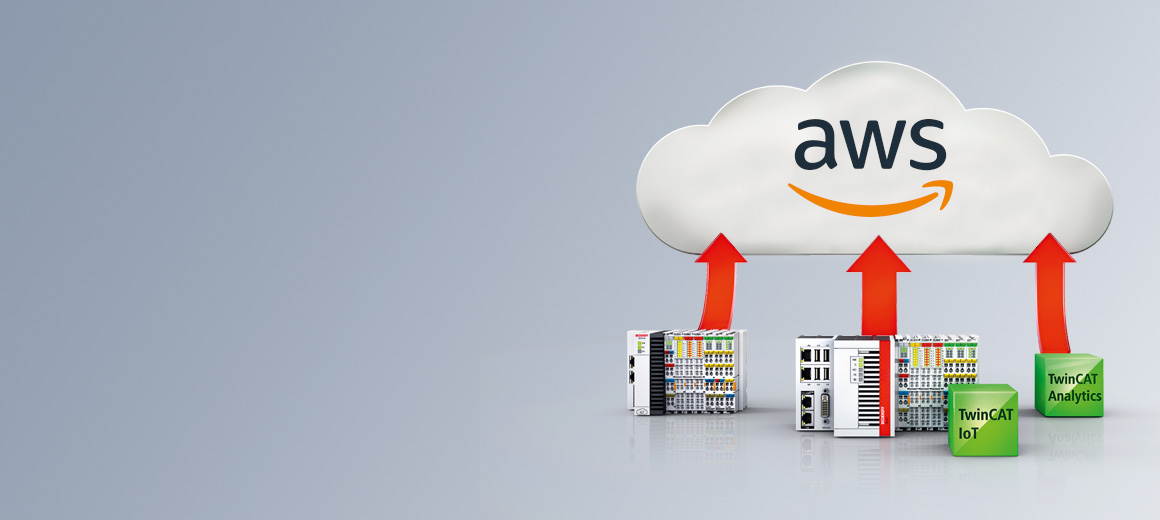

倍福物联网技术助力即插即用访问 AWS 云服务

随着信息技术和自动化技术的不断融合,基于云的通信和数据服务也正越来越多地用于工业自动化项目中。诸如大数据、数据挖掘和状态监测等应用除了传统的自动化控制之外,还可以应用到更卓越、更具有前瞻性的自动化解决方案中。倍福新推出的针对工业 4.0 和物联网的硬件及软件产品确保能够以最简单的方式实现这些先进的解决方案。

工业 4.0 与物联网战略对设备及服务的联网和通信能力提出严格要求。从传统的通信金字塔角度来看(图 1),若要实现这一切,必须要在现场层传感器和上一层之间交互大量数据。同样,PLC 控制系统之间的横向通信在现代化生产设施中也起着重要作用。基于 PC 的控制技术具有更加卓越的“横向通信能力”,也正因如此,已经成为当今自动化项目中的一个重要组成部分。随着最新的 TwinCAT IoT 解决方案的推出,广泛使用的 TwinCAT 3 工程和控制软件为工业 4.0 概念及物联网通信提供了理想的技术基础。此外,倍福还推出了诸如 EK9160 物联网耦合器等兼容物联网的全新 I/O 组件,它们具有易于配置的特点,能够无缝集成到亚马逊网络服务(AWS)生态系统中。

AWS IoT 为将设备数据安全、高效地传输至 AWS 提供了理想的通信平台。TwinCAT IoT 以及 EK9160 支持 AWS IoT,并能以最小的配置工作量使用其功能。借助倍福的 TwinCAT HMI(可以托管在亚马逊 EC2 实例中),可以通过 MMQTT Server Extension 连接设备数据,并通过 HTML5 技术进行可视化,因此可以在任一台设备上显示。

截至到目前为止,倍福物联网技术获得的荣誉:

产品

TE2000 | TwinCAT 3 HMI Engineering

TE2000 | TwinCAT 3 HMI Engineering

The TwinCAT 3 HMI (human-machine interface) integrates itself into the well-known Visual Studio® development environment. Based on the latest web technologies (HTML5, JavaScript), it allows the user to develop platform-independent user interfaces that are responsive, i.e. they automatically adapt to the screen resolution, size and orientation at hand. With the graphical WYSIWYG (what-you-see-is-what-you-get) editor, controls can be easily arranged via drag-and-drop and linked with real-time variables.

TF2000 | TwinCAT 3 HMI Server

TF2000 | TwinCAT 3 HMI Server

The TwinCAT 3 HMI Server is a modular web server that provides the human-machine interface (HMI). It supports all CPU classes from ARM to multi-core. The powerful architecture enables a wide range of application scenarios from local panel solutions to multi-client, multi-server and multi-runtime concepts.

TF6720 | TwinCAT 3 IoT Data Agent

TF6720 | TwinCAT 3 IoT Data Agent

The TwinCAT 3 IoT Data Agent provides bi-directional IoT communication functions in the form of a gateway application that can be configured and operated independently from the TwinCAT real-time environment.

TF6730 | TwinCAT 3 IoT Communicator

TF6730 | TwinCAT 3 IoT Communicator

The TwinCAT 3 IoT Communicator makes it possible to easily transmit process data to multiple end devices, monitor status changes, and send information back to the machine. The IoT Communicator is also ideal for use in building automation. Widgets can be used to display values for lamps, fans, air conditioning systems and other components.

EK9160 | IoT 总线耦合器

EK9160 | IoT 总线耦合器

EK9160 耦合器不需要编写控制程序就可以直接将 EtherCAT I/O 的数据传到物联网(IoT)。它根据不同的 IoT 通信协议转换 E-bus 信号,通过这种方式将 I/O 数据简单、标准化地集成到基于云的通信和数据服务中。既不需要控制器,也不需要事先编程。I/O 数据传输的参数设置可以通过便于用户使用的网页对话框来完成,支持任何浏览器访问。所需的云服务和安全功能(身份验证,加密等)也可以很方便地使用浏览器进行配置。参数设置完成后,耦合器自动发送数字量或模拟量 I/O 值给云服务,包括时间戳。
