Mar 3, 2017

Die Servoklemmen der Serie EL72xx

Complete servo drive in a compact EtherCAT Terminal

The servo terminals from the EL72xx series for the Beckhoff EtherCAT I/O system integrate a complete servo amplifier for motors up to 490 W in a standard HD terminal housing.

More about this video

紧凑型驱动技术

紧凑型驱动技术

小型低压驱动器既可为实现传统操作,也可为实现无控制柜操作提供解决方案。

EL7201-0010 | EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 2.8 A, OCT

EL7201-0010 | EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 2.8 A, OCT

The EL7201-0010 servomotor EtherCAT Terminal with integrated absolute value interface offers high servo performance in a very compact design. The fast control technology, based on field-oriented current and PI speed control, supports fast and highly dynamic positioning tasks. The monitoring of numerous parameters, such as overvoltage and undervoltage, overcurrent, terminal temperature or motor load via the calculation of a I²T model, offers maximum operational reliability. EtherCAT, as a high-performance system communication, and CAN-over-EtherCAT (CoE), as the application layer, enable ideal interfacing with PC-based control technology. The latest power semiconductors guarantee minimum power loss and enable feedback into the DC link when braking. 16 LEDs indicate status, warning and error messages as well as possibly active limitations.

AM8100 | 针对紧凑型驱动技术的同步伺服电机

AM8100 | 针对紧凑型驱动技术的同步伺服电机

AM8100 电机是专为在狭小的安装空间内使用紧凑型驱动组件而设计的。

AM8131 | Servomotor 1.3 Nm (M0), F3 (72 mm)

AM8131 | Servomotor 1.3 Nm (M0), F3 (72 mm)

The AM8131 low-voltage servomotor is suitable for highly dynamic drive solutions in compact design in the voltage range of < 50 V DC. The standstill torque of the motor depends on the winding and is in the range of < 1.5 Nm. It is available with the OCT feedback system (absolute encoder). The low-voltage servomotor with flange code F3 (72 mm) and motor length 1 has a shaft diameter b = 14 k6 and a free shaft end of d = 30 mm.

AM8000 | 伺服电机

AM8000 | 伺服电机

AM8000 系列同步伺服电机采用单电缆技术,适用于对动态、速度和性能要求严苛的应用。

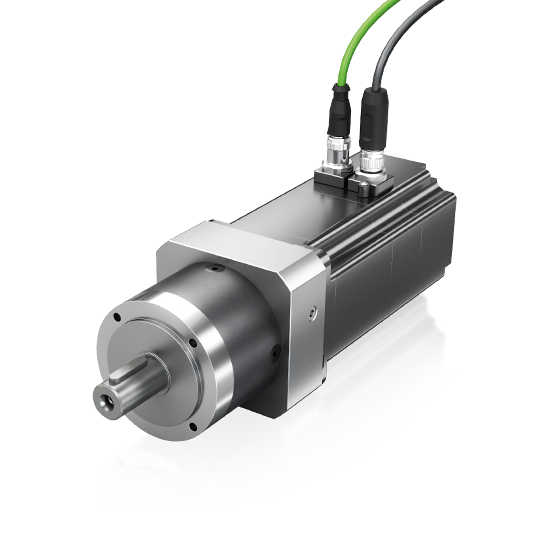

AG2250 | 用于伺服电机和步进电机的行星齿轮减速机

AG2250 | 用于伺服电机和步进电机的行星齿轮减速机

AG2250 齿轮减速机与紧凑型驱动电机最佳匹配,有直线和直角两种样式可选。
