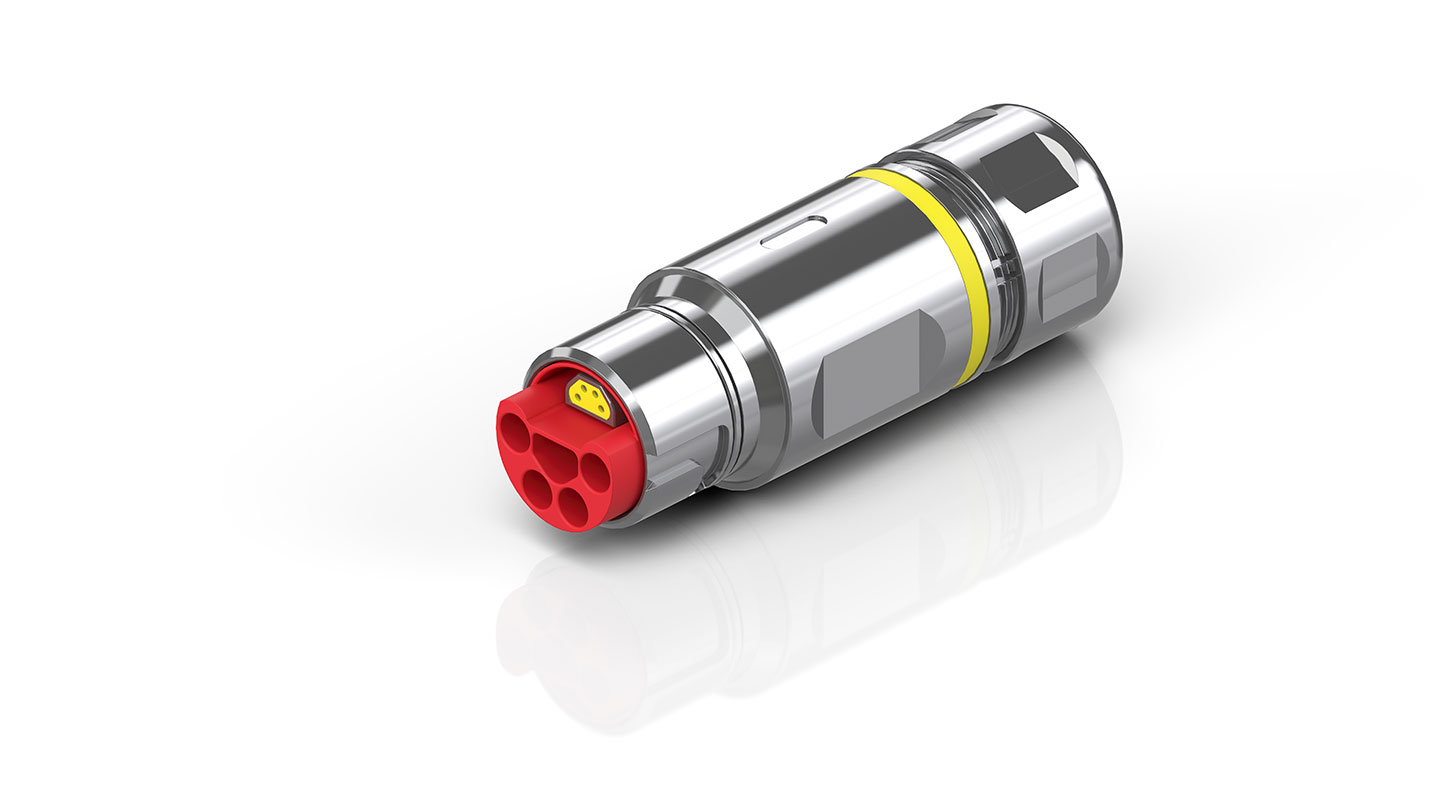

ZS7300-A005 | Socket, field assembly, EtherCAT/Ethernet, IP65/67, shielded
ZS7300-A005 | Socket, field assembly, EtherCAT/Ethernet, IP65/67, shielded
Product information
| Technical data | ZS7300-A005 |
|---|---|
| Shielding | yes |
| Installation size | B23 |
| Connector type | socket |
| Contact type | male+female |
| Number of positions (face) | pins 4+PE+4 |
| Coding | EtherCAT-coded |
| Mating cycles | ≥ 100 |
| Wire termination | crimp connection |
| Max. wire cross-section (power) | AWG12/4.0 mm² |
| Max. wire cross-section (Ethernet) | AWG22/0.34 mm² |
| Max. cable outer diameter | 10.0…11.5 mm |
For further technical details, please refer to the data sheet.
| Ordering information | |
|---|---|
| ZS7300-A005 | B23, socket, metal, shielded, crimp, straight, male+female, 5+4-pin, EtherCAT-coded, IP65/67 |
