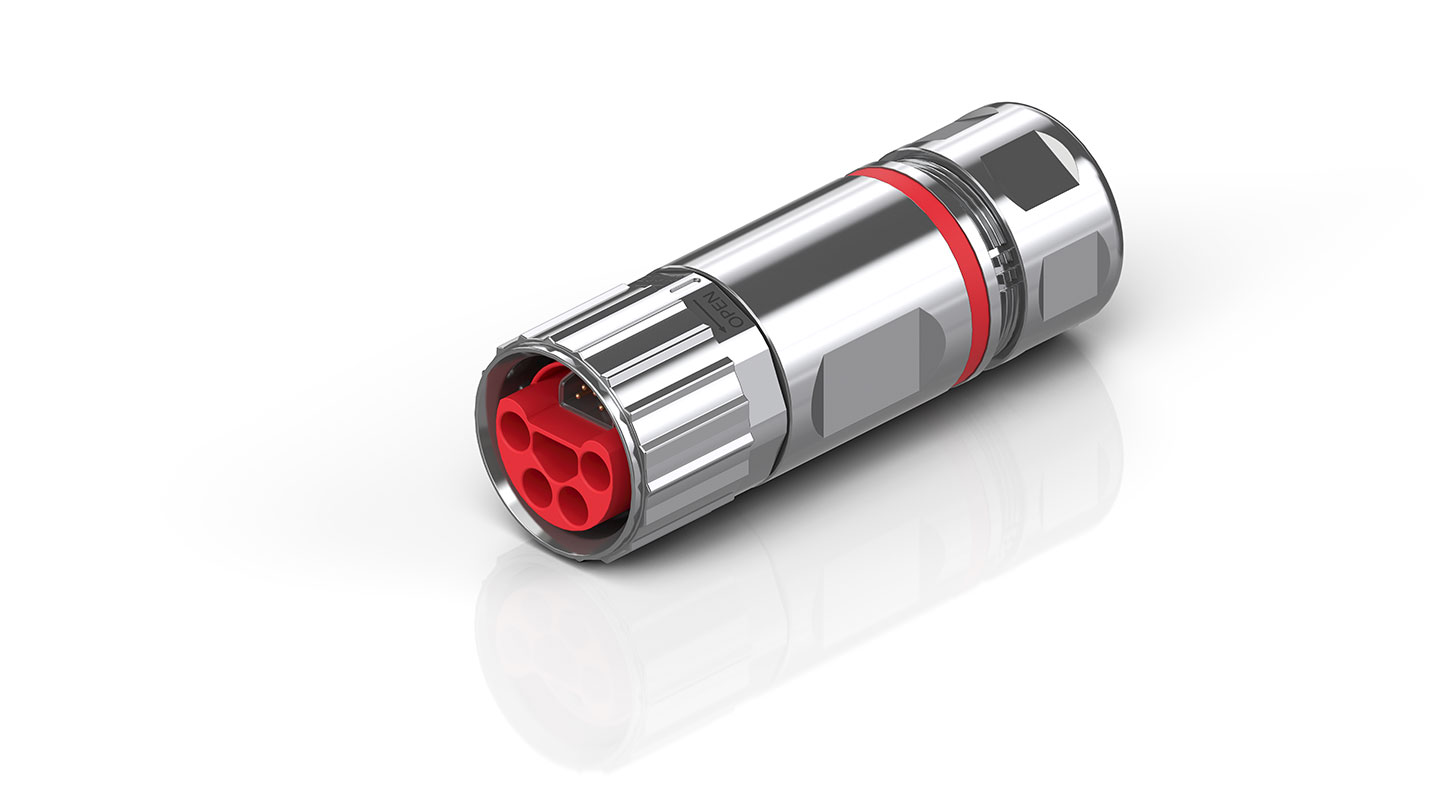

ZS7300-0001 | Plug, field assembly, EtherCAT P, IP65/67, shielded
ZS7300-0001 | Plug, field assembly, EtherCAT P, IP65/67, shielded
Straight, shielded, EtherCAT P-coded B23 plug for EtherCAT P cables.
Product status:
regular delivery
Product information
| Technical data | ZS7300-0001 |
|---|---|
| Shielding | yes |
| Installation size | B23 |
| Connector type | plug |
| Contact type | male+male |
| Number of positions (face) | pins 4+PE+4 |
| Coding | EtherCAT P-coded |
| Mating cycles | ≥ 100 |
| Wire termination | crimp connection |
| Max. wire cross-section (power) | AWG12/4.0 mm² |
| Max. wire cross-section (Ethernet) | AWG22/0.34 mm² |
| Max. cable outer diameter | 13.0…15.0 mm, 15.0…16.0 mm |
For further technical details, please refer to the data sheet.
| A1 | approx. 80.0 mm |
| A2 | 23.8 mm |
| Ordering information | |
|---|---|
| ZS7300-0001 | B23, plug, metal, shielded, crimp, straight, male+male, 5+4-pin, EtherCAT P-coded, IP65/67 |
