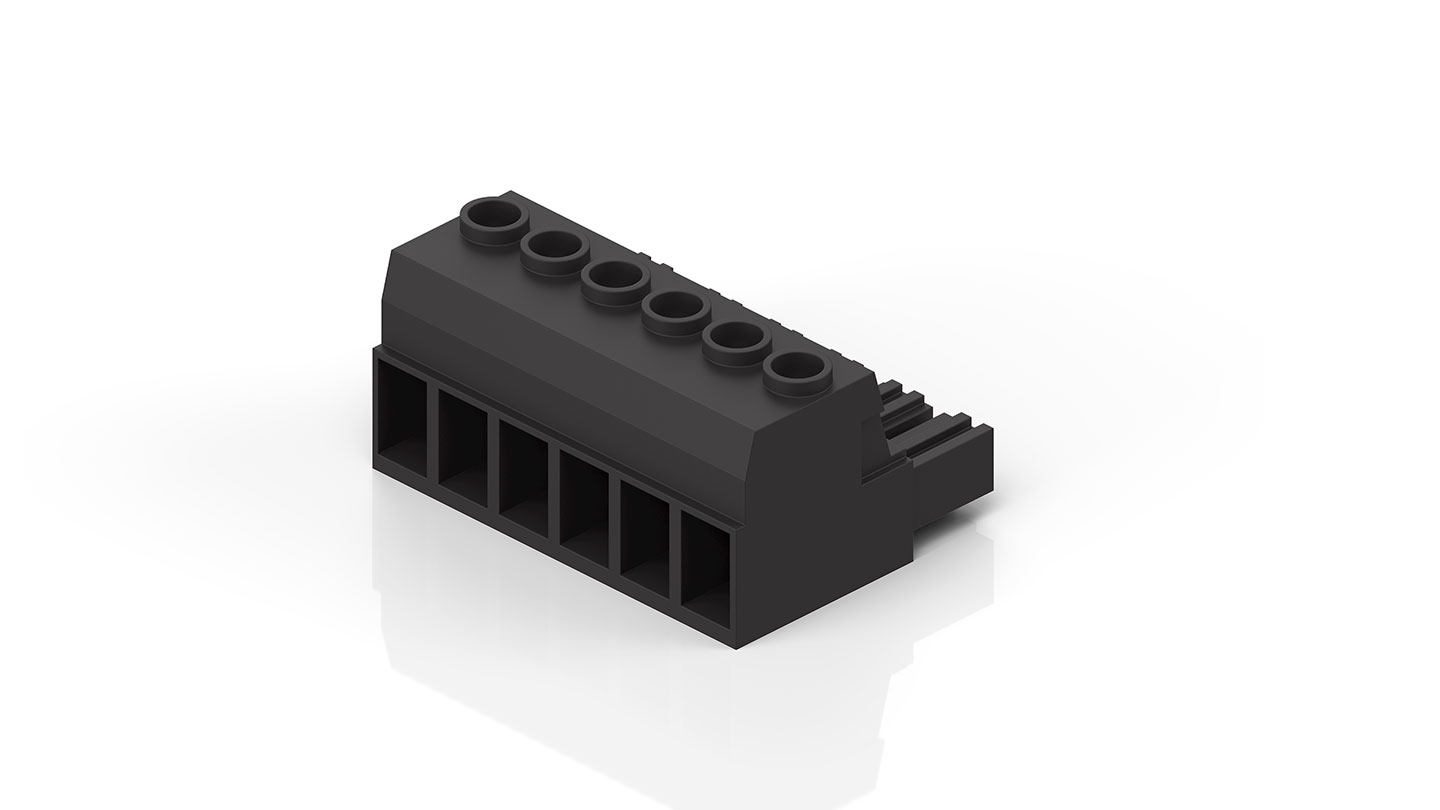

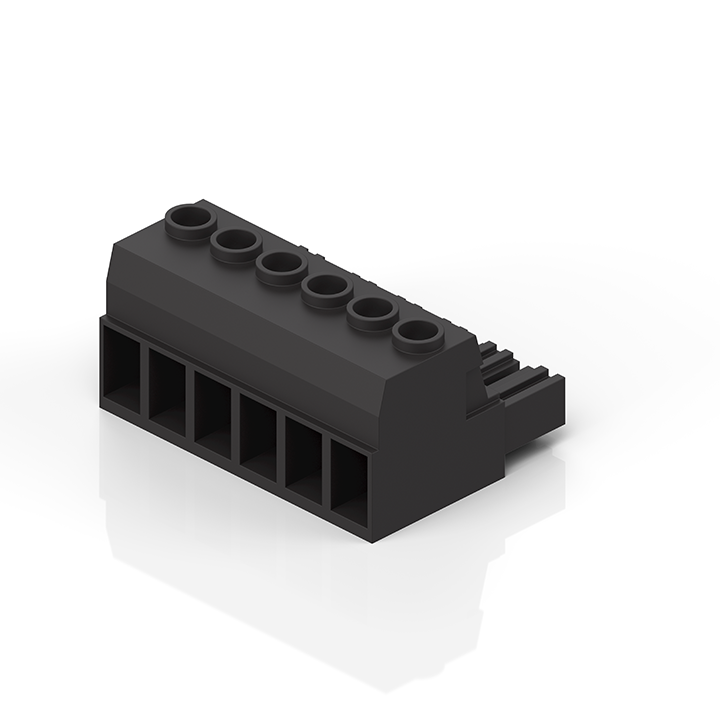

ZS4800-2042 | Connector for AX8640: 24 V DC supply
ZS4800-2042 | Connector for AX8640: 24 V DC supply
connector for AX8640: X02 24 V DC supply, ext. braking resistor, socket, 6-pin, max. 16 mm²
Product status:
regular delivery
Product information
| Technical data | ZS4800-2042 |
|---|---|
| Installation size | Pitch dimension 10.16 mm |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | 6-pin |
| Mating cycles | 50 |
| Wire termination | Clamping yoke connection |
| Max. wire cross-section | AWG22…AWG4 (0.2 mm²…16 mm²) |
For further technical details, please refer to the data sheet.
| Ordering information | ZS4800-2013 | Connectors |
|---|---|
| ZS4800-2042 | connector for AX8640: X02 24 V DC supply, ext. braking resistor, socket, 6-pin, max. 16 mm² |
