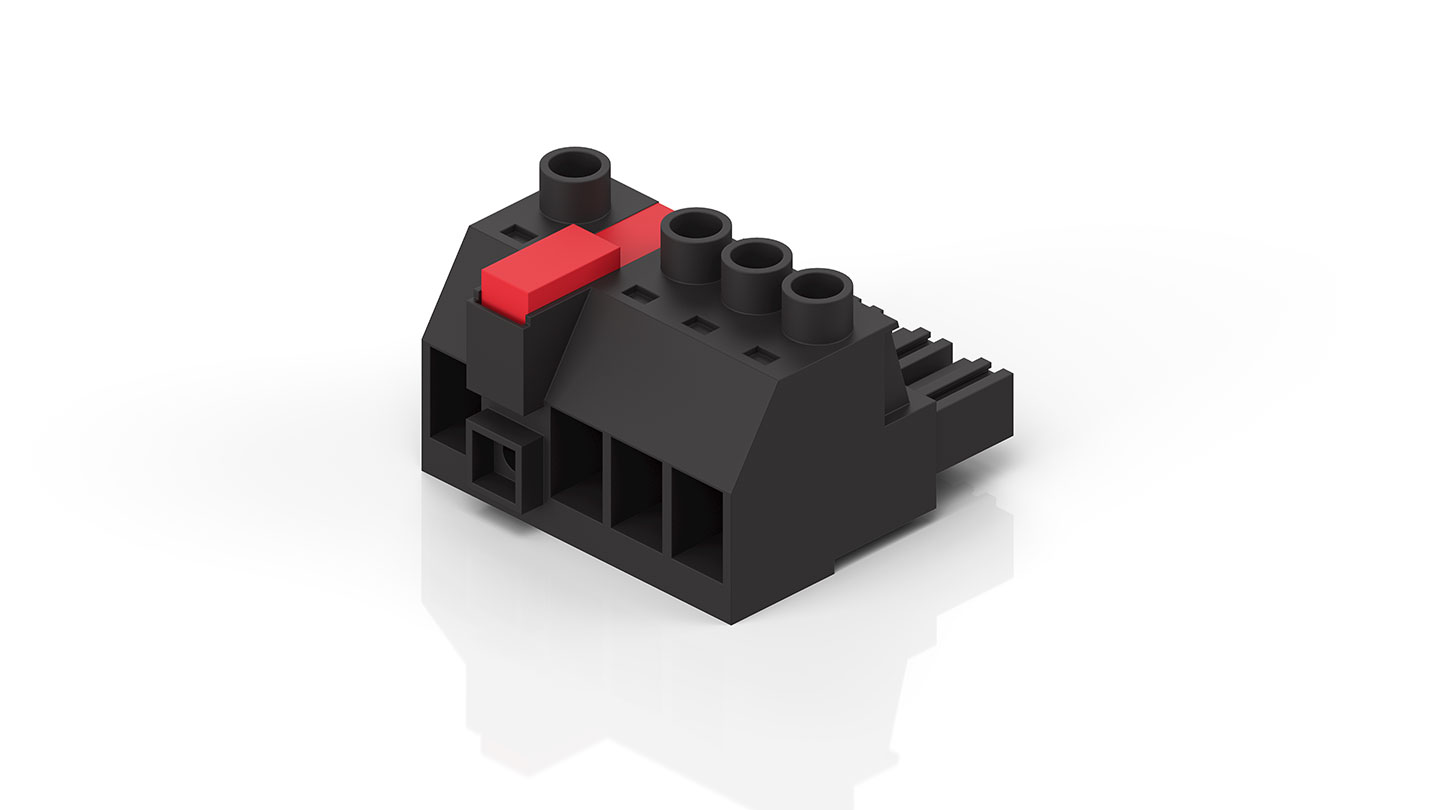

ZS4800-2041 | Connector for AX8640: mains input
ZS4800-2041 | Connector for AX8640: mains input
connector for AX8640: X07 mains input, socket, 4-pin, max. 16 mm²
Product status:
regular delivery
Product information
| Technical data | ZS4800-2041 |
|---|---|
| Installation size | Pitch dimension 10.16 mm |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | 4-pin |
| Mating cycles | 25 |
| Wire termination | Clamping yoke connection |
| Max. wire cross-section | AWG22…AWG4 (0.2 mm²…16 mm²) |
For further technical details, please refer to the data sheet.
| Ordering information | ZS4800-2013 | Connectors |
|---|---|
| ZS4800-2041 | connector for AX8640: X07 mains input, socket, 4-pin, max. 16 mm² |
