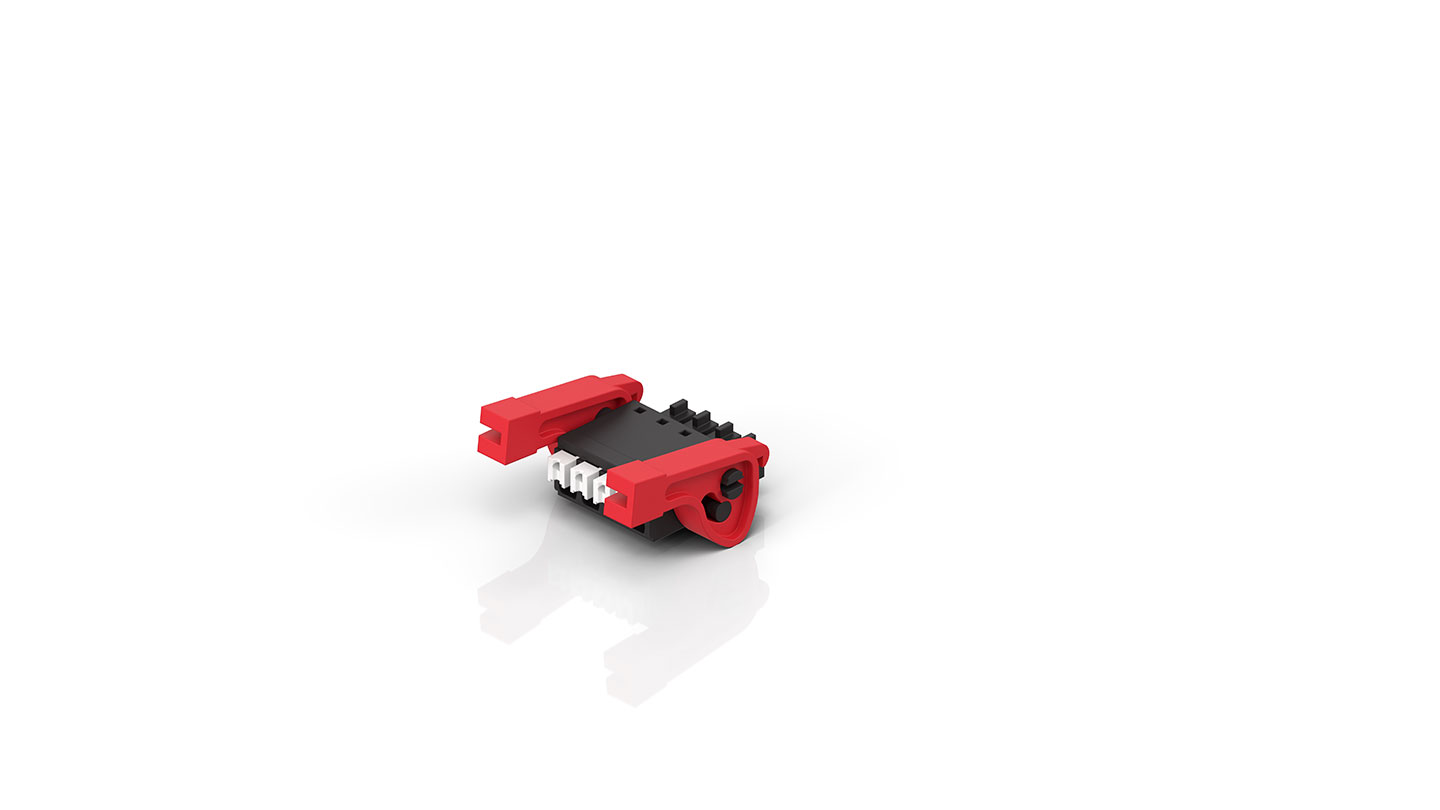

ZS4800-2015 | Connector for AX8000
ZS4800-2015 | Connector for AX8000
Product information
| Technical data | ZS4800-2015 |
|---|---|
| Installation size | Pitch dimension 3.81 mm |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | 4-pin |
| Mating cycles | 25 |
| Wire termination | Push-in |
| Max. wire cross-section | AWG26…AWG16 (0.14 mm²…1.5 mm²) |
For further technical details, please refer to the data sheet.
| Ordering information | ZS4800-2013 | Connectors |
|---|---|
| ZS4800-2015 | connector for AX8000: X15/X25 I/O connector plug, socket, 4-pin, max. 1 mm² |
