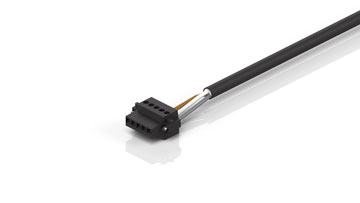

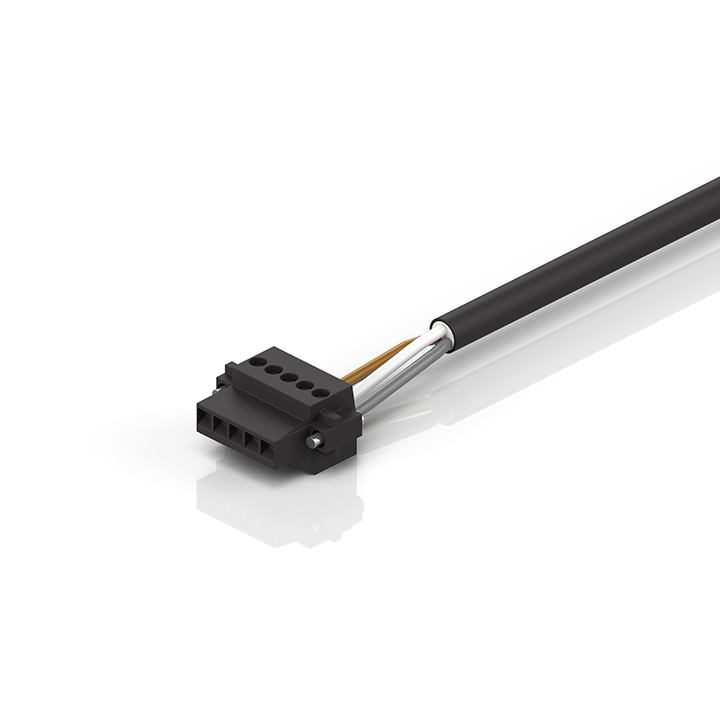

ZS4500-2064 | Plugs for AX5000, 60 to 170 A
ZS4500-2064 | Plugs for AX5000, 60 to 170 A
connector for AX5000: X14 motor brake and thermal protection contact, connector, socket, for 60…170 A
Product status:
regular delivery
Product information
| Technical data | ZS4500-2064 |
|---|---|
| Installation size | Pitch dimension 5.08 mm |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | 5-pin |
| Mating cycles | 25 |
| Wire termination | Clamping yoke connection |
| Max. wire cross-section | AWG26…AWG12 (0.13 mm²…4 mm²) |
For further technical details, please refer to the data sheet.

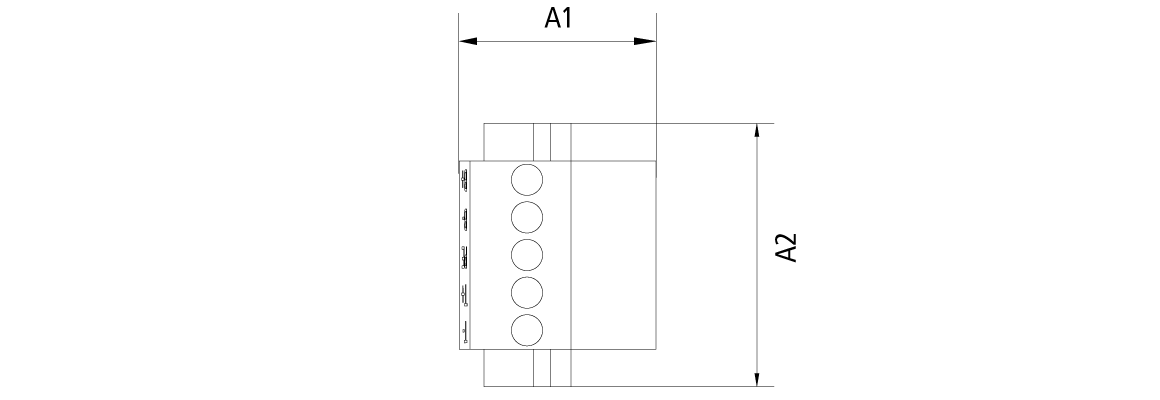

| A1 | 20.00 mm |
| A2 | 27.00 mm |
| Ordering information | ZS4500-20xx | Connectors |
|---|---|
| ZS4500-2064 | connector for AX5000: X14 motor brake and thermal protection contact, connector, socket, for 60…170 A |
(1) included in the scope of the AX5000 supply
