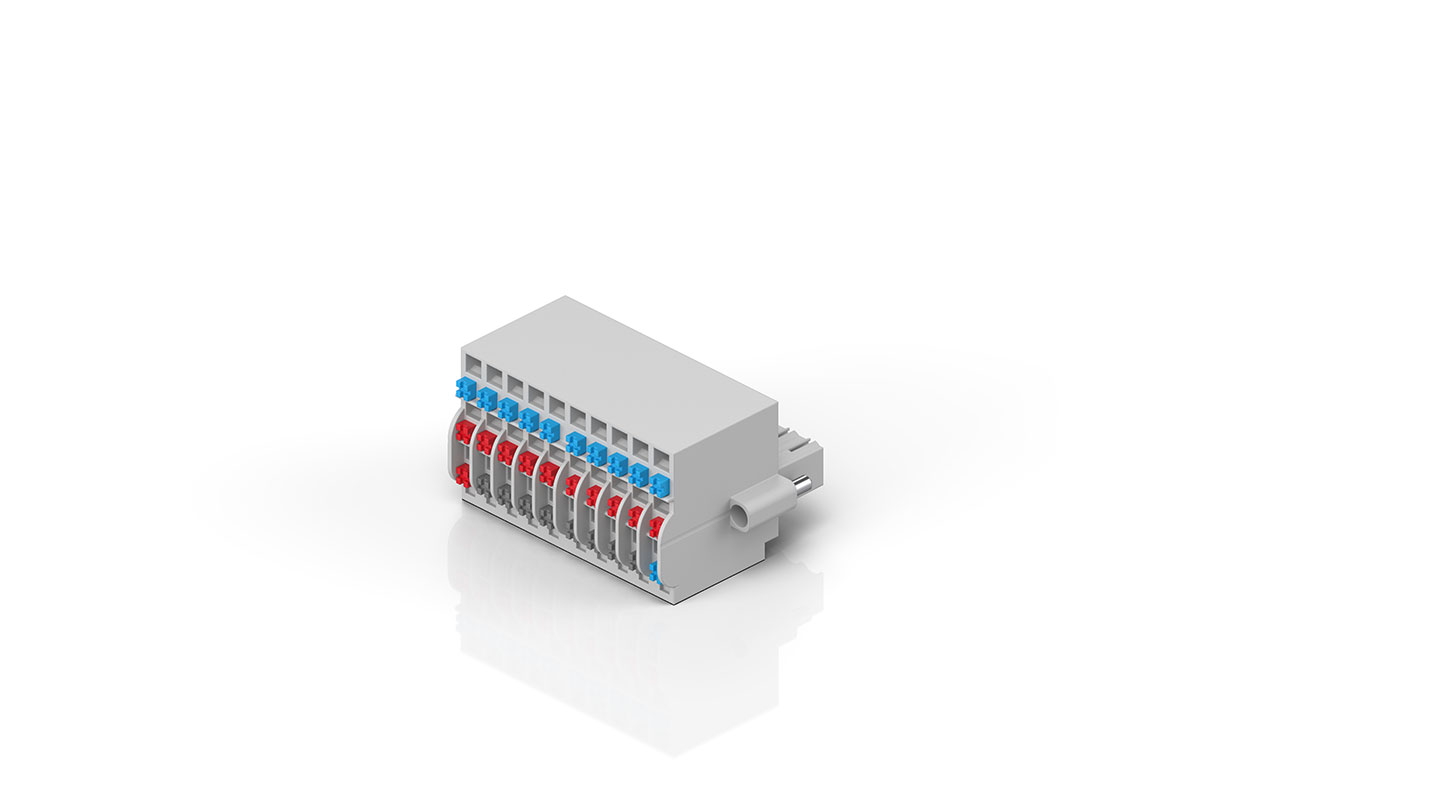

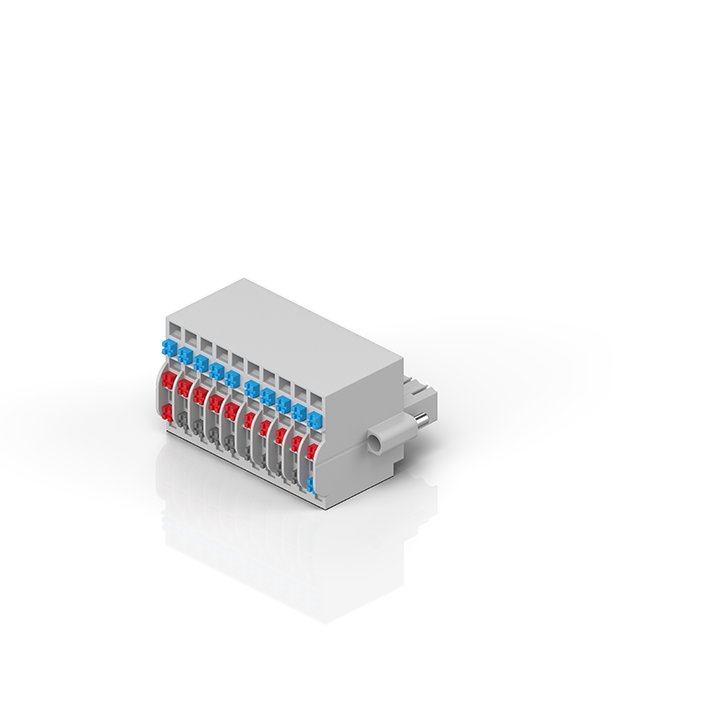

ZS4500-2008 | Plugs for AX5000, 1.5 to 25 A
ZS4500-2008 | Plugs for AX5000, 1.5 to 25 A
connector for AX5000: X06 BLIO connector, triple row with LED, max. 1.5 mm², for 1.5…170 A
Product status:
regular delivery
Product information
| Technical data | ZS4500-2008 |
|---|---|
| Installation size | Pitch dimension 3.50 mm |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | 3-row, 10-pin |
| Mating cycles | 25 |
| Wire termination | Push-in |
| Max. wire cross-section | AWG26…AWG14 (0.2 mm²…1.5 mm²) |
For further technical details, please refer to the data sheet.
| Ordering information | ZS4500-20xx | Connectors |
|---|---|
| ZS4500-2008 | connector for AX5000: X06 BLIO connector, triple row with LED, max. 1.5 mm², for 1.5…170 A |
