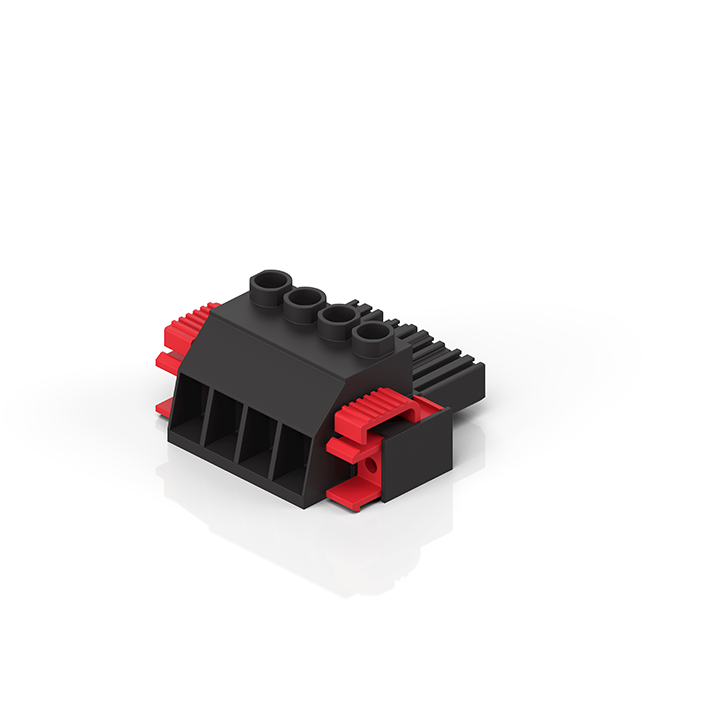

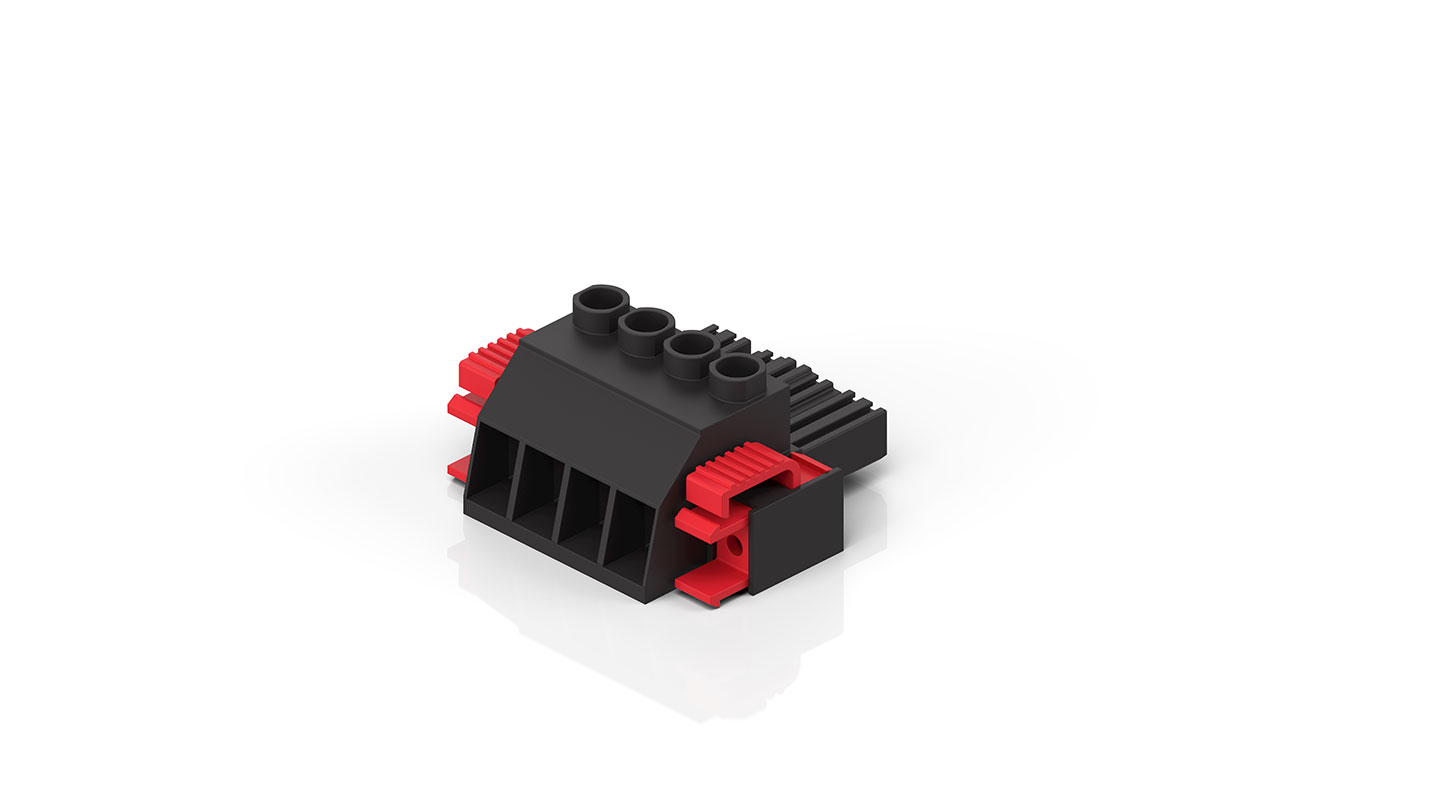

ZS4500-2001 | Plugs for AX5000, 1.5 to 25 A
ZS4500-2001 | Plugs for AX5000, 1.5 to 25 A
connector for AX5000: X01 mains input connector, 4-pin socket, max. 6 mm², for 1.5…25 A
Product status:
regular delivery
Product information
| Technical data | ZS4500-2001 |
|---|---|
| Installation size | Pitch dimension 7.62 mm |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | 4-pin |
| Mating cycles | 25 |
| Wire termination | Clamping yoke connection |
| Max. wire cross-section | AWG22…AWG10 (0.2 mm²…6 mm²) |
For further technical details, please refer to the data sheet.
| Ordering information | |
|---|---|
| ZS4500-2001 | connector for AX5000: X01 mains input connector, 4-pin socket, max. 6 mm², for 1.5…25 A |
included in the scope of the AX5000 supply
