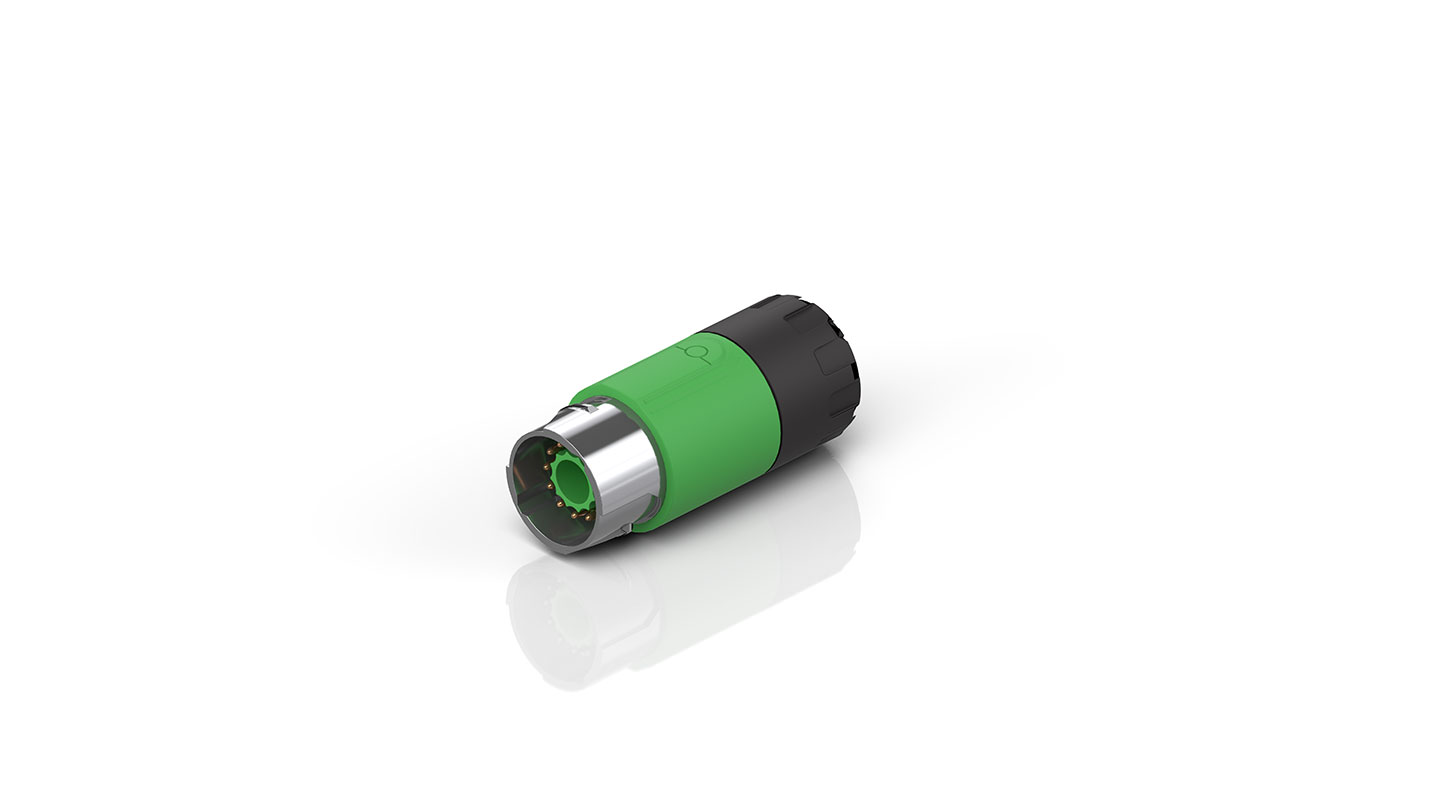

ZS4000-2116 | EMC resolver coupling
ZS4000-2116 | EMC resolver coupling
EMC resolver coupling, Series 615, socket, straight, male, 12-pin
Product status:
regular delivery
Product information
| Technical data | ZS4000-2116 |
|---|---|
| Installation size | itec® (Series 615) |
| Connector type | socket |
| Contact type | male |
| Number of positions (face) | 12-pin |
| Mating cycles | 500 |
| Wire termination | crimp connection |
For further technical details, please refer to the data sheet.
| A1 | 44.00 mm |
| A2 | 19.00 mm |
| Ordering information | |
|---|---|
| ZS4000-2116 | EMC resolver coupling, Series 615, socket, straight, male, 12-pin |
