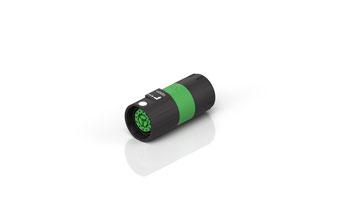

ZS4000-2105 | EMC resolver connector
ZS4000-2105 | EMC resolver connector
EMC resolver connector (female), Series 615, 12-pin, for resolver cable ZK453x-8110-xxxx (counterpart to motor socket AM801x, AM802x, AM803x, AM853x)
Product status:
regular delivery
Product information
| Technical data | ZS4000-2105 |
|---|---|
| Installation size | itec® (Series 615) |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | 12-pin |
| Mating cycles | 500 |
| Wire termination | crimp connection |
For further technical details, please refer to the data sheet.
| A1 | 44.00 mm |
| A2 | 19.00 mm |
| Ordering information | |
|---|---|
| ZS4000-2105 | EMC resolver connector (female), Series 615, 12-pin, for resolver cable ZK453x-8110-xxxx (counterpart to motor socket AM801x, AM802x, AM803x, AM853x) |
