ZS4000-2104 | EMC power connector
ZS4000-2104 | EMC power connector
EMC power connector (female), M23, 9-pin, for motor cable ZK450x-80x3-xxxx and ZK450x-80x4-xxxx (counterpart to motor socket AM8000/AM8500)
Product status:
regular delivery
Product information
| Technical data | ZS4000-2104 |
|---|---|
| Installation size | M23 |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | Power: 3+PE, Signal: 5 |
| Mating cycles | 500 |
| Wire termination | crimp connection |
For further technical details, please refer to the data sheet.

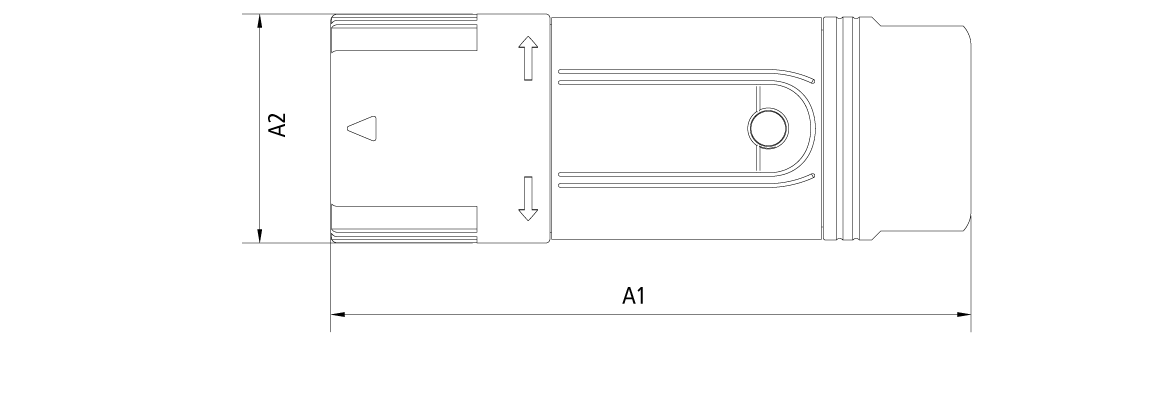

| A1 | 79.00 mm |
| A2 | 28.00 mm |
| Ordering information | ZS4000-20xx | Connectors |
|---|---|
| ZS4000-2104 | EMC power connector (female), M23, 9-pin, for motor cable ZK450x-80x3-xxxx and ZK450x-80x4-xxxx (counterpart to motor socket AM8000/AM8500/AL800/AL8100) |
