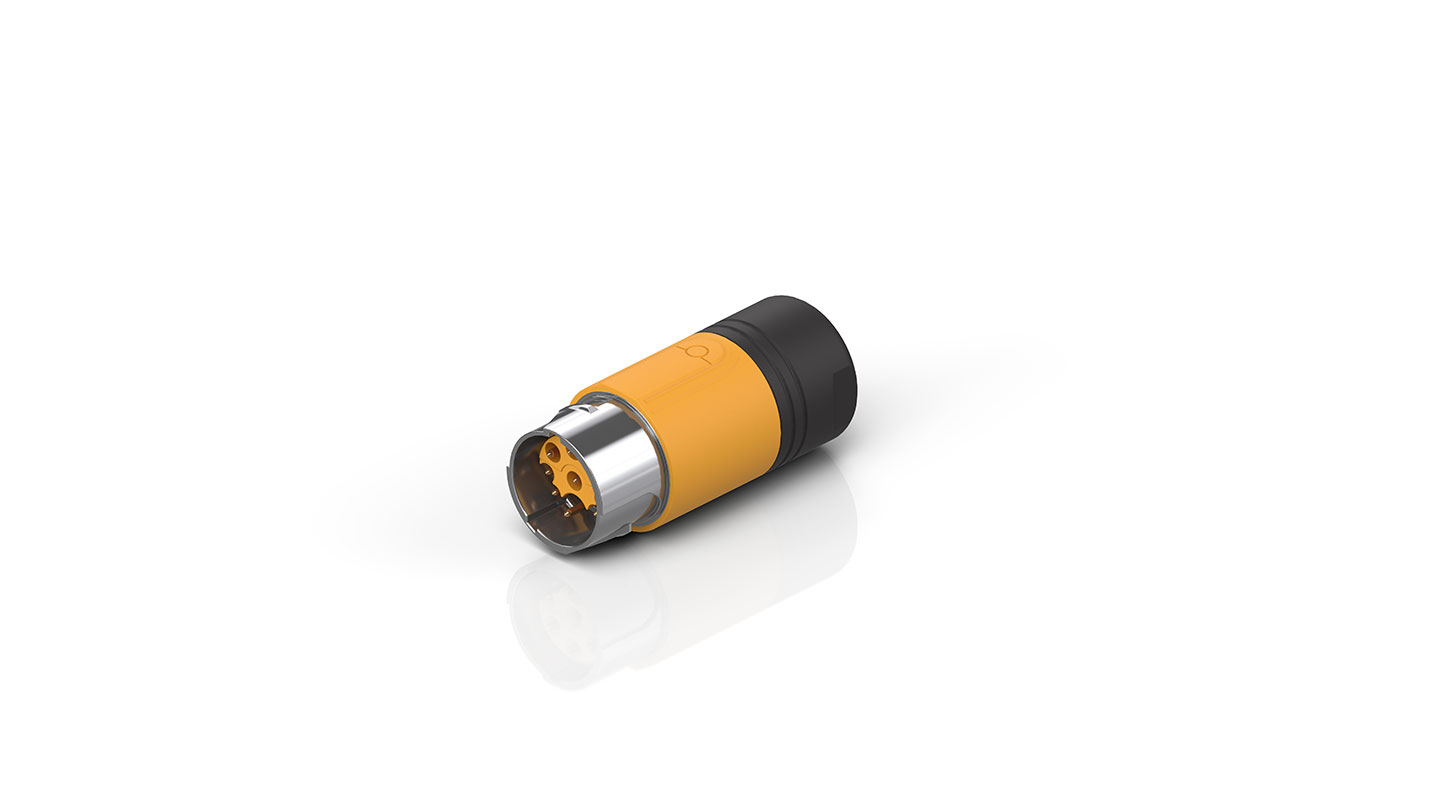

ZS4000-2102 | EMC power connector
ZS4000-2102 | EMC power connector
EMC power connector (female), Series 915, 9-pin, for motor cable ZK4704-0411-xxxx for resolver feedback (counterpart to motor socket AM3100/AM8100)
Product status:
regular delivery
Product information
| Technical data | ZS4000-2102 |
|---|---|
| Installation size | itec® (Series 915) |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | Power: 3+PE, Signal: 5 |
| Mating cycles | 500 |
| Wire termination | crimp connection |
For further technical details, please refer to the data sheet.

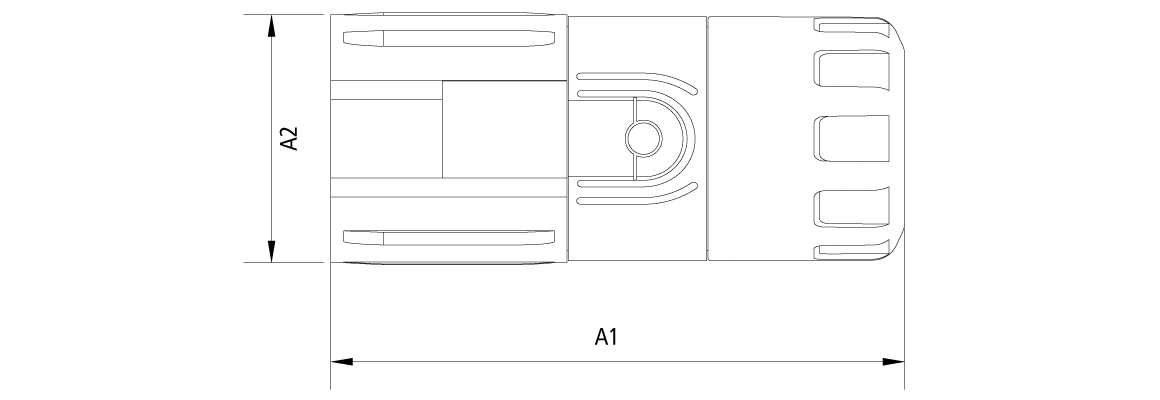

| A1 | 44.00 mm |
| A2 | 19.00 mm |
| Ordering information | |
|---|---|
| ZS4000-2102 | EMC power connector (female), Series 915, 9-pin, for motor cable ZK4704-0411-xxxx for resolver feedback (counterpart to motor socket AM3100/AM8100) |
