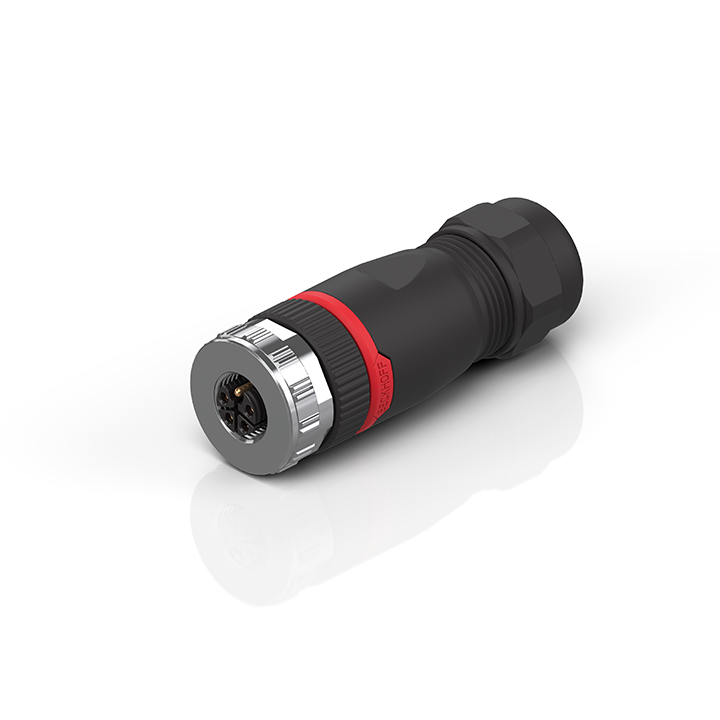

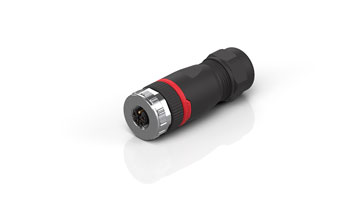

ZS2020-6720 | M12, power, field assembly, socket, straight, female, 5-pin, L-coded, IP67
ZS2020-6720 | M12, power, field assembly, socket, straight, female, 5-pin, L-coded, IP67
ZS2020-6720 | M12, power, field assembly, socket, straight, female, 5-pin, L-coded, IP67
ZS2020-6720 | M12, power, field assembly, socket, straight, female, 5-pin, L-coded, IP67
Product information
| Technical data | ZS2020-6720 |
|---|---|
| Installation size | M12 |
| Connector type | socket |
| Contact type | female |
| Number of positions (face) | 5-pin |
| Coding | L-coded |
| Rated current | 16 A at 40°C with 2.5 mm² wires (according to IEC 61076-2-111) |
| Rated voltage | 63 V (according to IEC 61076-2-111) |
| Recommended torque, nut | 0.6 Nm |
| Mating cycles | ≥ 100 (according to IEC 60512-9a) |
| Wire termination | screw connection |
| Max. wire cross-section | AWG14 (2.5 mm²) |
| Max. cable outer diameter | 8.0…12.0 mm |
For further technical details, please refer to the data sheet.

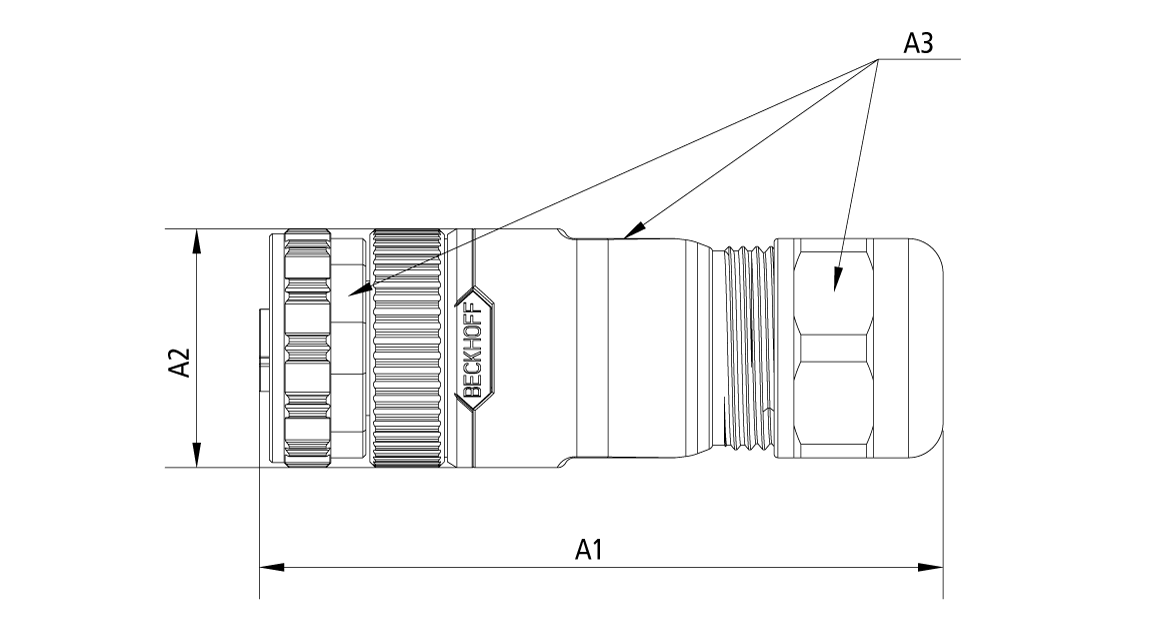

| A1 | ~68 mm |
| A2 | Ø 24 mm |
| A3 | AF22 |
| Ordering information | |
|---|---|
| ZS2020-6720 | socket field assembly, power, IP67, M12, straight, female, 5-pin, L-coded, 2.5 mm², Ø 7…11 mm |
