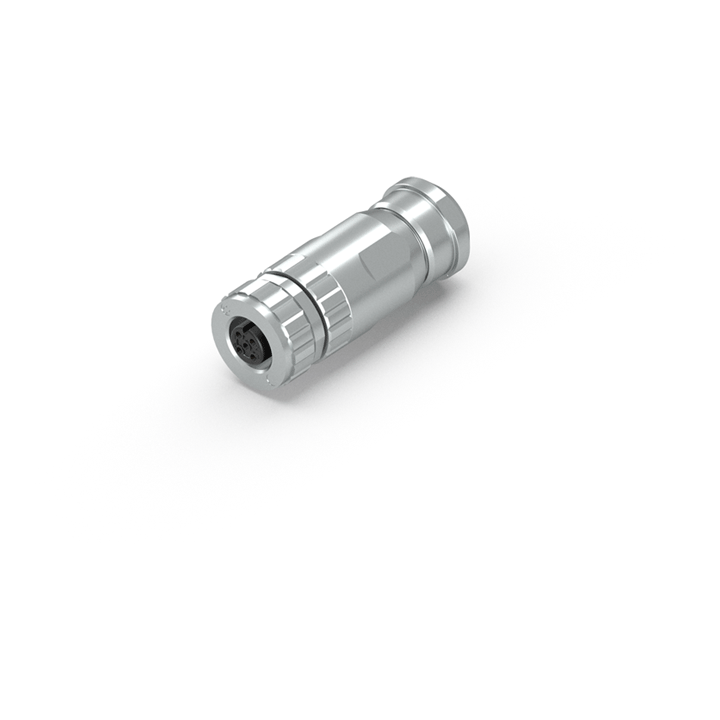

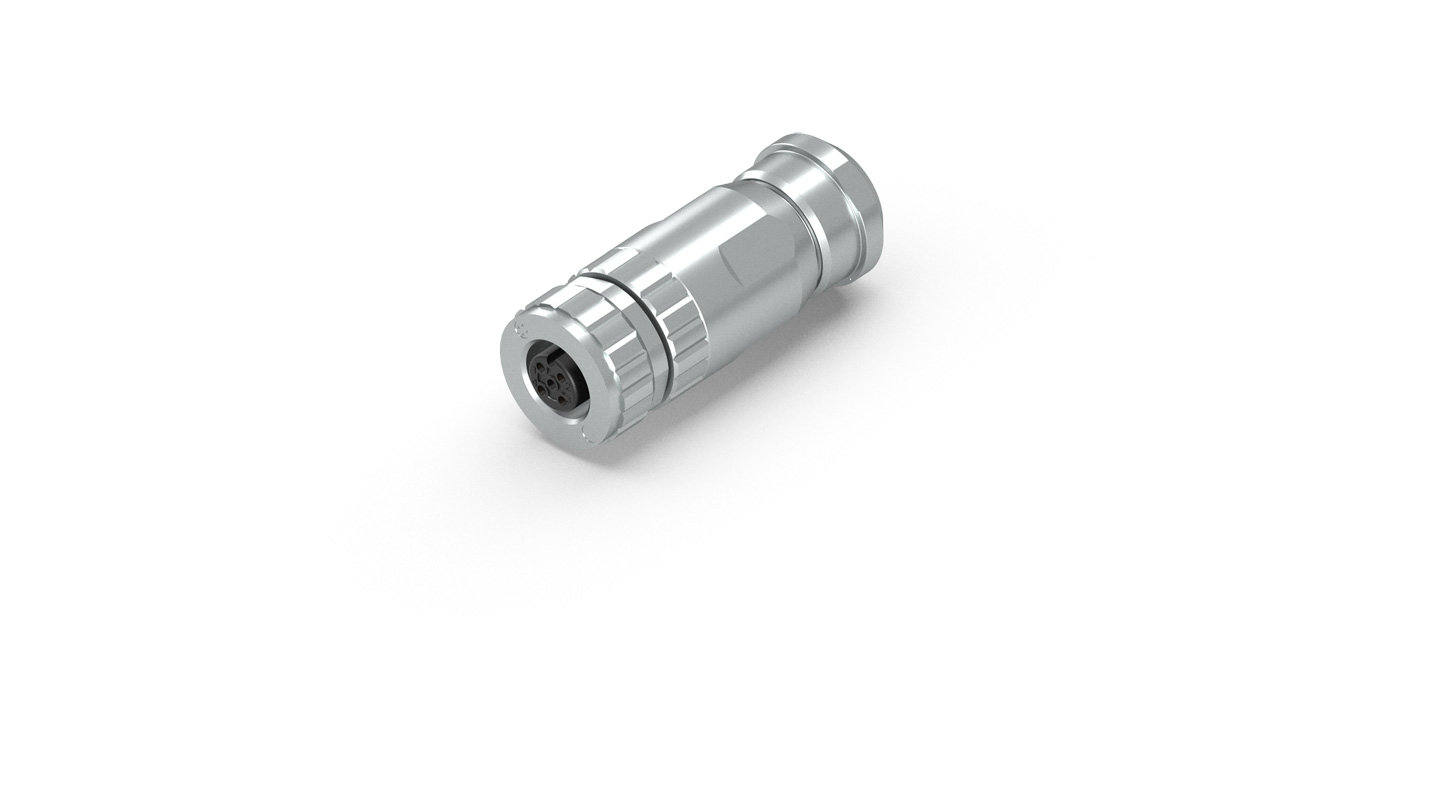

ZS2000-6720 | M12 socket field assembly, sensor, IP67, shielded
ZS2000-6720 | M12 socket field assembly, sensor, IP67, shielded
Product information
| Technical data | ZS2000-6720 |
|---|---|
| Shielding | yes |
| Installation size | M12 |
| Connector type | socket |
| Contact type | female |
| Number of positions (face) | 5-pin |
| Coding | A‑coded |
| Rated current | 4 A at 40°C (according to IEC 61076-2-101) |
| Rated voltage | 60 V (according to IEC 61076-2-101) |
| Recommended torque, nut | 0.6 Nm |
| Mating cycles | ≥ 100 (according to IEC 60512-9a) |
| Wire termination | screw connection |
| Max. wire cross-section | AWG16 (1.5 mm²) |
| Max. cable outer diameter | 4 - 8 mm |
| Material | metal |
For further technical details, please refer to the data sheet.

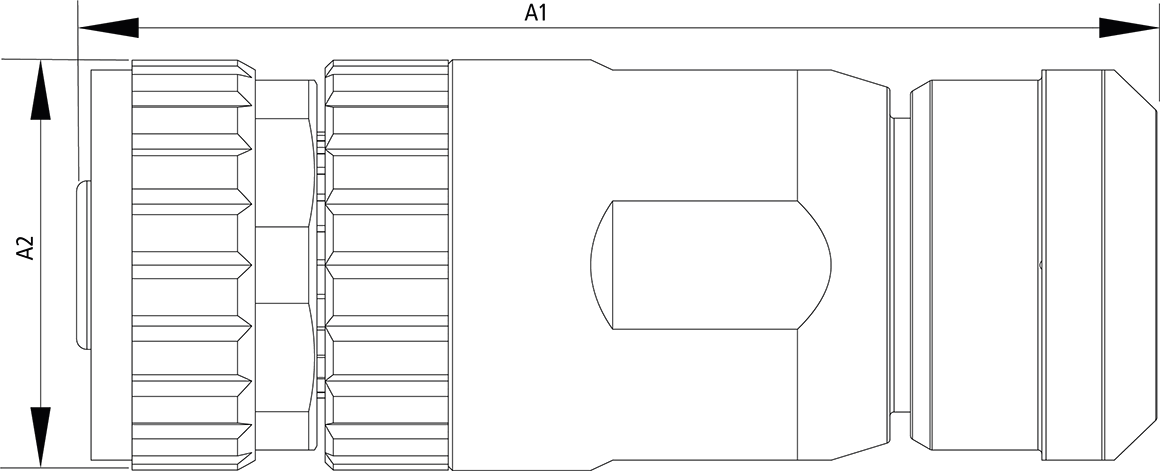

| A1 | 52.50 mm |
| A2 | Ø 20.00 mm |
| Ordering information | |
|---|---|
| ZS2000-6720 | Socket field assembly, Sensor, IP67, M12, straight, female, 5-pin, A-coded, shielded, 0.25…1.50 mm², Ø 4…8 mm, shielded |
