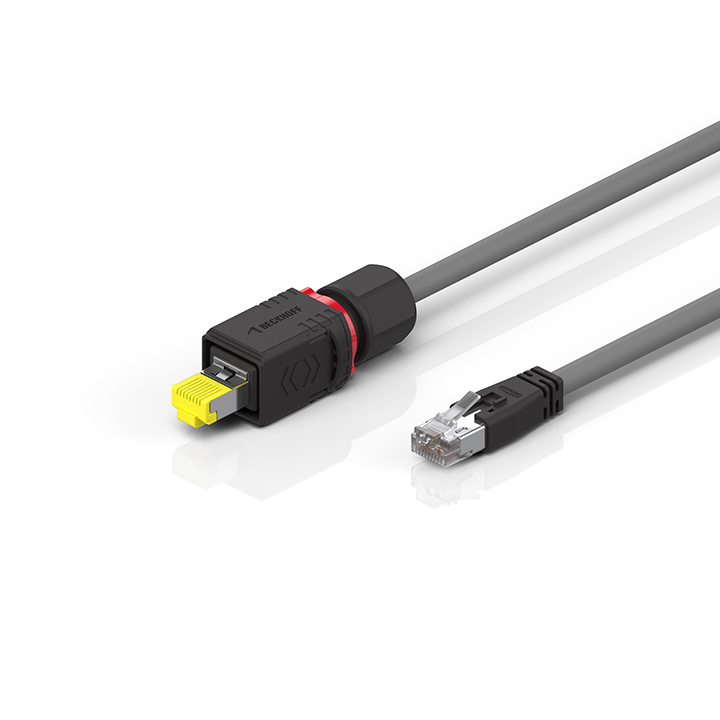

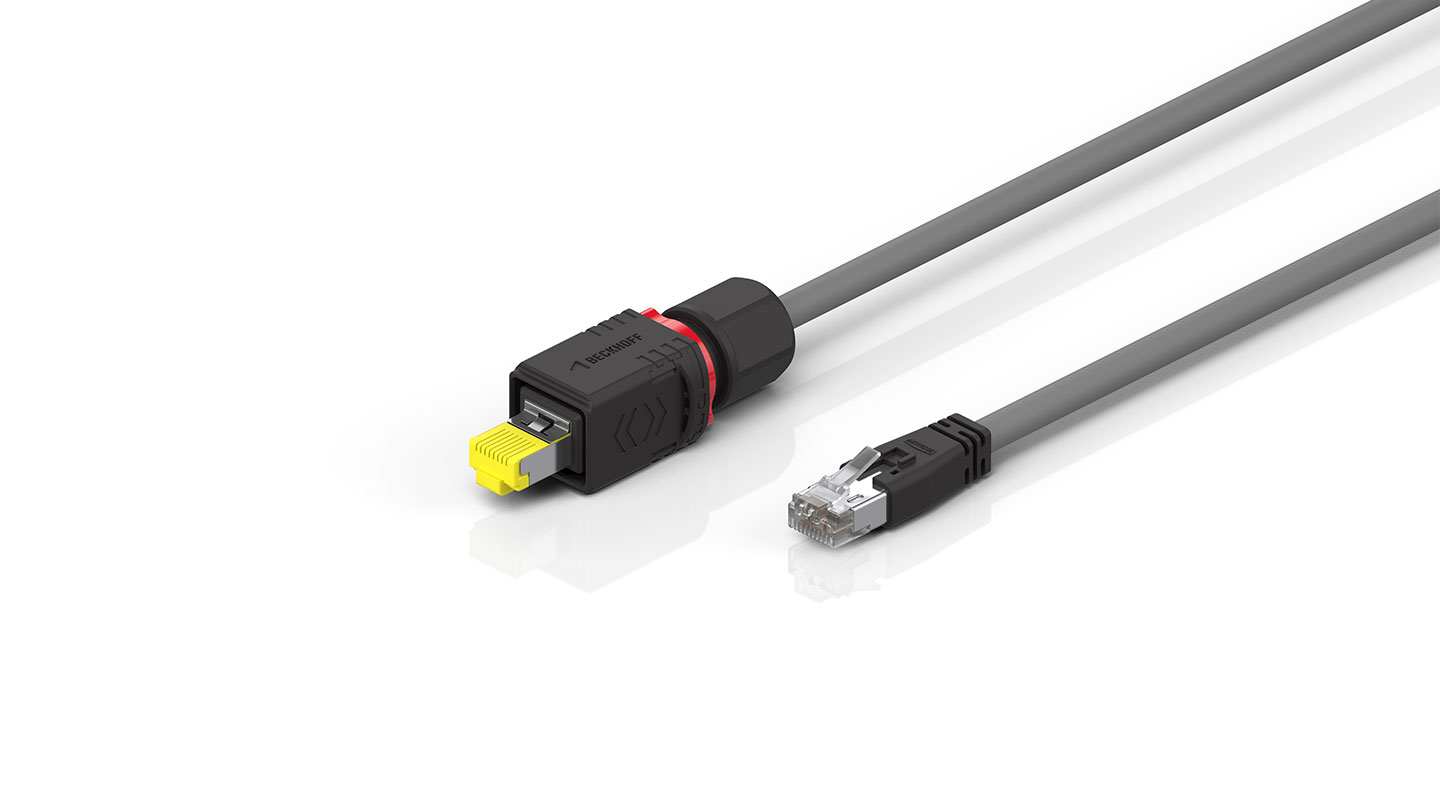

ZK2003-91D1-3xxx | Sensor, cable, shielded, PVC, 4 x 2 x AWG26, fixed installation, grey
ZK2003-91D1-3xxx | Sensor, cable, shielded, PVC, 4 x 2 x AWG26, fixed installation, grey
RJ45, plug, straight, IP20, 8-pin – Push-Pull V4, RJ45, plug, straight, IP65/67, 8-pin
Product status:
regular delivery
Product information
| Technical data | Head A |
|---|---|
| Shielding | yes |
| Installation size | RJ45, push-pull V4 |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 8-pin |
| Rated current | 1.3 A at 40°C |
| Rated voltage | 50 V AC/60 V DC |
| Mating cycles | ≥ 750 |
| Wire termination | IDC |
| Max. wire cross-section | AWG27 ... AWG22 (0.1 mm² ... 0.34 mm²) |
| Max. cable outer diameter | 4.5...10.0 mm |
| Technical data | Head B |
|---|---|
| Shielding | yes |
| Installation size | RJ45 |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 8-pin |
| Rated current | 1.3 A at 40°C |
| Rated voltage | 24 V |
| Mating cycles | ≥ 750 |
| Technical data | Cable by meter |
|---|---|
| Cross-section (Ethernet) | 4 x 2 x 0.14 mm² (AWG26) |
| Use | fixed installation |
| Material jacket | PVC (polyvinyl chloride) |
| Outer cable diameter | 6.2 mm ± 0.2mm (0.244" ± 0.0079") |
| Min. bending radius, moved | 15 x outer cable diameter |
| Min. bending radius, fixed installation | 7.5 x outer cable diameter |
| Jacket color | gray |
For further technical details, please refer to the data sheet.

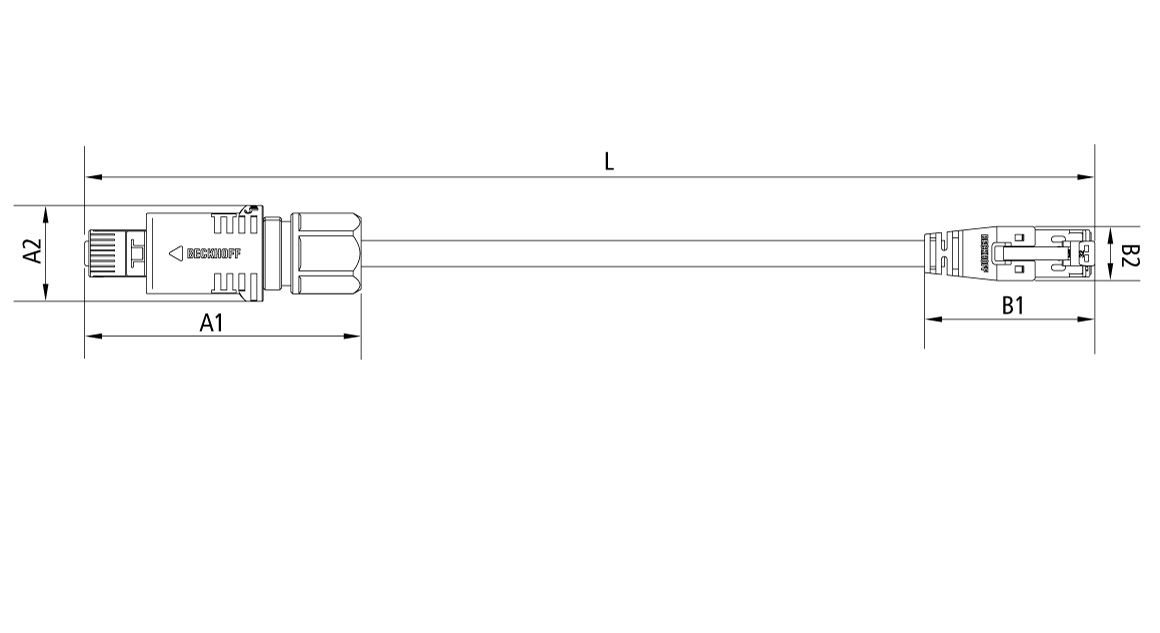

| A1 | 68.0 mm |
| A2 | 23.8 mm |
| A3 | 20.4 mm |
| B1 | 46.2 mm |
| B2 | 13.3 mm |
| Ordering information | Length |
|---|---|
| ZK2003-91D1-3005 | 0.50 m |
| ZK2003-91D1-3010 | 1.00 m |
| ZK2003-91D1-3015 | 1.50 m |
| ZK2003-91D1-3020 | 2.00 m |
| ZK2003-91D1-3025 | 2.50 m |
| ZK2003-91D1-3030 | 3.00 m |
| ZK2003-91D1-3040 | 4.00 m |
| ZK2003-91D1-3050 | 5.00 m |
Further length on request
