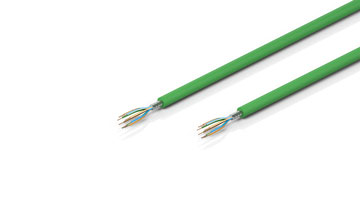

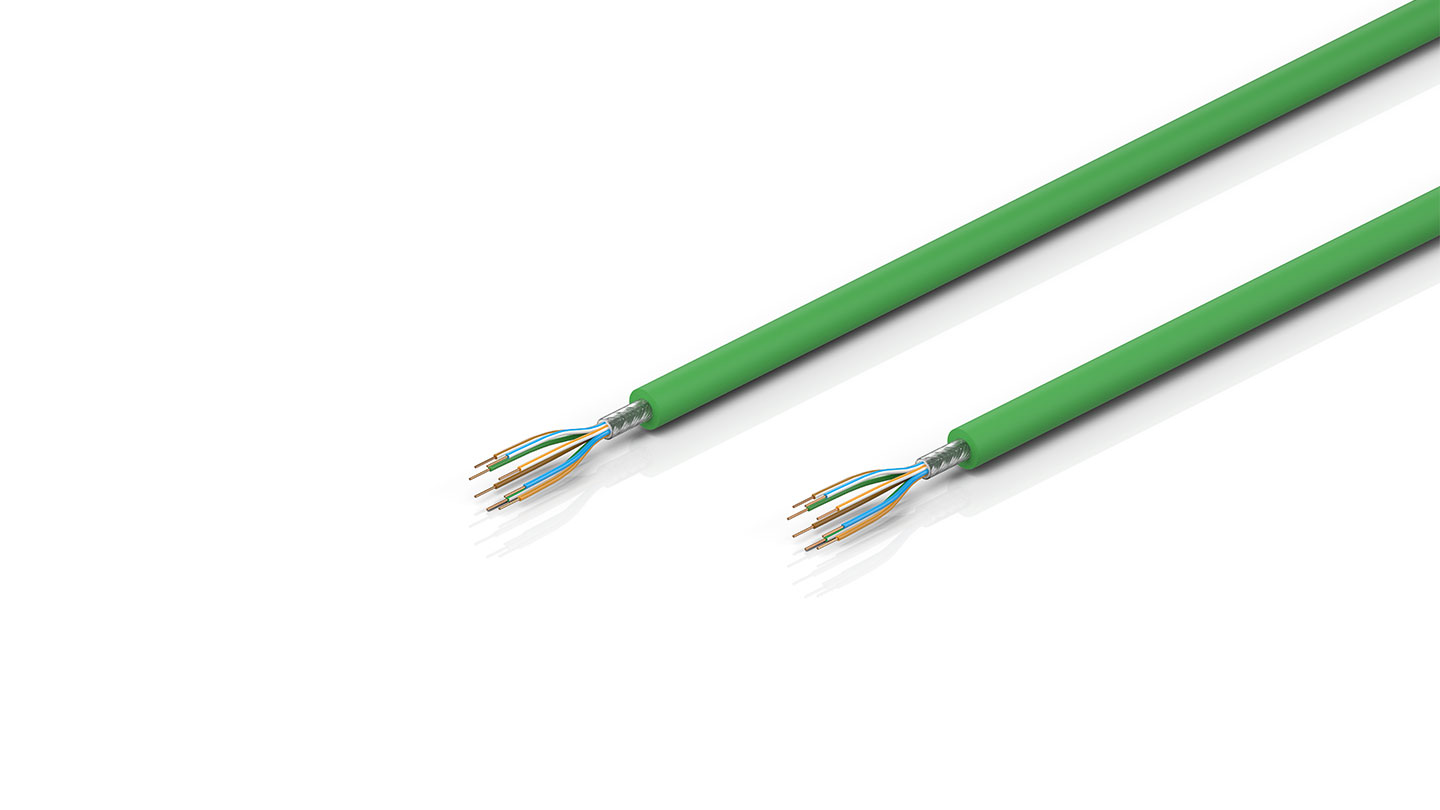

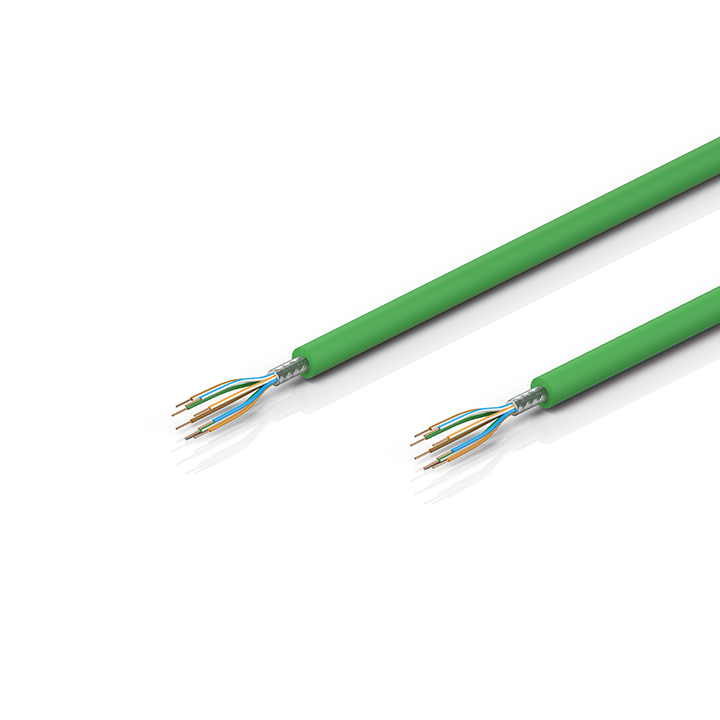

ZB9061-Rxxx | Industrial Ethernet/EtherCAT cable, SF/UTP, PUR, 4 x 2 x AWG26, drag-chain suitable, Cat.6, green
RJ45 connector overview
ZB9061-Rxxx | Industrial Ethernet/EtherCAT cable, SF/UTP, PUR, 4 x 2 x AWG26, drag-chain suitable, Cat.6, green
RJ45 connector overview
Product status:
regular delivery
Product information
| Technical data | ZB9061-Rxxx |
|---|---|
| Operating voltage | ≤ 125 V (peak value, not for high voltage purposes) |
| Cross-section (Ethernet) | 4 x 2 x 0.14 mm² (AWG26) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 7.80 ±0.20 mm |
| Min. bending radius, moved | 7.5 x outer cable diameter |
| Min. bending radius, fixed installation | 4 x outer cable diameter |
| Max. number of cycles | 1 million |
| Jacket color | green |
For further technical details, please refer to the data sheet.
| Ordering information | Length |
|---|---|
| ZB9061-R001 | 1000 m |
| ZB9061-R002 | 500 m |
| ZB9061-R003 | 305 m |
