主要功能
- 自动检测所支持的 EtherCAT 设备
- 显示故障代码和诊断代码（CoE 0x10F3）

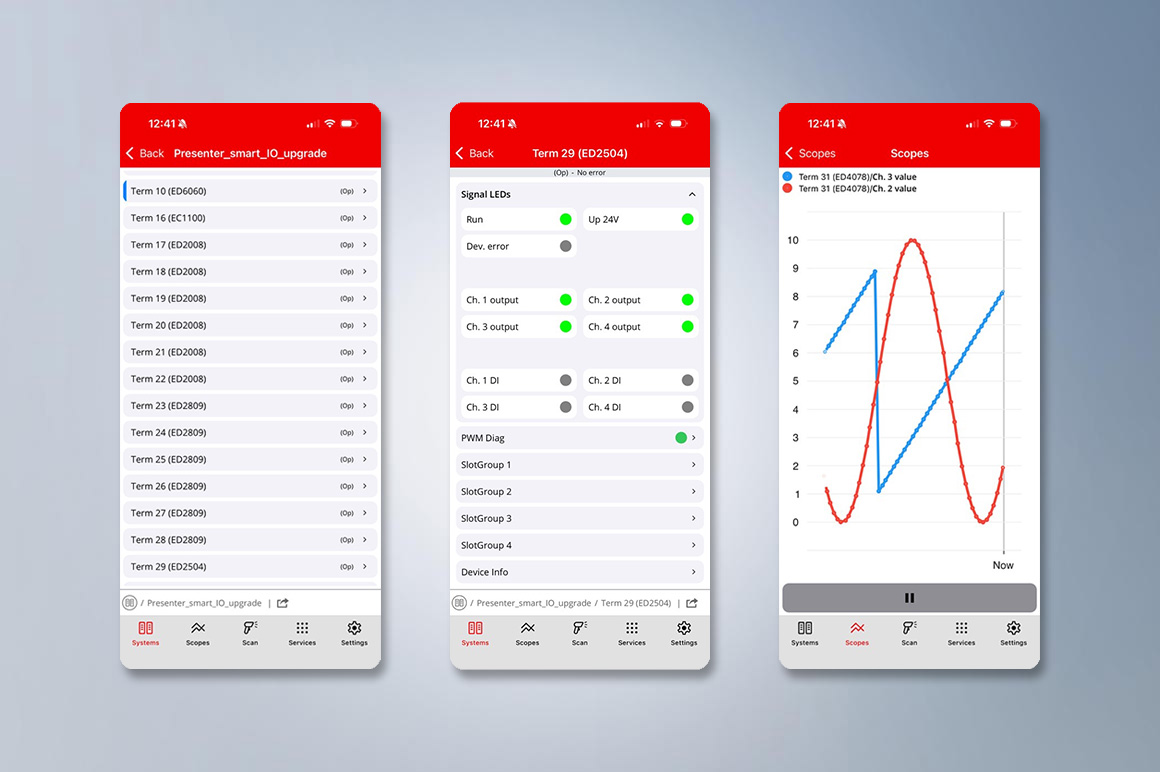

- 显示设备状态和实时信息
- 信号记录操作简便（示波）
- 只读访问，确保最高安全性
应用领域
- 现场服务
- 客户支持
- 设备测试和排障
- 现场移动诊断
- 对 TwinCAT 开发工具的补充
诊断网关

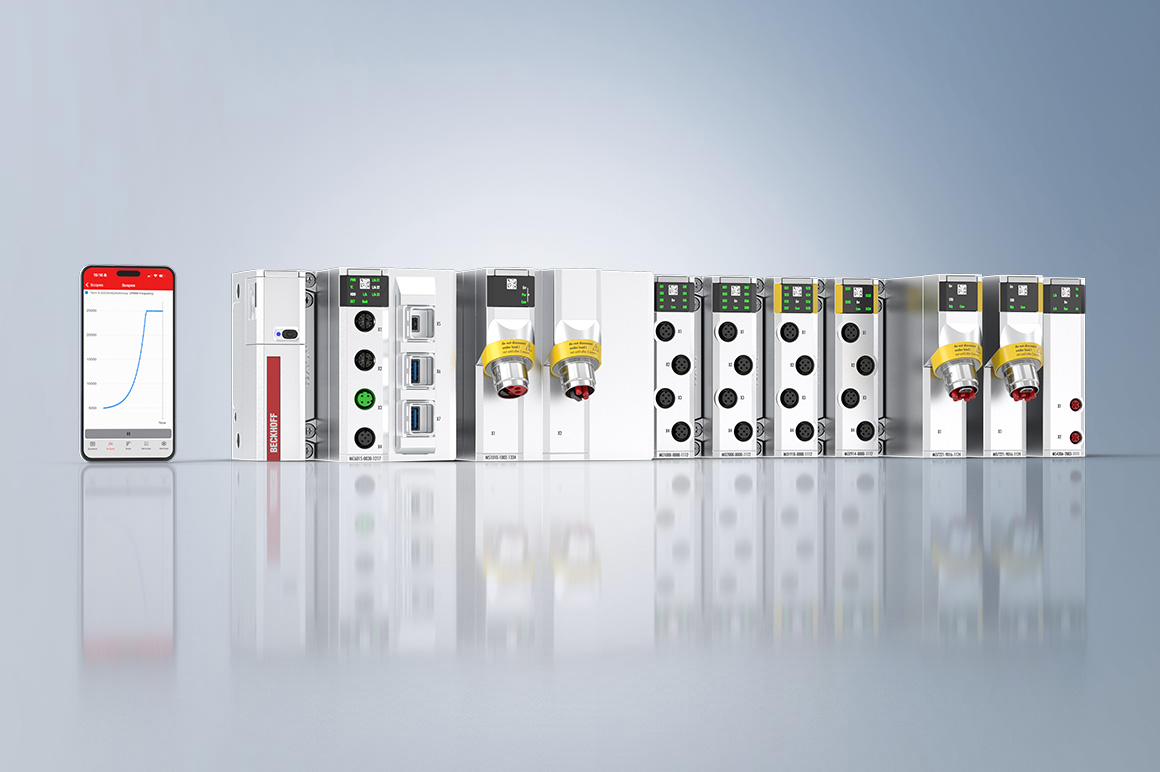

MA6060-0000-0000 | Dongle for diagnostic app
The MA6060 dongle serves as a diagnostic interface between a baseplate and compatible devices such as smartphones or tablets. It enables live transmission of selected diagnostic data from modules connected to the baseplate. Relevant diagnostic data such as the status of the LEDs is displayed, along with selected process data including analog values (4–20 mA) from a pressure sensor or the measured temperature from a Pt100.

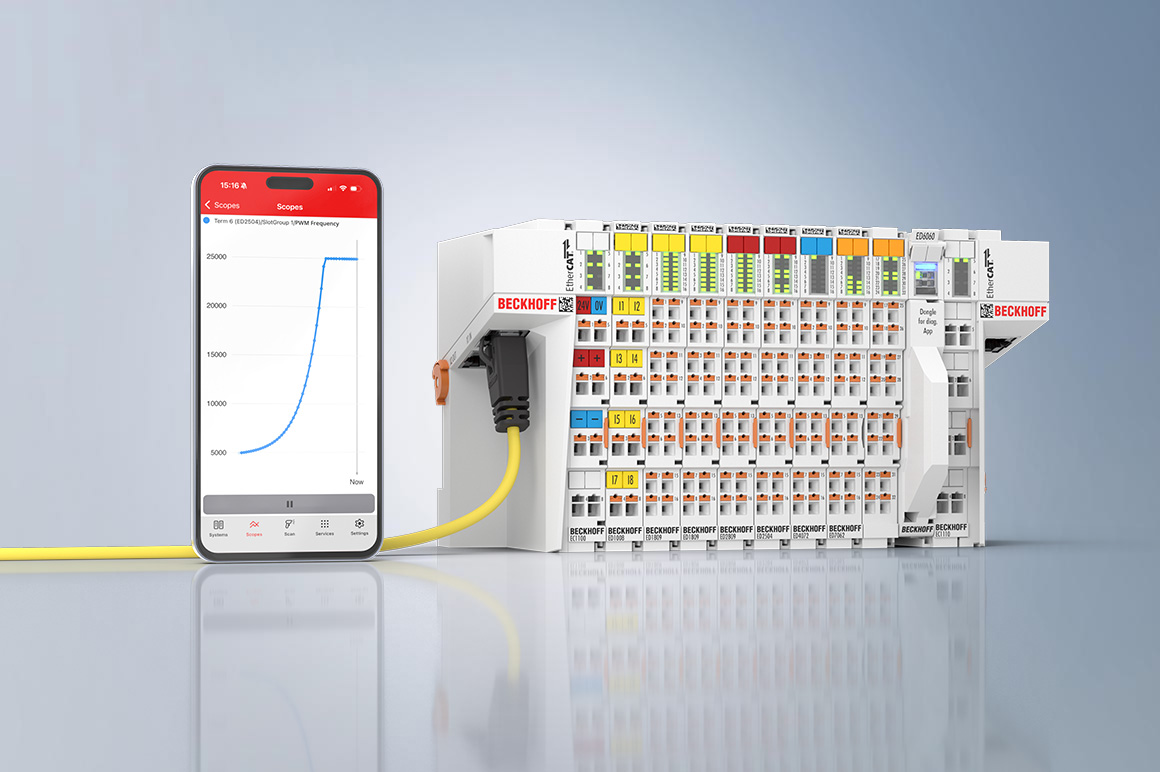

ED6060 | EtherCAT Terminal, communication interface, for diagnostic app
The ED6060 EtherCAT Terminal serves as a diagnostic interface between an EtherCAT master and compatible devices such as smartphones or tablets. It enables the live transmission of selected diagnostic data from supported EtherCAT devices connected to the EtherCAT master. Relevant diagnostic data such as the status of the LEDs is displayed, along with selected process data including analog values (4–20 mA) from a pressure sensor or the measured temperature from a Pt100. Only one ED6060 is required per EtherCAT segment.
