TwinCAT 3 Redundancy

软件解决方案助力提高设备可靠性

TwinCAT 3 Redundancy

本例的控制器冗余方案,其冗余操作可用来提高设备的可靠性。
本例的控制器冗余方案,其冗余操作可用来提高设备的可靠性。

冗余在灵敏度控制和通信过程中尤为重要。通过在自动化系统中建立冗余,可以提高设备的可靠性。当某个组件出现故障时,冗余组件将接管操作,确保生产的正常进行。因此,当这种情况发生时,不仅需要可靠地切换组件,同时也需要有相应的诊断功能,这是修复故障组件的唯一办法。

TwinCAT 3 冗余解决方案覆盖不同应用领域,可以保障控制和通信过程安全,从而提高设备的可靠性。

用于冗余系统解决方案的倍福软件

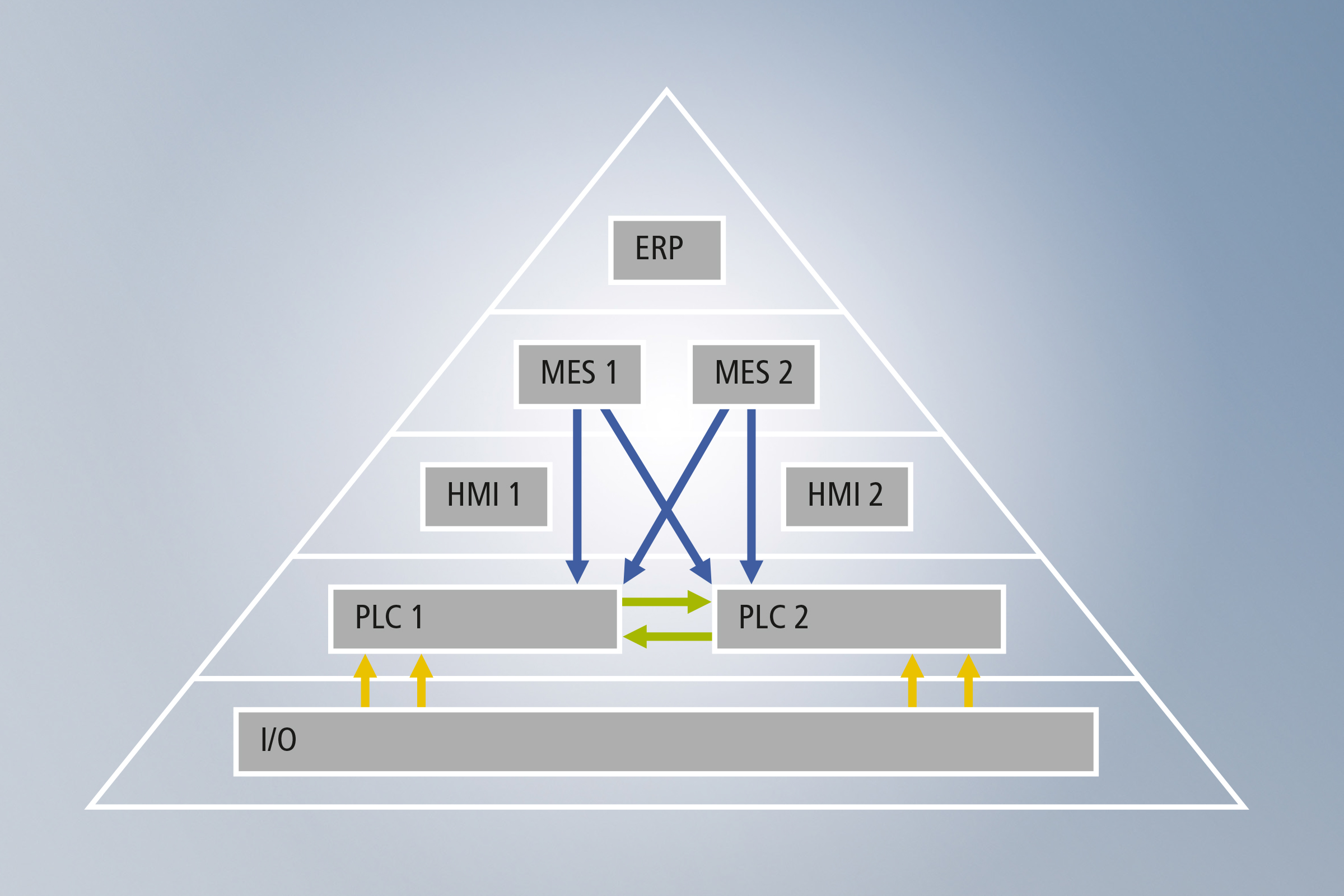

TwinCAT 3 Redundancy 能够提高设备可靠性,有三种不同产品可用于满足不同的任务需求。这三种产品的排列示意请见右边的自动化金字塔结构图。

TwinCAT 3 EtherCAT Redundancy 能够实现现场总线层的冗余连接,以便于实现与 I/O 层的冗余通信。TwinCAT 3 Parallel Redundancy Protocol(PRP)协议既可用于 MES(制造执行系统)层,也可用于实现不同系统之间的横向通信。TwinCAT 3 Controller Redundancy 是一个能够提高 PLC 本身可靠性的新功能。

实现控制器和现场总线之间的冗余通信

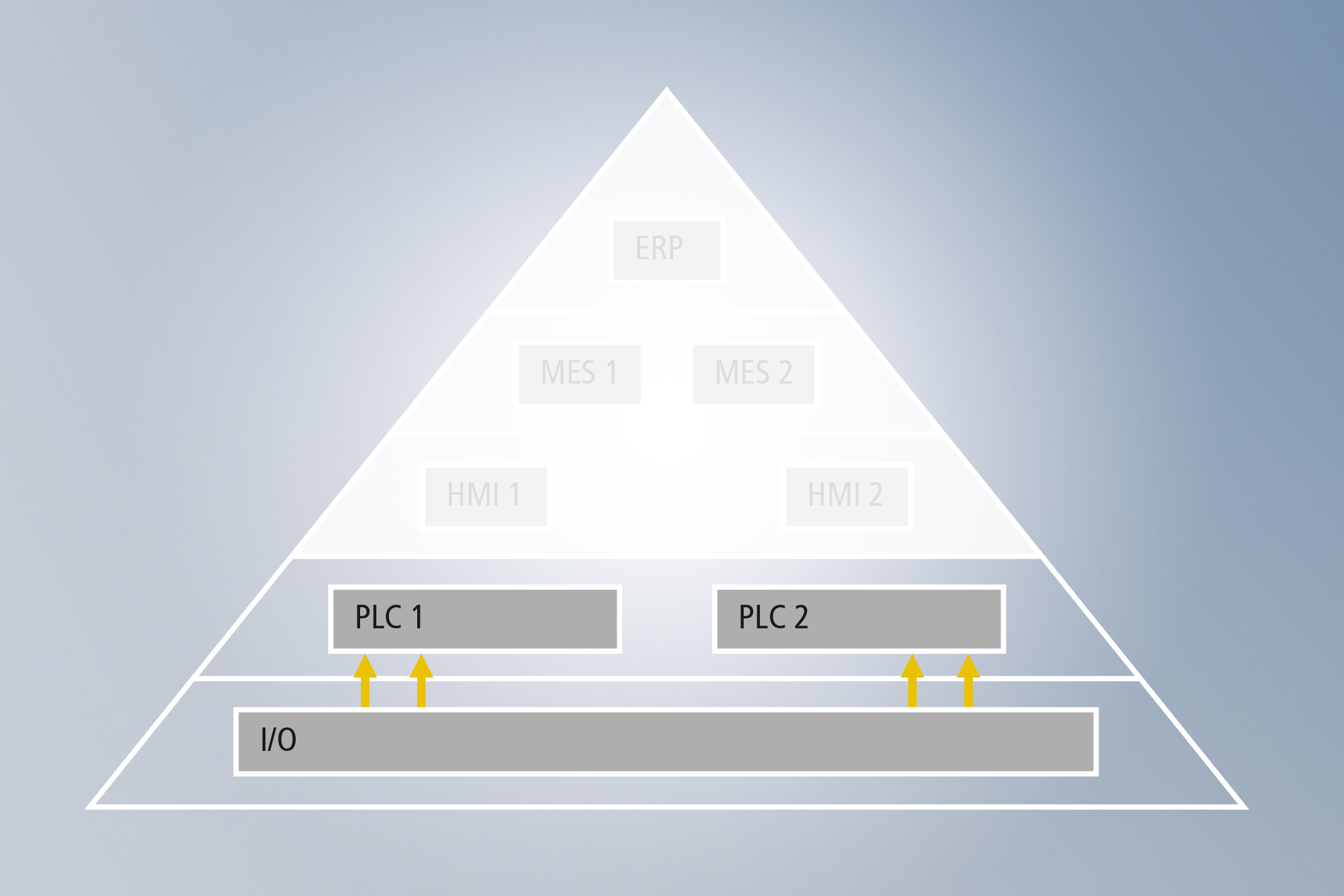

TF6220 TwinCAT 3 EtherCAT Redundancy 能够实现电缆冗余。为此,在最后一个 EtherCAT 从站与主站之间额外建立一个电缆连接。在电缆出现断裂时,可以通过备用连接无缝发送报文。

实现与上位系统的冗余通信

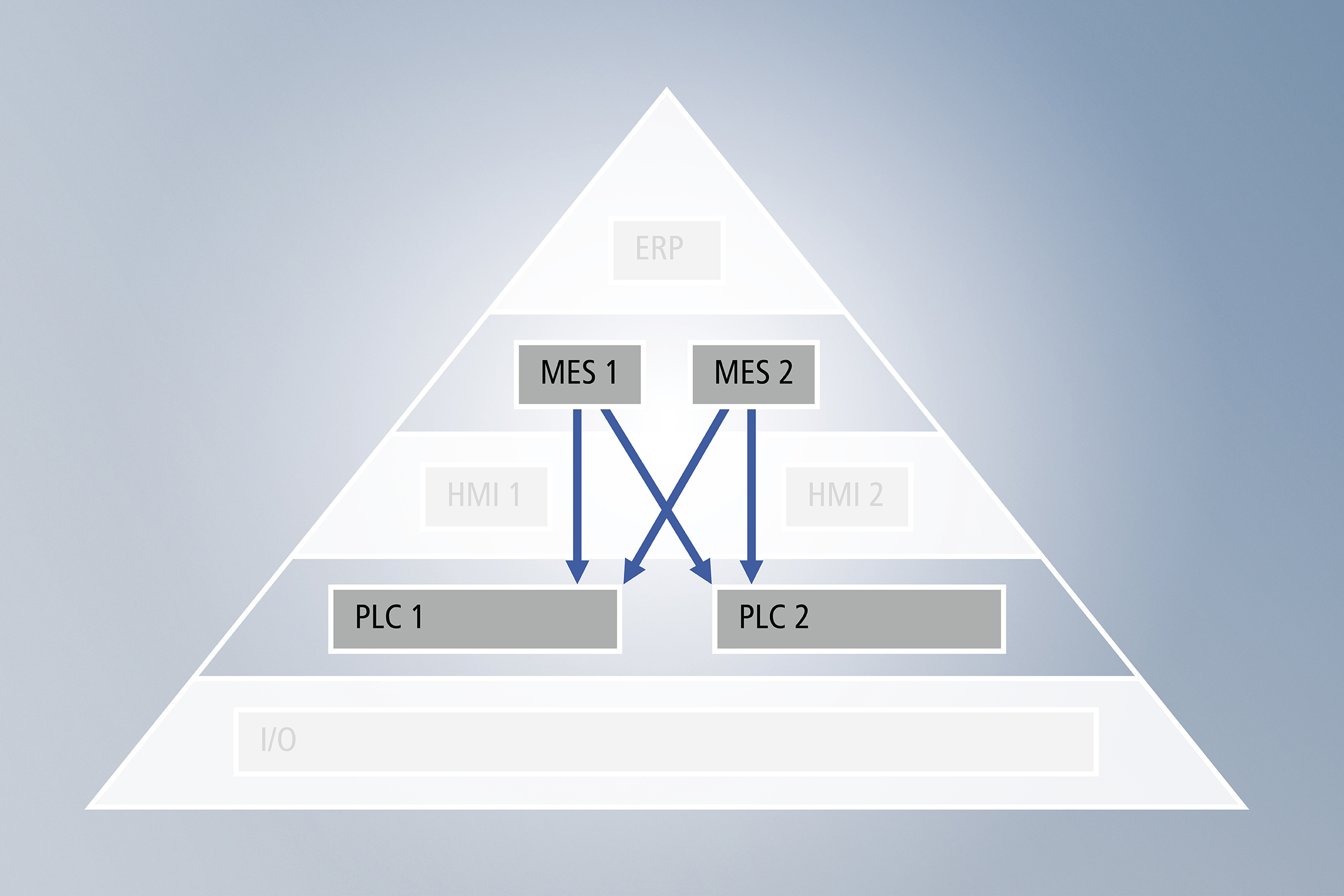

TF6230 TwinCAT 3 Parallel Redundancy Protocol 能够实现符合 IEC 62439-3 标准的网络通信,它可以被不同的应用程序(既可以是实时应用程序,也可以是操作系统应用程序)透明地使用。为了提高设备的整体可靠性,接口在网络连接方面采用了冗余设计。

冗余的控制器操作

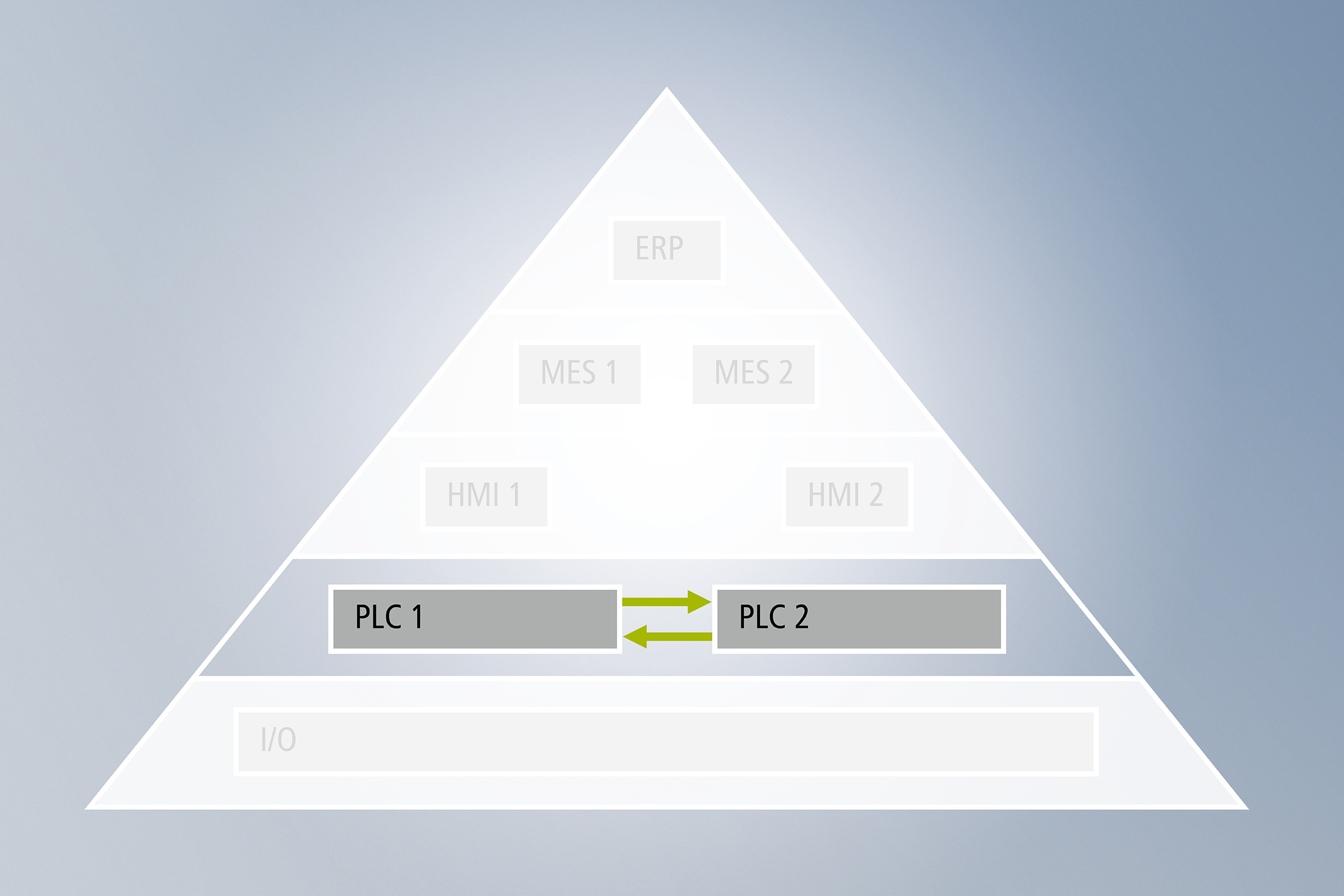

TF1100 TwinCAT 3 Controller Redundancy 提供一个能够在两台工业 PC 上对 TwinCAT 3 PLC 程序进行冗余处理的扩展功能,可显著提高控制过程的可靠性。

产品

TF1100 | TwinCAT 3 Controller Redundancy

TF1100 | TwinCAT 3 Controller Redundancy

TwinCAT 3 Controller Redundancy provides an extension to enable redundant processing of TwinCAT 3 PLC programs on two industrial PCs and increases availability in the process.

TF6220 | TwinCAT 3 EtherCAT Redundancy 250

TF6220 | TwinCAT 3 EtherCAT Redundancy 250

The EtherCAT technology enables the realization of cable redundancy. For this purpose, an additional cable connection is established from the last EtherCAT slave to the master. In the event of a cable breakage, the telegrams are sent seamlessly via the alternative connection.

TF6230 | TwinCAT 3 Parallel Redundancy Protocol (PRP)

TF6230 | TwinCAT 3 Parallel Redundancy Protocol (PRP)

The TwinCAT 3 Parallel Redundancy Protocol provides a network connection according to IEC 62439-3 that can be used transparently by applications. This can be used both from real time and from operating system applications. The interface is designed with redundancy on the network side in the interests of higher availability overall.
