TwinCAT CNC HMI for CNC-specific user interfaces

TwinCAT CNC HMI combines machine operation, real-time visualization, and engineering in a single, open, PC-based platform. This solution offers machine operators a modern, intuitive user interface and allows machine builders to flexibly implement their own processes, functions, and designs. TF2000 TwinCAT HMI, which the CNC HMI builds on, serves as the technological foundation.

Intuitive operation

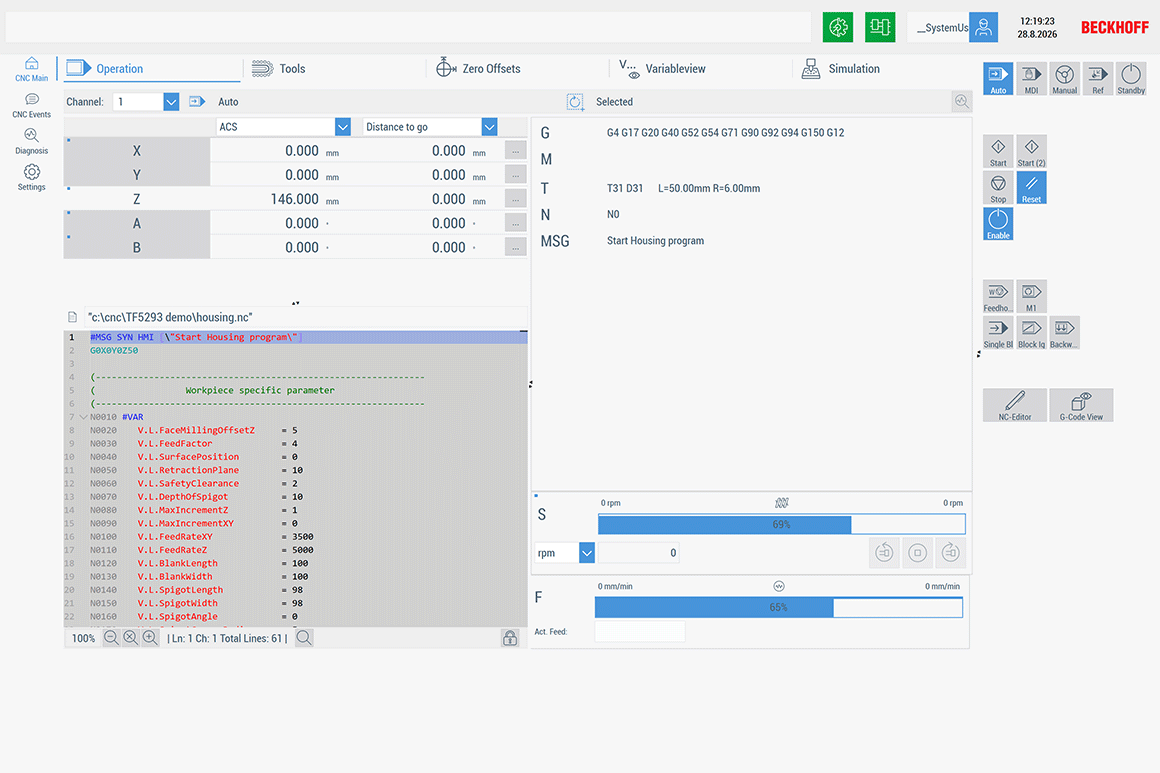

TwinCAT CNC HMI provides CNC-specific control and display elements for day-to-day work on the machine tool. The intuitive user interface supports fast and secure operation.

• axis displays, screw and speed overrides, and jog and inching functions

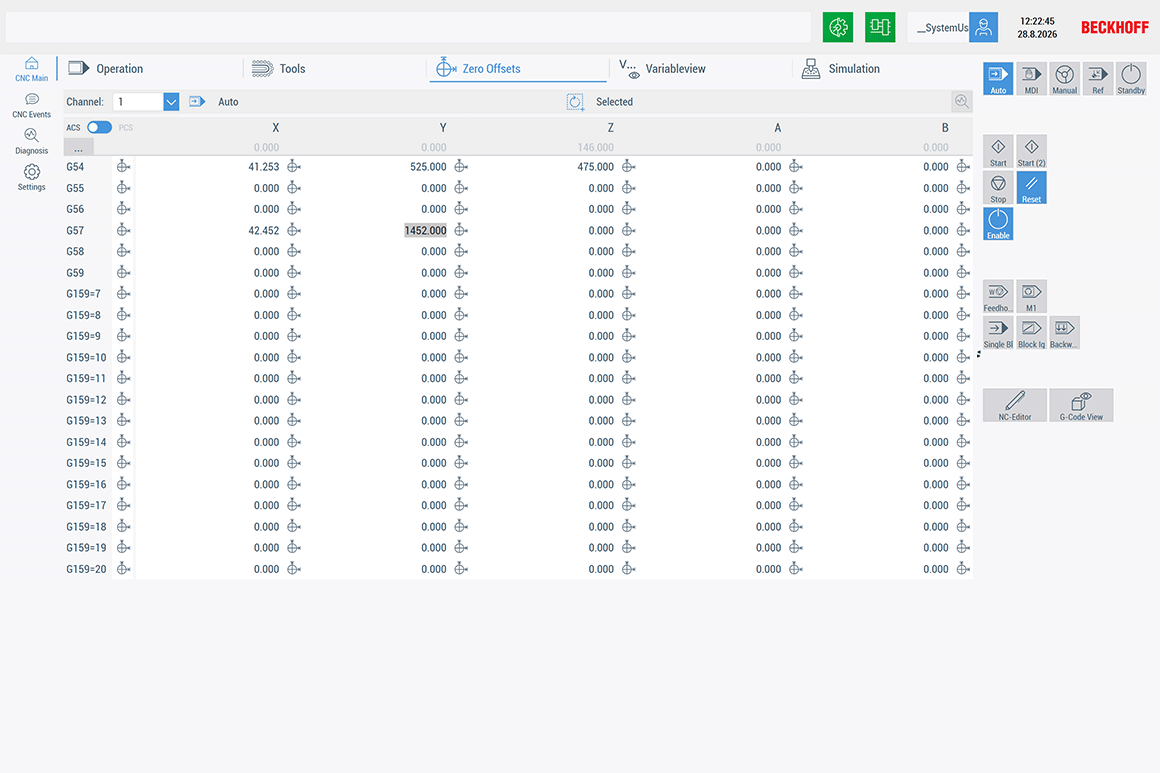

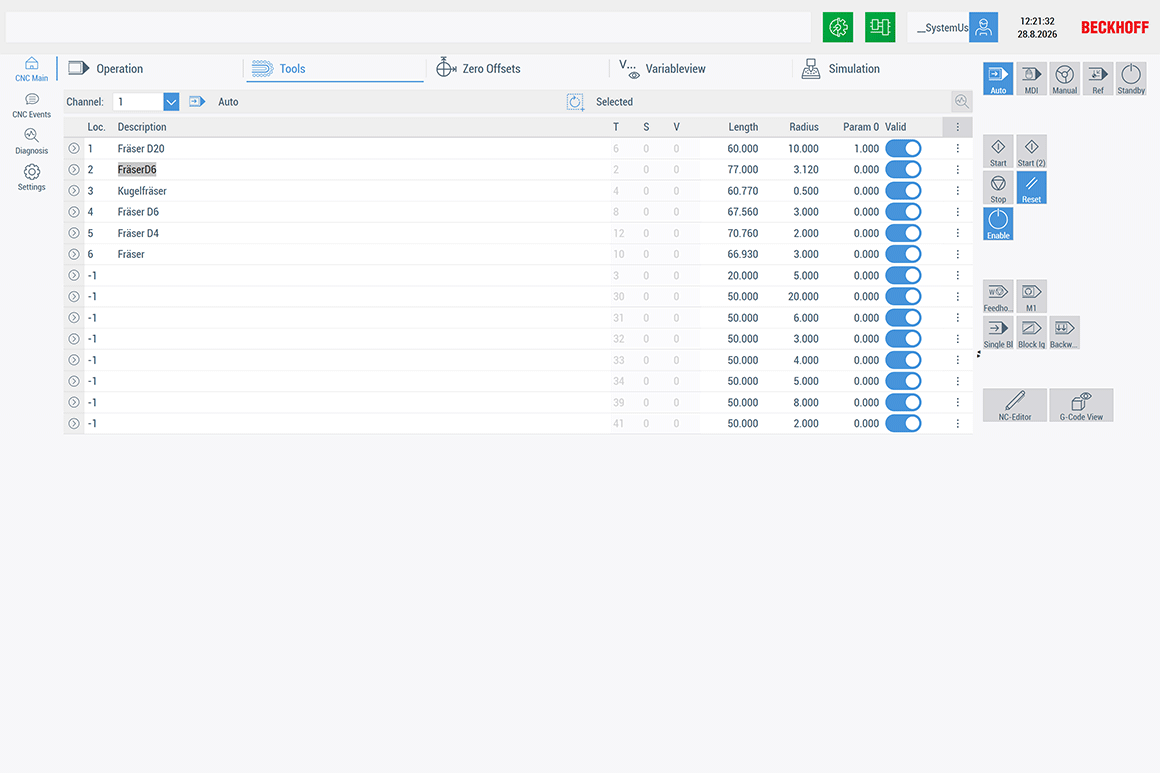

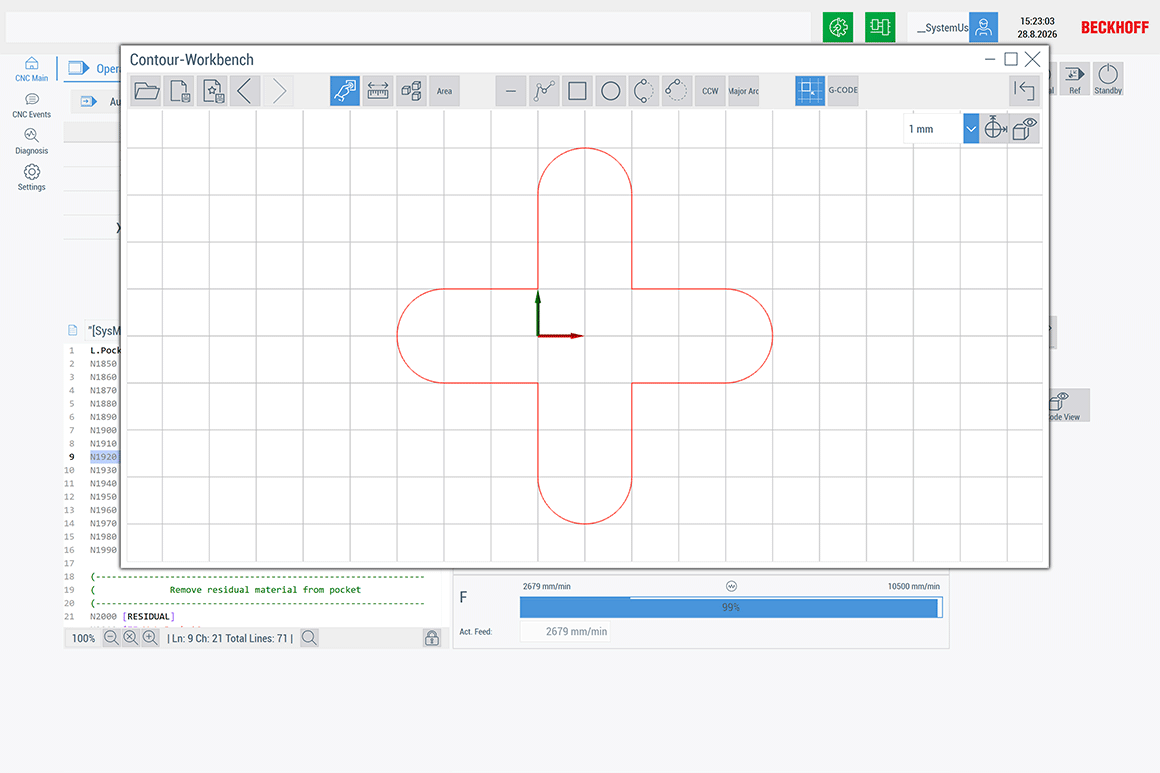

• direct access to tool data, zero offset shifts, and the contour editor

Real-time visualization

Relevant machine and process data is clearly presented, which is useful for monitoring machining operations and quickly gathering information. CNC, PLC, and HMI are integrated into a unified PC-based platform, combining machine operation, real-time visualization, and engineering into a single system.

• relevant information available right at the machine
• seamless integration of CNC, PLC, and HMI

Simulation

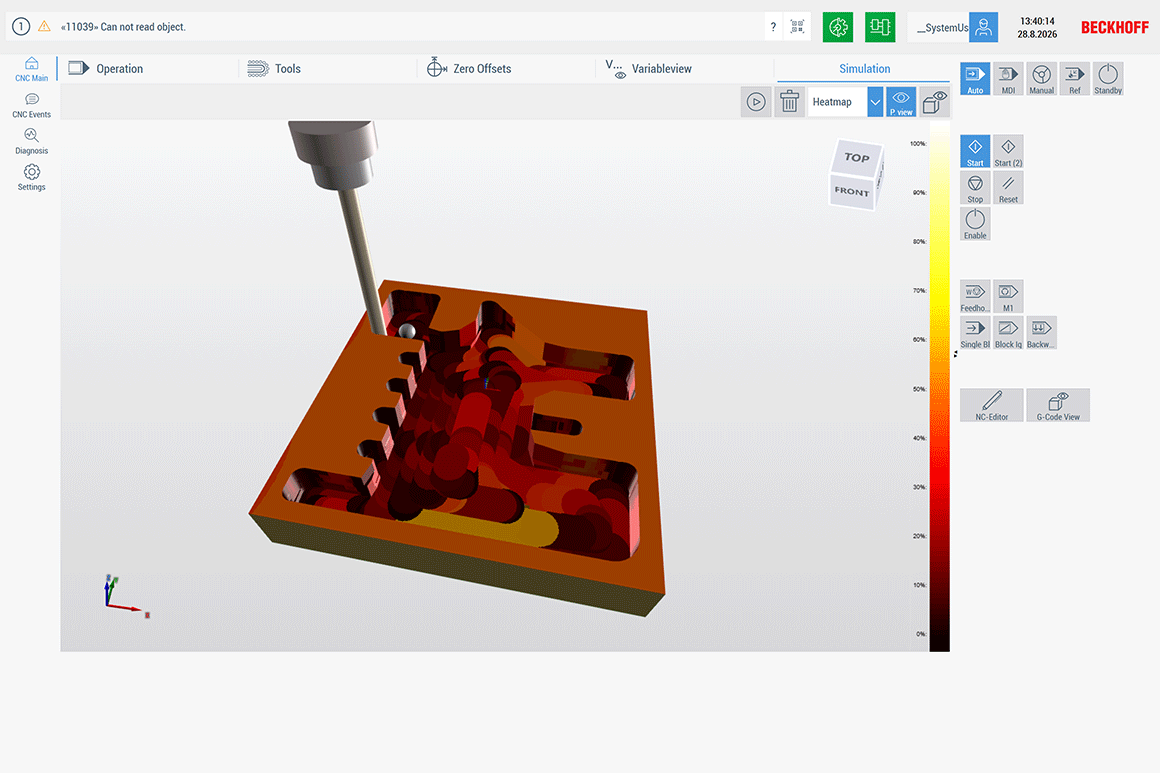

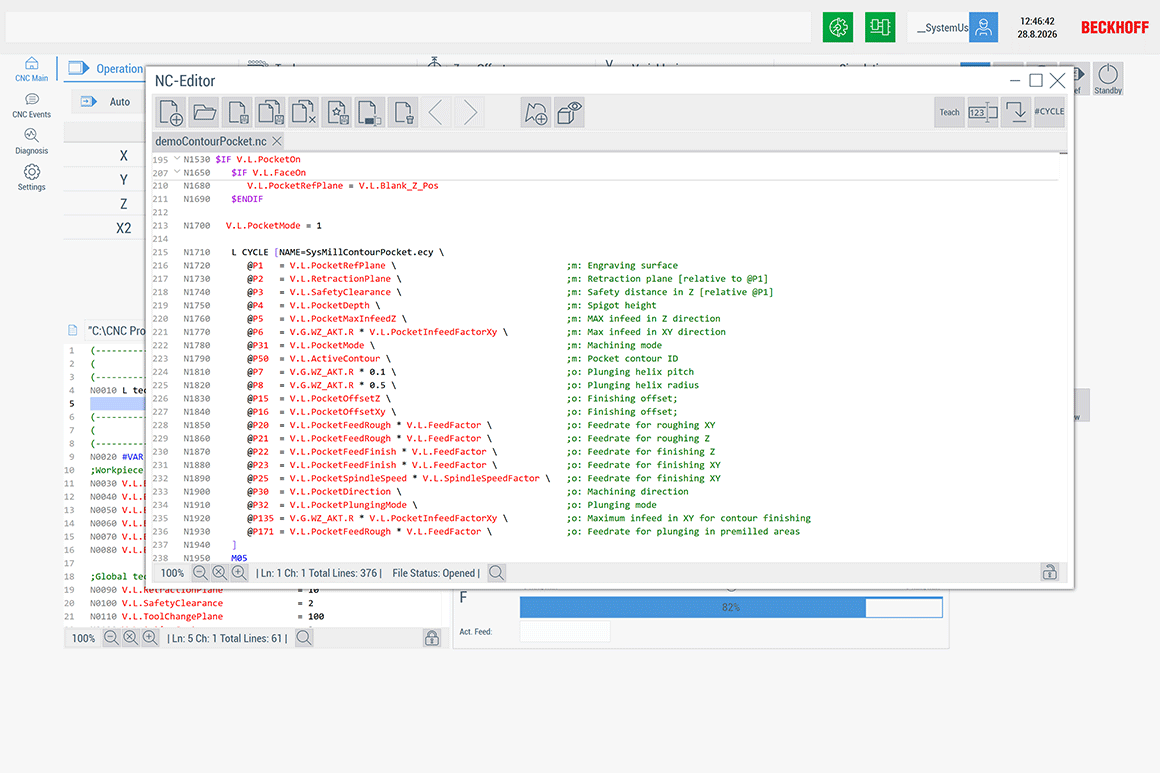

The built-in G-Code editor supports cycle-based CNC programming. The TwinCAT CNC HMI Simulation Server visualizes machining processes in three dimensions based on real-time data.

• visually check NC programs in fast-forward mode
• display machining operations in sync with the actual machine
• supports 3- and 5-axis milling processes

Flexible design options

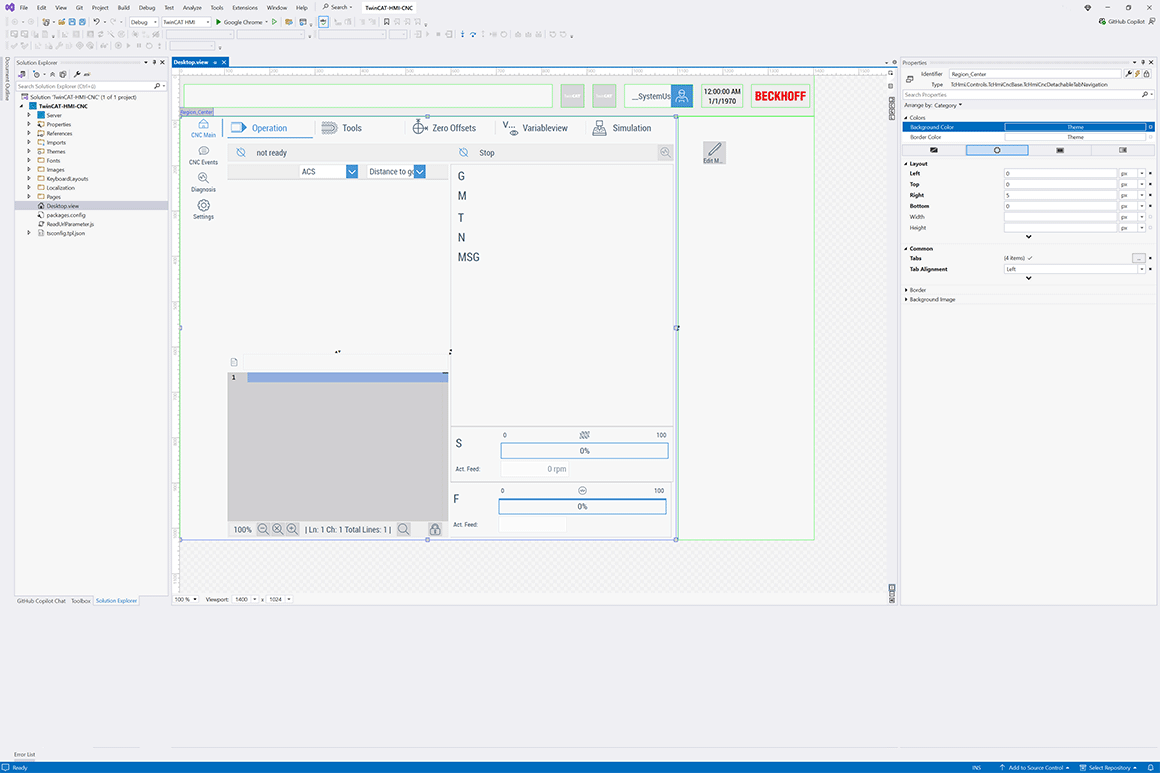

Preconfigured templates make it easier to get started and reduce the engineering work involved. The open TwinCAT platform offers a high degree of flexibility for custom machine designs and processes.

• flexibly customize user interfaces, layouts, and functions
• easily integrate existing expertise and in-house functions
• design modern HMIs that reduce the operator’s workload and differentiate machine concepts
